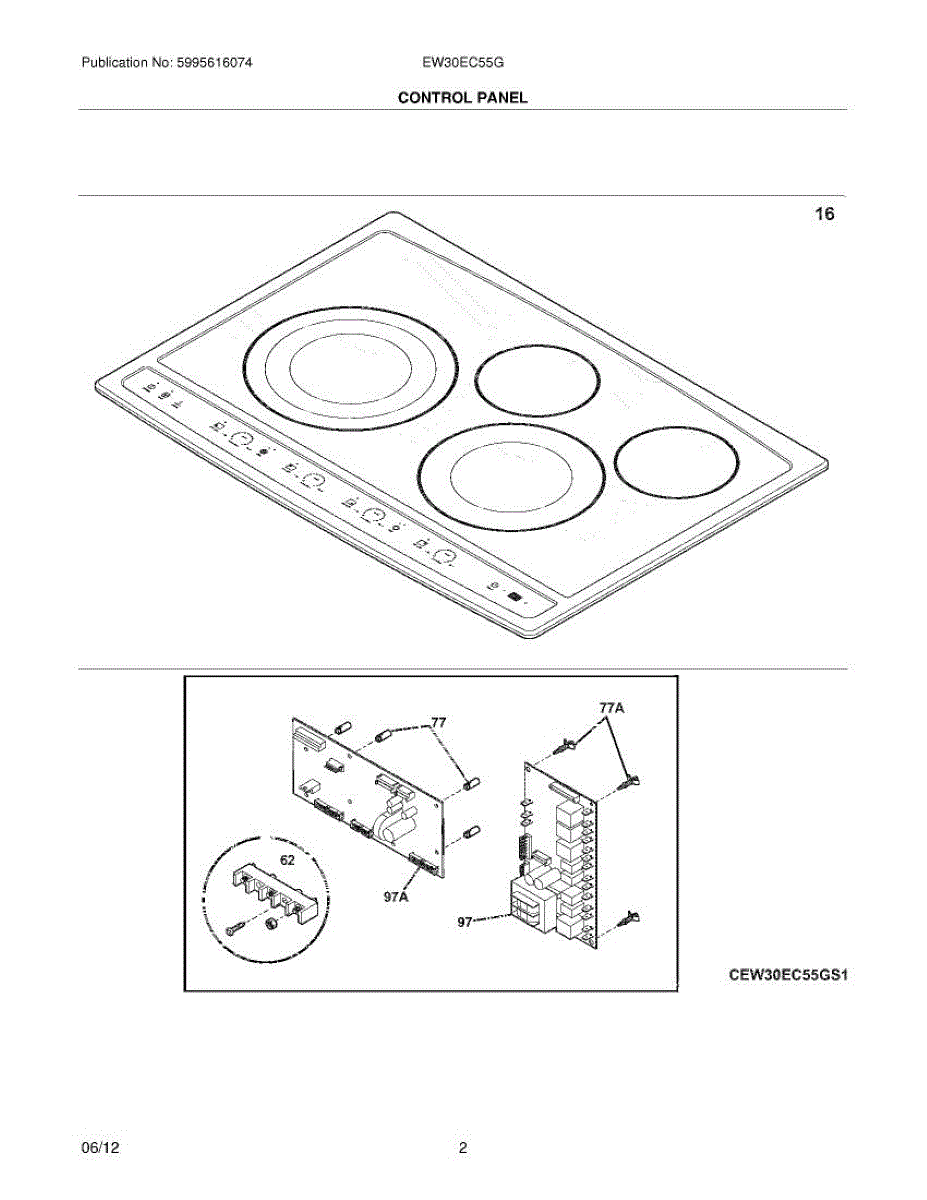

Parts for Electrolux EW30EC55GW2: 03 - Controls Parts

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This main electronic control board regulates the refrigerator's core functions so the unit runs reliably. Replacing a failed control board restores electronic control over cooling, defrost cycles, lights and user interface responses. What it does:

• Manages compressor and fan operation to control temperature
• Runs automatic defrost and associated heater timing
• Powers/display and processes user inputs for settings and diagnostics
• Coordinates dispenser, lights and other electrically controlled features
• Can stop erratic or intermittent operation caused by a faulty control board

• Disconnect power to the appliance before starting work to avoid shock
• Handle the board carefully and avoid touching contacts; use anti-static precautions if available
• Verify connector alignment and secure all wiring harnesses during reassembly

Specs: 10-32 X 0.375

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application
