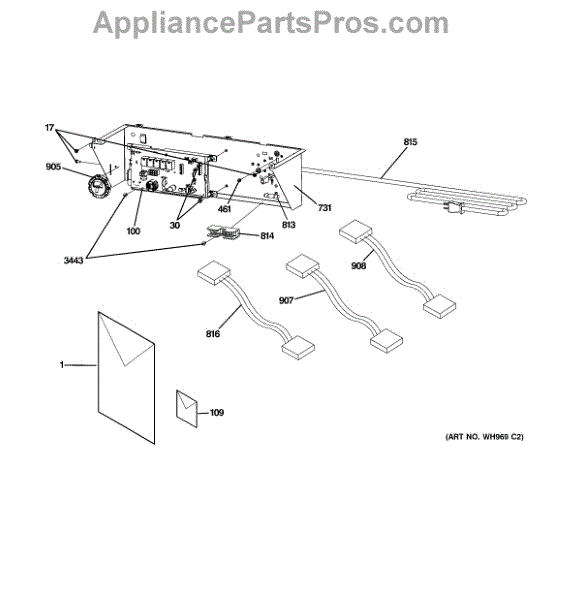

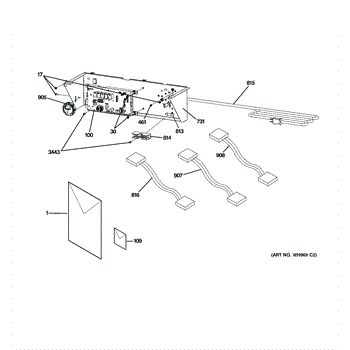

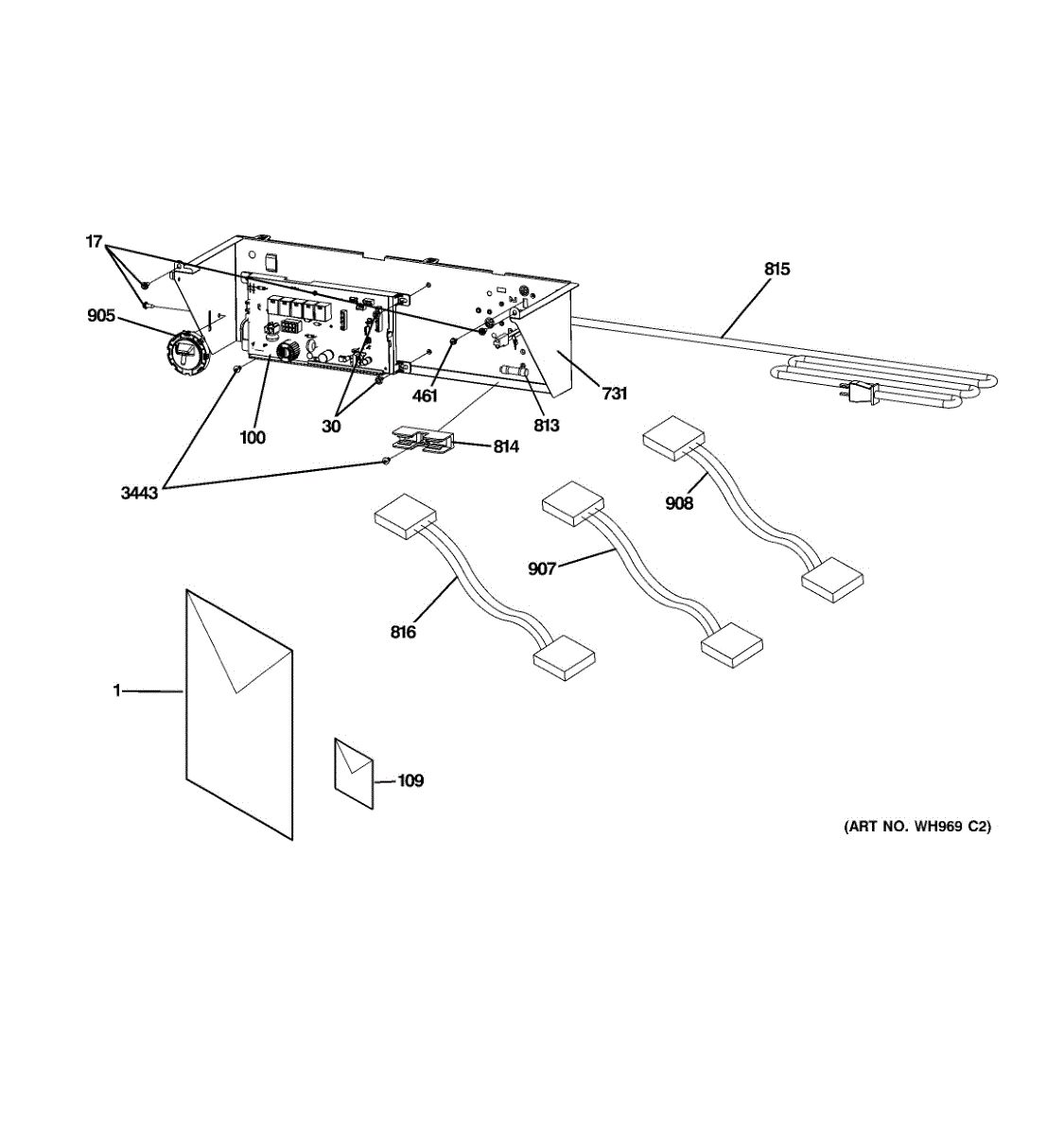

Parts for Ge GTUN275EM1WW: 01 - Controls Parts

Size: 8 - 18 ab.

This is a replacement 8-32 trilobular hex screw used to fasten appliance panels and components. It restores secure mounting and helps eliminate loose parts or rattling caused by missing or worn fasteners. What it does:

• Secures panels, brackets, or components in place using an 8-32 trilobular thread form
• Helps prevent vibration, rattling, and loose connections when fasteners are missing or stripped
• Designed to match OEM thread style for proper engagement and retention
• Used wherever a small hex-head machine screw is required for assembly

• Use the correct driver/socket to avoid rounding the hex head
• Tighten to snug fit; avoid over-torquing which can strip threads or damage parts
• If replacing a stripped hole, inspect mating threads and consider a thread repair or alternate fastening method
• Disconnect power to the appliance before accessing internal components to reduce risk of shock or injury

This electronic control board is the main control module that manages timing and function signals for the appliance, restoring proper control when the original board has failed. It replaces a damaged or non-responsive control module to bring back normal operation. What it does:

• Controls user interface signals, cycle timing, and electrical outputs for other components
• Can resolve intermittent starts, failure to start, or failure to advance cycles when board is the root cause
• Routes power and command signals between sensors, switches, and motors

• One electronic control board

• Disconnect power to the appliance before starting any work to avoid shock or damage
• Handle the board carefully and avoid touching components; use anti-static precautions if available
• Verify the part number on your existing board matches before installing; do not force connectors

This electronic control board manages the washer's core cycles and settings. When it fails, the machine may not start, respond to inputs, or complete cycles reliably. Replacing it restores proper control of wash operations.

• Directs cycle selection, timing, and motor/valve operations
• Can lead to erratic behavior such as random stopping or incorrect cycle progression
• Intermittent or dead display/indicator response can also indicate a failed board

• Disconnect power before servicing; verify capacitor discharge where applicable
• Handle the board by edges; avoid static damage by using ESD precautions
• Transfer any connectors exactly by position; label wires as needed
• After installation, run a test cycle

Size: 8-32 t. Includes 12 screws.

This CCMR 30-amp, 120-volt fuse protects the appliance's electrical circuit by opening when current exceeds safe limits. Replace a blown fuse to restore power to the affected circuit and help prevent damage to internal components.

• Provides overcurrent protection for the circuit specified by the manufacturer
• If the fuse is open, the appliance may be dead, won't start, or certain functions won't operate
• Helps prevent wiring and component damage from shorts or overloads
• Repeated fuse failures indicate an underlying electrical issue requiring diagnosis

• Disconnect power to the appliance before servicing
• Locate the fuse in its holder/block and inspect associated wiring for heat or damage
• Test the old fuse for continuity; replace only with the identical rating specified
• Never bypass or upsize a fuse; correct the root cause of the failure before returning to service

This fuse holder secures the appliance's thermal/fuse element and provides a stable connection point for the fuse, helping maintain proper circuit protection and reliable operation. What it does:

• Holds and secures the fuse or thermal cutoff in the appliance circuit
• Provides stable electrical contact to ensure reliable current flow
• Helps prevent intermittent power from a loose or damaged fuse connection
• Commonly replaced when the fuse or its mount is cracked, melted, or otherwise damaged

• Disconnect power to the appliance before inspecting or replacing the fuse holder
• Replace only with the correct part number for your appliance; verify fit before installation
• Use basic hand tools; avoid forcing terminals to prevent damage

A replacement screw used to secure panels and components in compatible GE appliances. Replacing missing or damaged screws restores secure mounting, reduces rattling, and helps keep parts aligned during normal operation. What it does:

• Fastens panels, trim, brackets, or small appliance components to maintain proper alignment and fit.
• Keeps internal parts secured to reduce vibration, rattling, or movement during use.
• Replaces stripped, rusted, or missing hardware that can cause loose or misaligned panels.
• Small, non-electrical part — does not affect electrical circuits or controls.

• Disconnect power and unplug the appliance before accessing internal parts.
• Use the properly sized screwdriver to avoid stripping the head; hand-start threads to prevent cross-threading.
• Tighten securely but avoid over-torquing; overtightening can strip threads or damage plastic components.
• Keep track of small parts and hardware; replace any damaged or mismatched screws with the correct OEM part.
