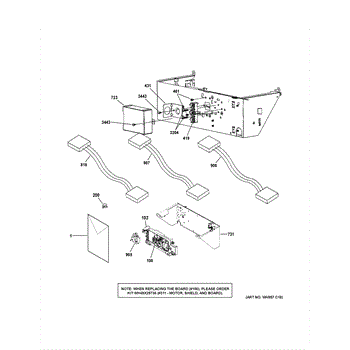

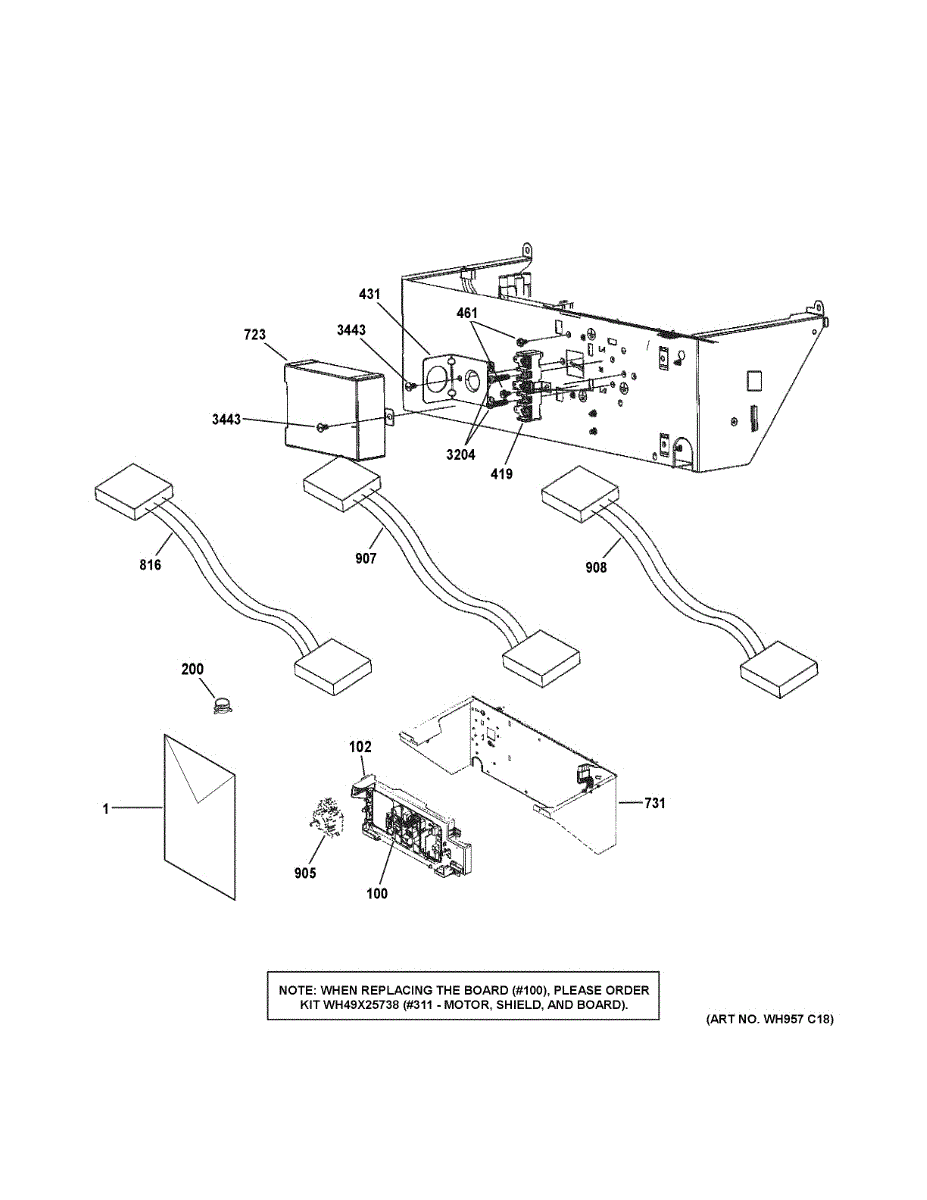

Parts for Ge GUD27ESSJ0WW: Controls Parts

The Drive Motor and Control Board Kit is an OEM part for GE washers. It includes both the drive motor, which powers the movement of the wash basket or tub during cycles, as well as the control board which communicates with and regulates the functions of the motor. This integrated kit works seamlessly to provide the necessary wash and spin motions.

Symptoms of a bad drive motor and control board kit include:

• The washer tub not turning or agitating during wash cycles
• Inability to advance cycles
• Electrical issues such as sparking or burning smells
• Fault codes displayed or cycles stopping prematurely

Causes can be normal wear and tear over time, water damage corrupting electronic components, or damage from foreign objects getting lodged in the motor or drive mechanism.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


A small replacement hose clip that secures flexible appliance hoses to fittings to help prevent leaks and disconnections. Fits commonly used appliance hose connections to restore a secure seal and reliable water flow. What it does:

• Secures a water or drain hose to a barb or fitting to prevent the hose from coming loose
• Helps stop leaks and drips caused by loose or slipping hoses
• Prevents hose movement and rubbing that can lead to wear or abrasion
• Useful when a hose slips off during operation or after maintenance

• Disconnect power and shut off the water supply before servicing the appliance
• Use appropriate hand tools (needle-nose pliers or hose clamp pliers) to open and seat the clip
• Position the clip over the fitting and tighten until the hose is snug and secure; avoid over-tightening
• Replace only with the correct OEM-style clip for a proper fit

This terminal block and ground strap assembly provides the connection point for the incoming power cord and secures the appliance ground, restoring a safe, stable electrical connection for ranges and ovens. Use when the terminal or ground shows damage or loose wiring. What it does:

• Connects incoming power conductors to the appliance wiring and secures the chassis ground
• Provides a stable contact point to prevent intermittent power, arcing, or sparks at the cord connection
• Common replacement when terminals are loose, discolored, burned, cracked, or when the appliance has intermittent power or no power
• Restores a proper ground path when the original strap is corroded or damaged

• Always disconnect all power at the breaker or service disconnect before servicing the appliance
• Inspect surrounding insulation and wiring for heat damage; replace the block if cracked, melted, or visibly compromised

A replacement strain relief bracket that secures the appliance power cord at the entry point, protecting wiring and the terminal connection from pull and wear. Restores proper cord routing for safer, more reliable electrical connection. What it does:

• Secures the power cord where it enters the appliance to prevent tension on terminals and wiring.
• Helps reduce intermittent power, loose connections, or arcing caused by a tugged or poorly routed cord.
• Maintains correct cord routing and support to match the original mounting location and fit.
• Useful when the original bracket is cracked, broken, or no longer holds the cord firmly in place.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Access is typically from the rear; remove the back access panel to reach the cord entry and terminal block.
• Remove mounting screws holding the old bracket, position the cord, and secure the new bracket without over-tightening; reuse original hardware if appropriate.
• Inspect the power cord and terminals for damage—replace damaged wiring.

Includes 12 screws.

This cover protects the appliance's fuse and terminal area, keeping electrical connections insulated and reducing the risk of shorting or arcing. A simple replacement restores the protective barrier over the fuse compartment. What it does:

• Shields the fuse and terminal block from debris and accidental contact
• Helps prevent electrical shorts or arcing at the fuse/terminal area
• Keeps the fuse securely positioned in its holder
• Restores the appliance's intended insulation and safety for the electrical connection

• One fuse terminal cover

• Disconnect all power to the appliance before accessing the fuse or terminal area
• Remove any mounting screws or clips holding the old cover; replace with the new cover in the same orientation
• Inspect the fuse and terminal connections for damage before reassembly; replace any damaged components as needed
• Do not operate the appliance with the fuse or terminals exposed

This electronic water level pressure switch senses air pressure from the wash tub and tells the control when to start and stop filling. Replacing a failed switch restores proper fill levels and helps cycles advance reliably. What it does:

• Monitors tub water level via an air hose connected to the switch
• Signals the control to start/stop the inlet valves at the correct level
• Enables cycle progression by confirming empty/full status
• Common symptoms: won't stop filling, stops filling too soon, incorrect water level, or water-level error codes

• 1 electronic pressure switch

• Disconnect power and turn off water supply before servicing
• Access the switch in the control console or rear cabinet area (location varies by model)
• Move the pressure hose and wire connector(s) over one at a time; ensure airtight hose fit and proper routing without kinks
• Inspect the hose and air dome for cracks, kinks, or blockages; clear or replace if needed

Includes 12 screws. Size: 8-18 ab.

A replacement screw used to secure panels and components in compatible GE appliances. Replacing missing or damaged screws restores secure mounting, reduces rattling, and helps keep parts aligned during normal operation. What it does:

• Fastens panels, trim, brackets, or small appliance components to maintain proper alignment and fit.
• Keeps internal parts secured to reduce vibration, rattling, or movement during use.
• Replaces stripped, rusted, or missing hardware that can cause loose or misaligned panels.
• Small, non-electrical part — does not affect electrical circuits or controls.

• Disconnect power and unplug the appliance before accessing internal parts.
• Use the properly sized screwdriver to avoid stripping the head; hand-start threads to prevent cross-threading.
• Tighten securely but avoid over-torquing; overtightening can strip threads or damage plastic components.
• Keep track of small parts and hardware; replace any damaged or mismatched screws with the correct OEM part.
