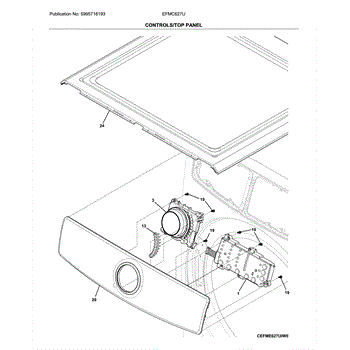

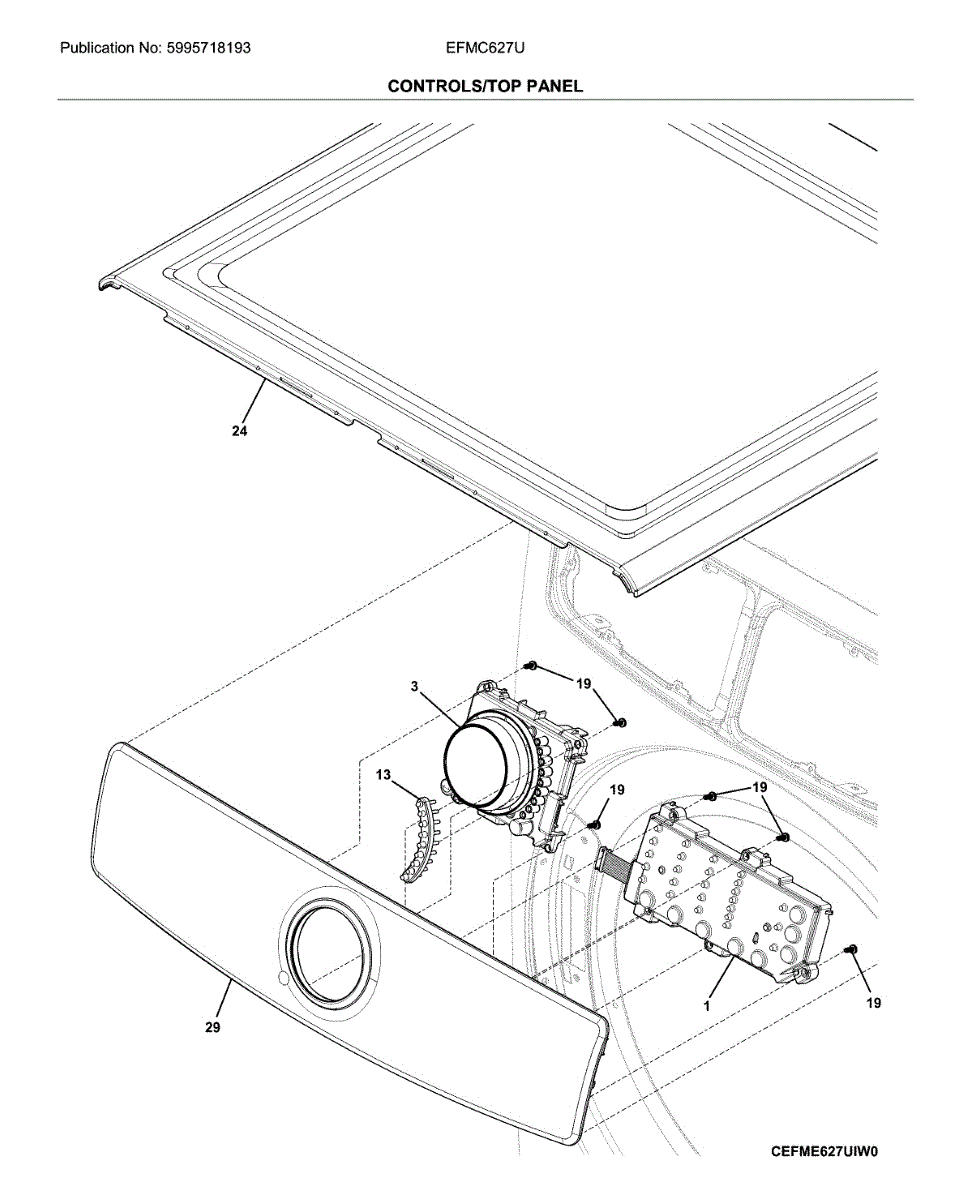

Parts for Electrolux EFMC627UTT1: Controls / Top Panel Parts

The Board Assembly is an OEM part for Frigidaire dryers. It refers to the control/display circuit board located at the front of the dryer. This board handles input from the control panel buttons and displays, as well as communicating with all the dryer's electronic components including the timer, temperature sensors, heating elements, and motor.

Causes of a bad board can include moisture exposure from improper venting, power surges, normal wear over time, and impacts from accidental mishandling.

Symptoms of a bad board assembly include:

• The dryer not turning on or powering up
• Fault codes appearing on the display
• Inability to select cycles or temperatures
• Timer/sensor malfunctions preventing proper drying
• Intermittent operation issues

Replacing the board assembly with a Frigidaire OEM part restores full electronic functionality. This ensures reliable, safe drying. It is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore dryers.


The Knob Assembly is an OEM replacement part for Frigidaire electric dryers. Including the control knob and internal mechanisms, it allows homeowners to precisely select drying cycles, temperatures and other functions. Reliable operation maximizes fabric care.

Potential causes of failure involve general wear from extended everyday use. Heat cycling may deteriorate plastic components at a quicker pace over many years. Accidental damage is also possible.

Symptoms of a faulty knob assembly include:

• Control knob loose, stuck or missing, impeding selection
• Desired dryer settings refusing to engage properly
• Flimsy or cracked knobs exposing internal mechanisms
• Misaligned buttons causing confusion or disrupted programs

This knob assembly also is also compatible with Electrolux, Westinghouse and select Kenmore models.

This diffuser directs and evens airflow inside the appliance to promote consistent temperature and efficient operation. Replaces a damaged or broken diffuser to restore proper air distribution and reduce airflow noise. What it does:

• Guides cool or warm air from the blower/vent to improve circulation and temperature consistency
• Helps prevent hot or cold spots by evenly dispersing incoming airflow
• Replaces cracked, warped, or missing diffusers that can cause reduced airflow or noise
• Common symptom fixer: uneven cooling, fluctuating temperatures, or rattling/whistling near the vent

• Disconnect power to the appliance before beginning any repair
• Typically installs at the vent or blower outlet; common fasteners are clips or screws — keep hardware if replacing only the diffuser
• Handle plastic parts gently to avoid cracking; align tabs/slots before fastening

This metal top panel replaces the upper rear control housing on compatible Frigidaire ranges and stoves, restoring a secure mounting surface for controls and improving cabinet fit and appearance. Ideal for repairing bent, rusted, or damaged panels. What it does

• Replaces the upper rear housing that supports control knobs, switches and the backguard area
• Restores proper alignment and spacing between the cooktop and rear controls
• Stops light leaks and relieves stress from warped or bent panels
• Commonly used when the panel is dented, rusted, cracked, or has broken mounting tabs

• One top panel

• Disconnect power (and gas, if applicable) before starting any work
• Handle sharp sheet-metal edges with gloves; panel edges can be sharp
• Remove control knobs, backguard, or trim as required and save screws for reinstallation
• Align mounting tabs and secure with original hardware; test controls after reassembly

This top panel in white restores the oven/stove's upper exterior, improving appearance and protecting internal components from spills and debris. It's a direct-replacement exterior shell piece designed to match original fit and finish. What it does:

• Replaces a cracked, warped, dented, or discolored upper cabinet panel
• Protects control housing and internal components from grease, spills, and dust
• Restores a flush, finished look to the appliance top and backguard area
• Helps maintain proper alignment for control and trim pieces

• Disconnect power to the appliance before beginning any work
• Typical removal requires removing screws and lifting the old panel straight out; keep mounting hardware
• Handle edges carefully to avoid cuts and protect the painted finish during installation

This console assembly is the control panel housing that secures and supports the range's controls, display and selector knobs. It restores a solid mounting surface and improves the appliance's appearance and usability. What it does:

• Provides the outer housing for the control board, display and user controls
• Secures switches, buttons and knobs in their correct positions
• Protects internal wiring and electronics behind the control area
• Commonly replaced when the console is cracked, melted, warped or loose

• Disconnect power to the appliance before starting any work.
• You may need to transfer the control board, clock/display, switches and knobs from the old console to the new one.

This replacement wiring harness restores reliable electrical connections between components in your appliance, helping return proper operation and reduce intermittent faults caused by damaged or worn wiring. What it does:

• Routes power and signals between control and appliance components to enable normal function
• Replaces damaged, frayed, or corroded wires and connectors that can cause intermittent operation
• Helps resolve symptoms like components not powering, erratic behavior, or visible wire damage
• Provides correct connector fit and wire colors for a direct swap when matching the original harness

• Disconnect power (unplug appliance or shut off breaker) before inspecting or replacing the harness
• Verify connector locations and routing match the original harness before final installation
• Inspect surrounding insulation and clips; replace any damaged mounting hardware to prevent chafing

This terminal block provides the mounting point and secure electrical connection for the appliance power leads. Replacing a damaged or corroded terminal block restores a solid power connection and reduces arcing or intermittent power. What it does:

• Provides a secure connection between the incoming power cord and the appliance wiring
• Holds and isolates power terminals to prevent shorting and arcing
• Commonly fails when terminals are burned, corroded, loose, or when wires heat at the connection
• Symptoms of a failing terminal include loss of power, intermittent power, visible burn marks or arcing at the connection, and melted or discolored insulation

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Tighten mounting screws and terminal screws securely; inspect and replace any damaged wire insulation

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
