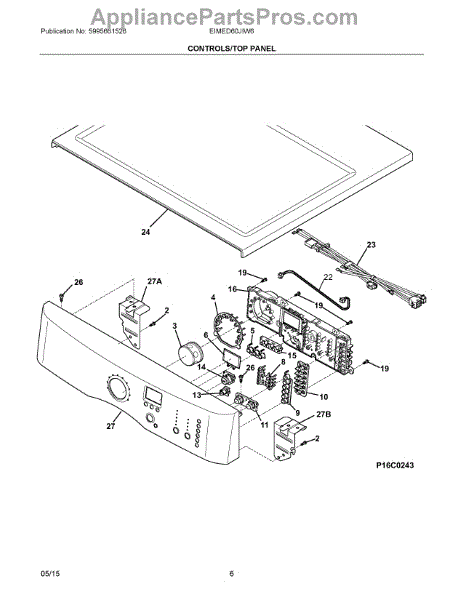

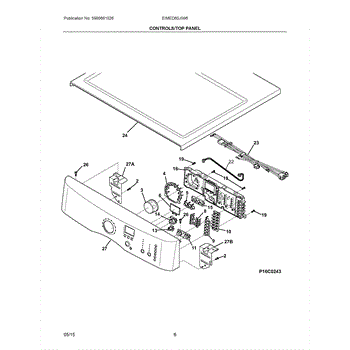

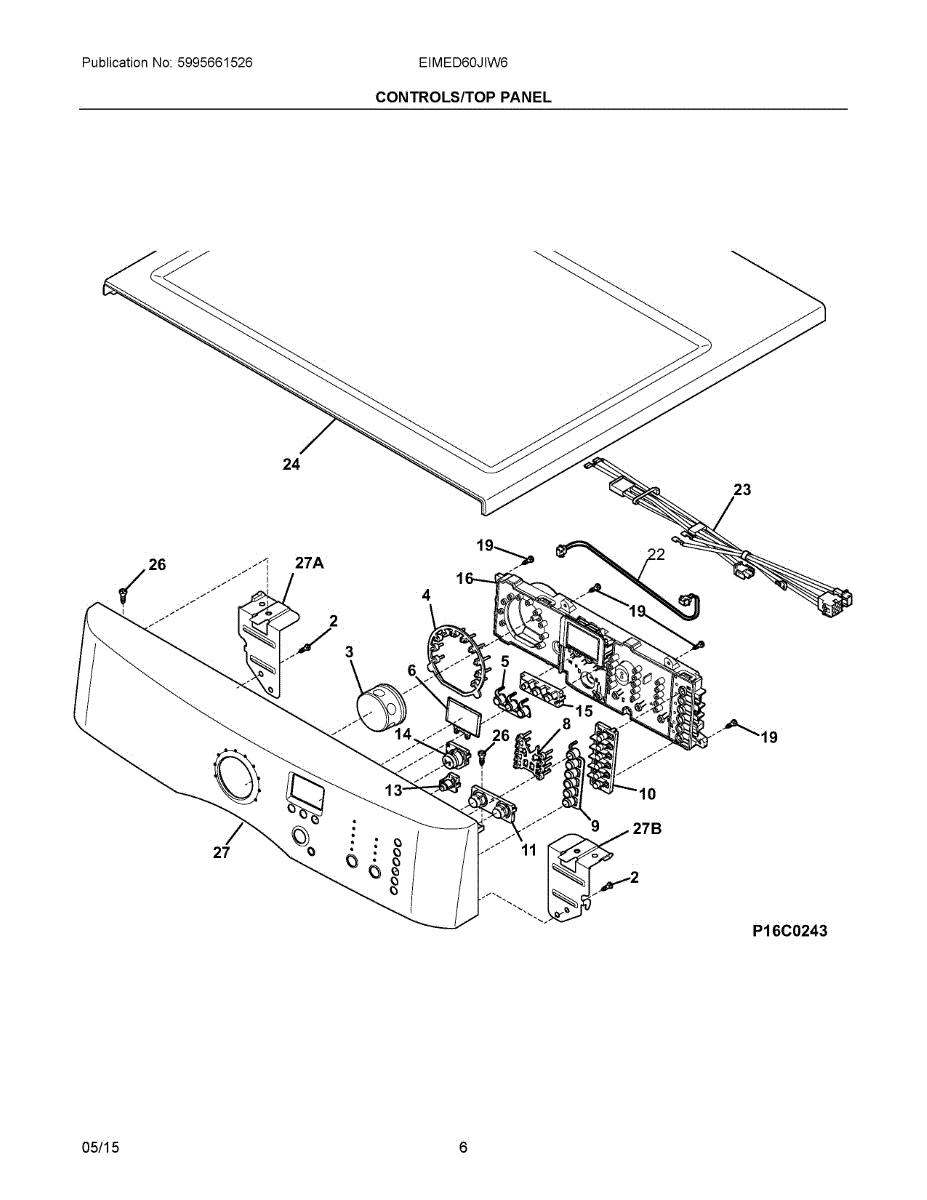

Parts for Electrolux EIMED60JIW6: 04 - Controls / Top Panel Parts

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This electronic control module manages and coordinates the refrigerator's functions, restoring responsive controls and stable operation when the original board fails. Replacing a faulty control board can stop intermittent behavior and restore normal control responses. What it does

• Receives and processes user inputs from the front panel and display
• Controls compressor, fans, defrost cycle and other timed functions
• Sends signals to auxiliary components like ice maker and dispenser
• Malfunctions can cause unresponsive controls, error codes, or erratic operation

• One electronic control board

• Disconnect power before accessing or removing the old board to avoid shock
• Handle the board by edges and avoid static discharge; use a grounded strap if available
• Minor disassembly (panel removal) may be required; keep fasteners and connectors organized

This electrical wiring harness connects refrigerator components to restore reliable power and signal paths. It replaces a damaged or worn harness to help stop intermittent operation and return affected circuits to normal function. What it does:

• Routes power and control signals between components and the main control
• Restores connectivity when a frayed or broken wire causes intermittent or no operation
• Helps resolve symptoms such as non-working lights, controls, dispenser, or ice maker when caused by a failed harness
• Provides factory-style connector plugs for a direct replacement fit

• Disconnect power to the appliance before starting any work.
• Access may require removing interior panels or appliance trim; keep fasteners organized.
• Match connector shapes and colors; do not force connectors together.
• Inspect mounting points and secure harness to avoid contact with sharp edges or moving parts.

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This damper is the refrigerator air-control flap that regulates airflow between compartments to help maintain consistent temperatures and proper cooling. It replaces a worn or stuck damper to restore normal airflow and temperature balance. What it does:

• Opens and closes to direct cold air where needed between freezer and fresh-food sections
• Helps maintain even temperatures and prevents one compartment from getting too warm
• Common symptom: uneven cooling or warm fresh-food section despite running compressor
• Common symptom: damper stuck or not moving, causing poor temperature control

• Disconnect power to the appliance before starting any repair
• Remove interior panels to access the damper; use basic hand tools
• Handle the damper and any wiring harness carefully to avoid damage
• After installation, verify damper operation and allow time for temperatures to stabilize

This terminal block provides the mounting point and secure electrical connection for the appliance power leads. Replacing a damaged or corroded terminal block restores a solid power connection and reduces arcing or intermittent power. What it does:

• Provides a secure connection between the incoming power cord and the appliance wiring
• Holds and isolates power terminals to prevent shorting and arcing
• Commonly fails when terminals are burned, corroded, loose, or when wires heat at the connection
• Symptoms of a failing terminal include loss of power, intermittent power, visible burn marks or arcing at the connection, and melted or discolored insulation

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Tighten mounting screws and terminal screws securely; inspect and replace any damaged wire insulation
