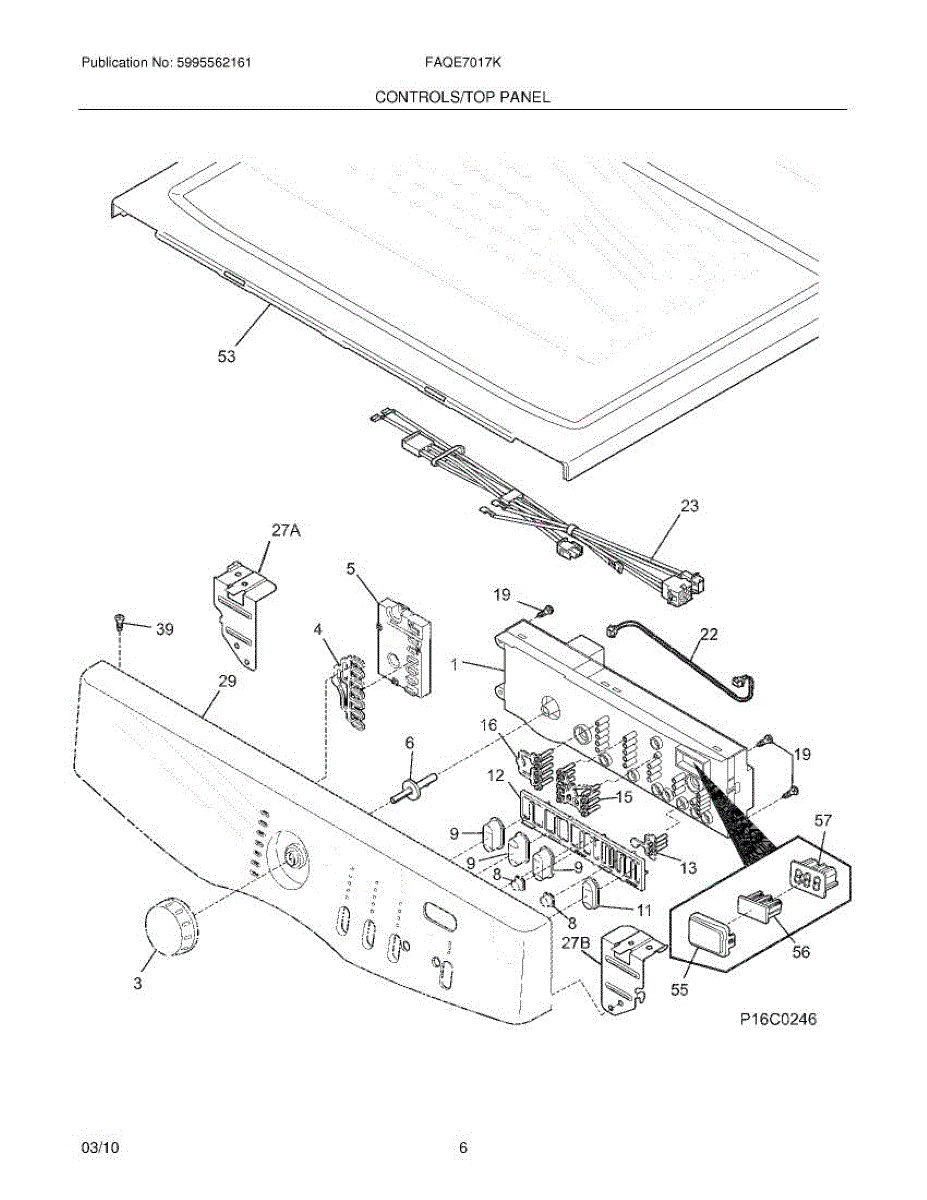

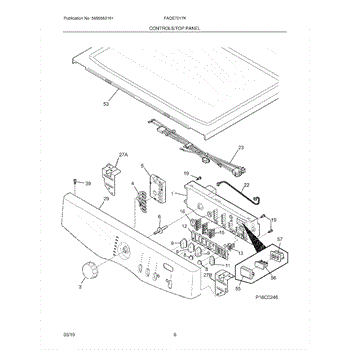

Parts for Frigidaire FAQE7017KR0: 07 - Controls / Top Panel Parts

This electronic console control board manages the oven/range user interface and core cooking functions so your appliance responds to commands and maintains selected settings. It restores control of timing, temperature, and display features when the original board fails. What it does:

• Receives input from the control panel and relays commands to oven elements, burners, timers, and displays
• Regulates bake/ broil temperature and timing functions
• Helps clear certain electronic faults when replaced as part of targeted troubleshooting

• Disconnect power at the breaker or unplug the appliance before servicing to avoid shock hazard
• Handle the control board by its edges and avoid static discharge; wear an anti-static wrist strap if available
• Reassemble panels and restore power, then test basic functions.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This user interface control board replaces the oven's front control module so you can send commands and view settings. It restores responsive touch/buttons and proper display feedback for normal operation. What it does

• Receives button/touch inputs and relays commands to the oven control system
• Provides display/status feedback so settings and timers are visible
• Helps resolve unresponsive buttons, blank or incorrect display readouts, or intermittent control behavior
• Works as the main input surface for oven functions like bake, broil, timers, and temperature settings

• One user interface control board (UI board) — only items explicitly listed by the manufacturer are included

• Turn power to the appliance off at the breaker before servicing to avoid electrical shock
• Handle the board and connectors carefully; avoid touching contacts or flexing the board
• Verify connector orientation and secure mounting; test operation with power restored

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This terminal block provides the mounting point and secure electrical connection for the appliance power leads. Replacing a damaged or corroded terminal block restores a solid power connection and reduces arcing or intermittent power. What it does:

• Provides a secure connection between the incoming power cord and the appliance wiring
• Holds and isolates power terminals to prevent shorting and arcing
• Commonly fails when terminals are burned, corroded, loose, or when wires heat at the connection
• Symptoms of a failing terminal include loss of power, intermittent power, visible burn marks or arcing at the connection, and melted or discolored insulation

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Tighten mounting screws and terminal screws securely; inspect and replace any damaged wire insulation
