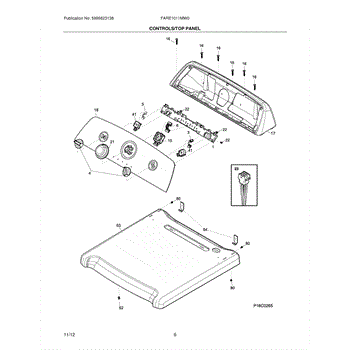

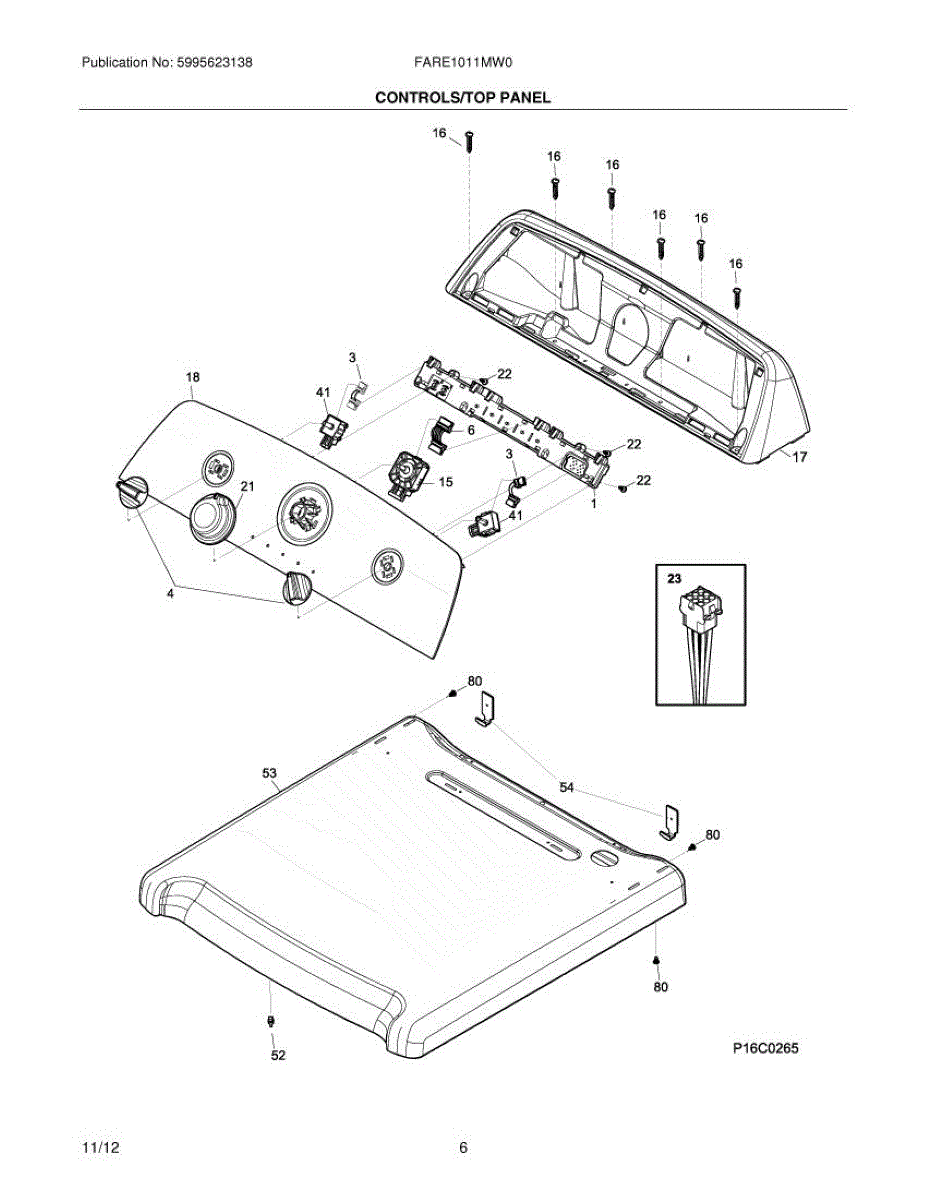

Parts for Frigidaire FARE1011MW0: 07 - Controls / Top Panel Parts

The Cycle Selector Switch is an OEM part for Frigidaire washers and dryers. It is a component that allows you to choose and control different cycles and settings during the laundry process. The cycle selector switch is typically located on the control panel of the washer or dryer.

Causes of a faulty cycle selector switch can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as the switch not responding or functioning properly, difficulty in selecting or changing cycles, or the appliance not starting or stopping as desired.

Symptoms of a bad cycle selector switch may include:
Inability to select or change cycles
Unresponsiveness or inconsistency in switch operation
Error codes or failure to start or stop the appliance

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

PPH ab st/z/ch `6 - 18x.60

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
