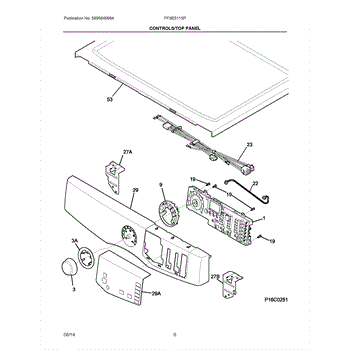

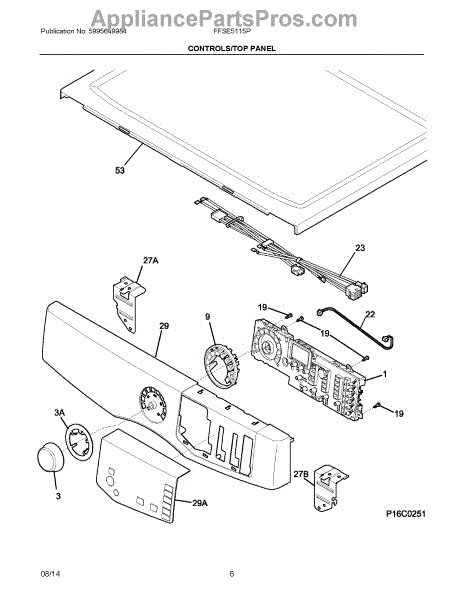

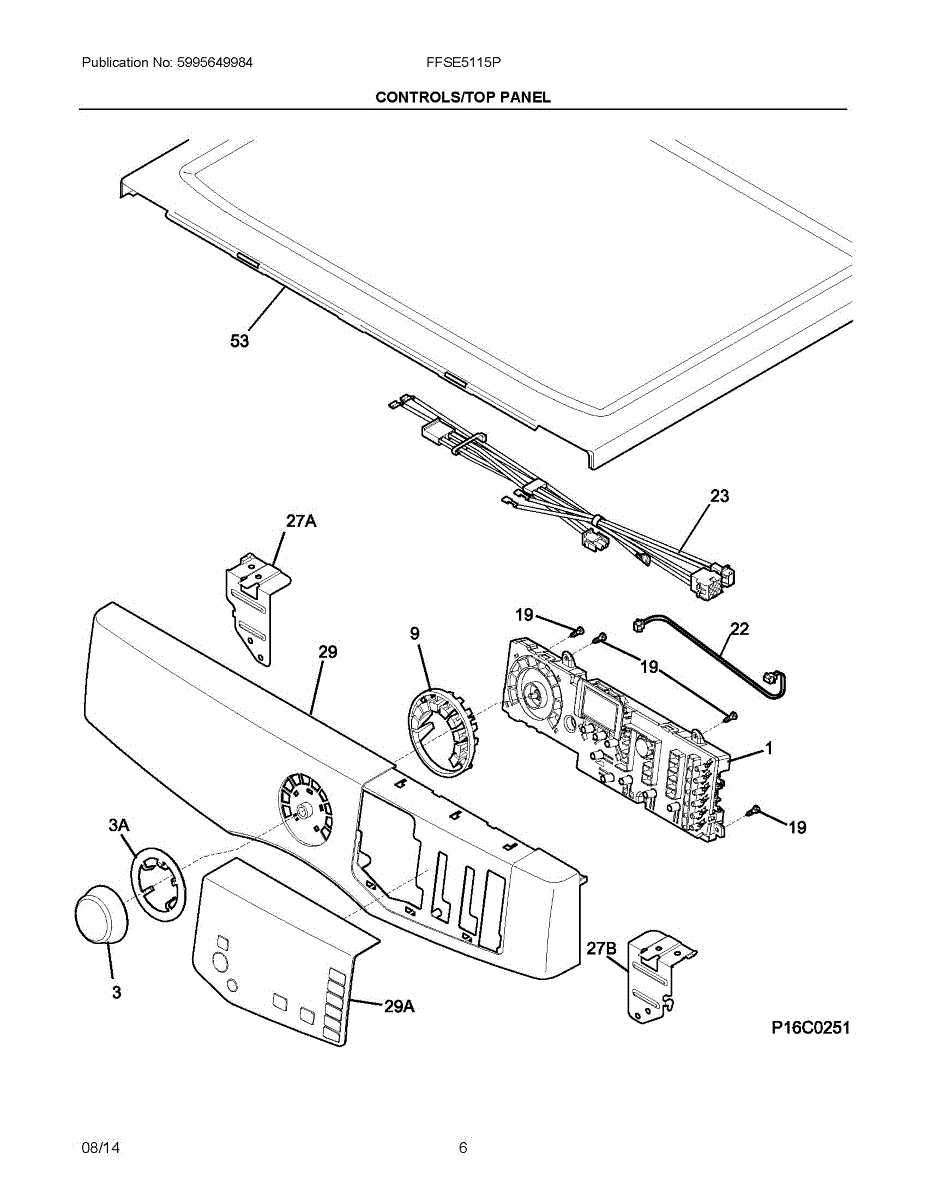

Parts for Frigidaire FFSE5115PW2: 04 - Controls / Top Panel Parts

This control board is the electronic brain of the dishwasher, managing cycle timing and power to key components. Replacing a failed board can restore normal operation when the unit won't start, behaves erratically, or won't complete cycles.

• Distributes power to the wash motor, drain pump, inlet valve, and heater as directed by the selected cycle
• Coordinates timing and sensor inputs to run and complete programs
• Issues can include no start, stopping mid-cycle, unresponsive controls with power present, or error indications
• Similar symptoms can be caused by wiring, door latch, UI board, or power issues—diagnose before replacing

• Disconnect power at the breaker before servicing; do not rely on the door switch
• Access the control (location varies by model), label/photograph connections, and transfer connectors one at a time
• Handle the PCB by the edges and observe ESD precautions
• After installation, restore power and run a test or diagnostic cycle per the service information

This electrical wiring harness connects refrigerator components to restore reliable power and signal paths. It replaces a damaged or worn harness to help stop intermittent operation and return affected circuits to normal function. What it does:

• Routes power and control signals between components and the main control
• Restores connectivity when a frayed or broken wire causes intermittent or no operation
• Helps resolve symptoms such as non-working lights, controls, dispenser, or ice maker when caused by a failed harness
• Provides factory-style connector plugs for a direct replacement fit

• Disconnect power to the appliance before starting any work.
• Access may require removing interior panels or appliance trim; keep fasteners organized.
• Match connector shapes and colors; do not force connectors together.
• Inspect mounting points and secure harness to avoid contact with sharp edges or moving parts.

Mounting bracket for dryer assembly. Secures internal components in proper position. Replace if bent, cracked, or broken to restore structural support.

Mounting bracket for dryer components. Secures and supports internal parts. Replace if bent, cracked, or broken to restore proper alignment and stability.

Color: White

Color: White

This damper is the refrigerator air-control flap that regulates airflow between compartments to help maintain consistent temperatures and proper cooling. It replaces a worn or stuck damper to restore normal airflow and temperature balance. What it does:

• Opens and closes to direct cold air where needed between freezer and fresh-food sections
• Helps maintain even temperatures and prevents one compartment from getting too warm
• Common symptom: uneven cooling or warm fresh-food section despite running compressor
• Common symptom: damper stuck or not moving, causing poor temperature control

• Disconnect power to the appliance before starting any repair
• Remove interior panels to access the damper; use basic hand tools
• Handle the damper and any wiring harness carefully to avoid damage
• After installation, verify damper operation and allow time for temperatures to stabilize

Dryer not starting or power cutting out? A melted or corroded terminal block disrupts power flow. This 3-terminal block restores secure connections. DIY-friendly repair.
