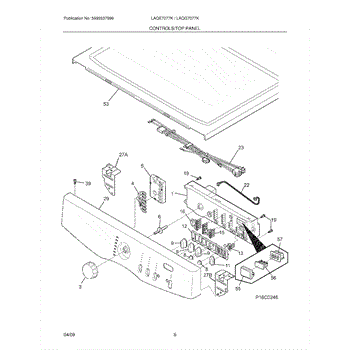

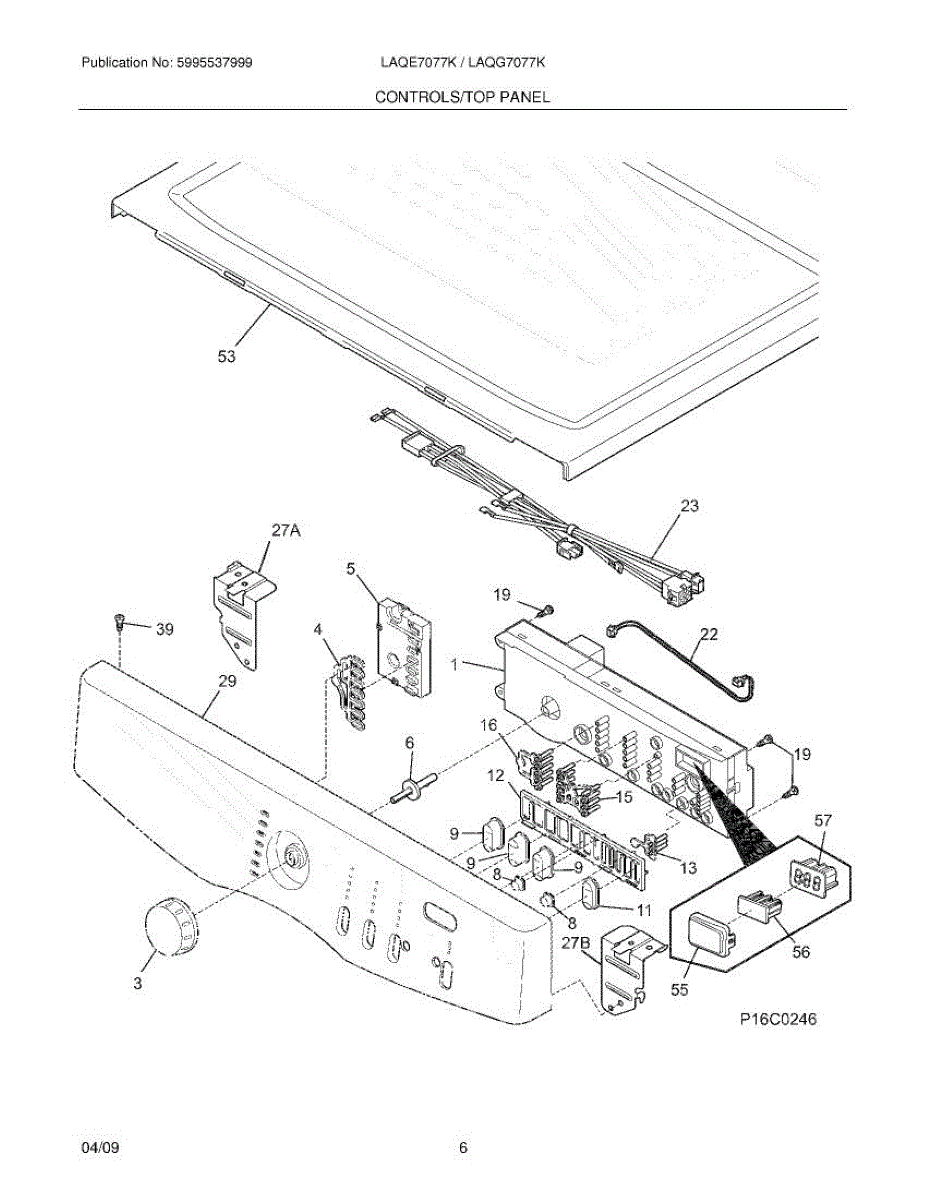

Parts for Frigidaire LAQE7077KR0: 07 - Controls / Top Panel Parts

This user interface control board replaces the oven's front control module so you can send commands and view settings. It restores responsive touch/buttons and proper display feedback for normal operation. What it does

• Receives button/touch inputs and relays commands to the oven control system
• Provides display/status feedback so settings and timers are visible
• Helps resolve unresponsive buttons, blank or incorrect display readouts, or intermittent control behavior
• Works as the main input surface for oven functions like bake, broil, timers, and temperature settings

• One user interface control board (UI board) — only items explicitly listed by the manufacturer are included

• Turn power to the appliance off at the breaker before servicing to avoid electrical shock
• Handle the board and connectors carefully; avoid touching contacts or flexing the board
• Verify connector orientation and secure mounting; test operation with power restored

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This damper is the refrigerator air-control flap that regulates airflow between compartments to help maintain consistent temperatures and proper cooling. It replaces a worn or stuck damper to restore normal airflow and temperature balance. What it does:

• Opens and closes to direct cold air where needed between freezer and fresh-food sections
• Helps maintain even temperatures and prevents one compartment from getting too warm
• Common symptom: uneven cooling or warm fresh-food section despite running compressor
• Common symptom: damper stuck or not moving, causing poor temperature control

• Disconnect power to the appliance before starting any repair
• Remove interior panels to access the damper; use basic hand tools
• Handle the damper and any wiring harness carefully to avoid damage
• After installation, verify damper operation and allow time for temperatures to stabilize

This terminal block provides the mounting point and secure electrical connection for the appliance power leads. Replacing a damaged or corroded terminal block restores a solid power connection and reduces arcing or intermittent power. What it does:

• Provides a secure connection between the incoming power cord and the appliance wiring
• Holds and isolates power terminals to prevent shorting and arcing
• Commonly fails when terminals are burned, corroded, loose, or when wires heat at the connection
• Symptoms of a failing terminal include loss of power, intermittent power, visible burn marks or arcing at the connection, and melted or discolored insulation

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Tighten mounting screws and terminal screws securely; inspect and replace any damaged wire insulation
