Parts for Bosch HMC87151UC/01: Convection Parts

Parts for Bosch HMC87151UC/01: Convection Parts

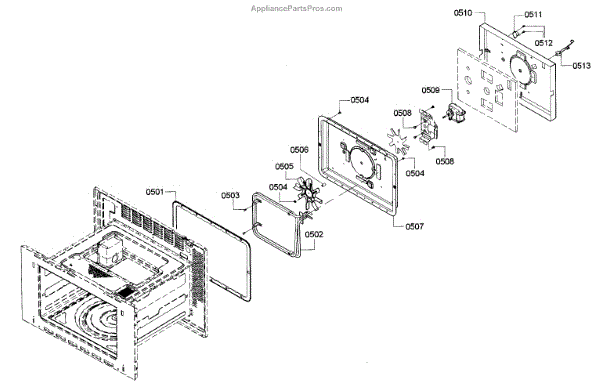

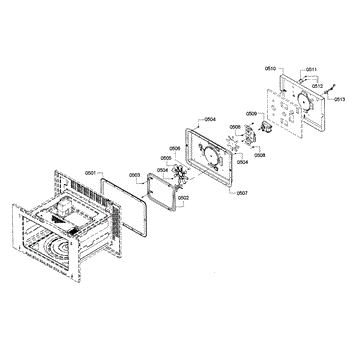

Location on Diagram
Part Description
Price & Availability
501
By: Bosch
Part Number: 00683698
$12.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
502
5.0 (1)
By: Bosch
Part Number: 00757668

Microwave won't heat in convection mode? This circular heating element surrounds the fan and restores fast, even baking. Moderate DIY repair.

More
$43.37

IN STOCK
Ships Today Guaranteed
Add to Cart
503
By: Bosch
Part Number: 00631578

Secures panels, brackets, and components inside your microwave or wall oven. Replace missing, rusted, or stripped screws to restore proper fit.

More
$8.28

IN STOCK
Ships Today Guaranteed
Add to Cart
504
By: Bosch
Part Number: 00631580

Replacement mounting nut that secures panels, brackets, or assemblies inside your microwave or wall oven. Needed when original is stripped, missing, or worn.

More
$3.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
505
By: Bosch
Part Number: 11028898

Fix loud grinding noises or overheating in your microwave with this cooling fan blade. Common repair for ventilation issues. Moderate DIY difficulty.

More
$54.69

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
506
By: Bosch
Part Number: 00617149
$10.43

IN STOCK
Ships Today Guaranteed
Add to Cart
507
By: Bosch
Part Number: 00683700
$27.98

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
508
By: Bosch
Part Number: 00631577
$8.28

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
509
Product photo
By: Bosch
Part Number: 00631521

This fan motor circulates air through the appliance to cool internal components and maintain proper operating temperature. Replacing a worn motor restores airflow and can reduce overheating or abnormal noise. What it does:

  • Spins the condenser/blower fan to move air over coils and heat-producing parts
  • Restores airflow when a motor has failed or slowed
  • Commonly linked to symptoms like loud grinding or squealing, reduced/no airflow, or overheating
  • Helps the appliance maintain proper temperatures for reliable operation
What's included:
  • One fan motor (single unit as pictured)
Install notes:
  • Disconnect power before servicing to avoid shock or injury
  • Inspect mounting, fan blade, and wiring harness for damage before installing
  • Use the correct connector and secure mounting to prevent vibration and noise

More
$57.55

IN STOCK
Ships Today Guaranteed
Add to Cart
510
By: Bosch
Part Number: 00683702
$12.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
511
Best Seller
Product photo
4.5 (2)
By: Bosch
Part Number: 00631508

This is a temperature regulator thermostat used in the microwave to monitor and control internal temperatures. It helps prevent overheating by shutting off heating components when a set temperature is reached. Replace this part if the microwave shuts off unexpectedly, overheats, or fails to maintain proper cooking temperatures.

More
$6.68

IN STOCK
Ships Today Guaranteed
Add to Cart
512
By: Bosch
Part Number: 00631575
$8.28

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
513
Product photo
By: Bosch
Part Number: 00648818

Microwave not heating evenly or shutting off unexpectedly? This temperature sensor thermistor monitors cavity temperature and signals the control board.

More
$22.23

IN STOCK
Ships Today Guaranteed
Add to Cart
