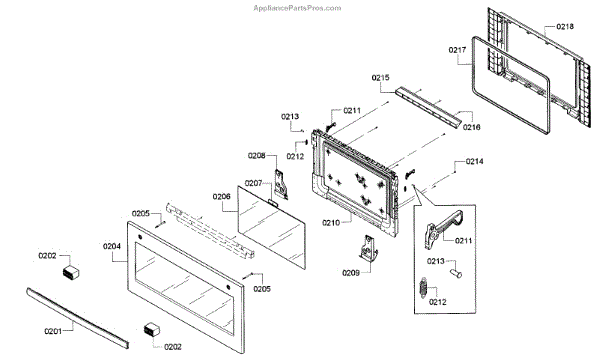

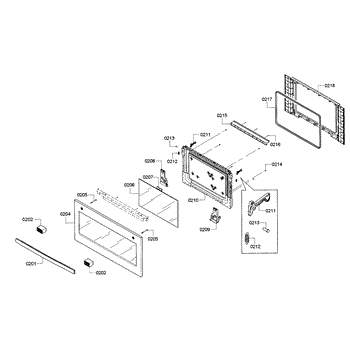

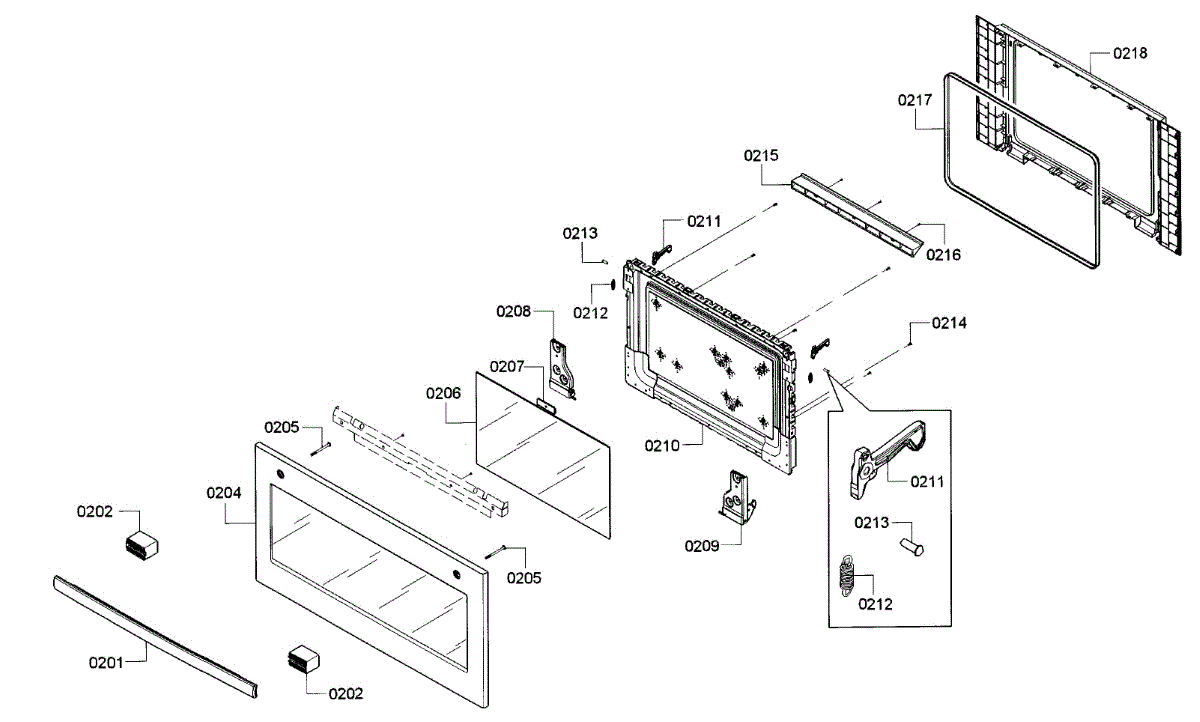

Parts for Bosch HMC87151UC/01: Door Parts

Replacement support bracket for microwaves and wall ovens. Installs to secure components or panels in place. Order if your original is cracked, bent, or missing.

Replacement outer door panel for your microwave or wall oven. Installs on the front exterior. Order when original door is cracked, dented, or damaged.

Intermediate panel for microwaves and wall ovens. Replaces cracked, damaged, or missing interior panels. Installs between cavity sections for support.

Replaces cracked or broken door hinges on Bosch microwaves and wall ovens. Supports door weight and keeps it securely in place during use.

The Door Hinge is an OEM replacement part for Bosch microwaves. It is the component that ensures the microwave door opens and closes smoothly and securely. Proper functioning of the door hinge is crucial for the safety and efficiency of the appliance, as it ensures the microwave does not operate when the door is open, preventing potential hazards.

Symptoms of a bad Door Hinge include:

• Difficulty in opening or closing the microwave door
• The door not sealing properly, leading to potential radiation leakage
• Unusual noises during the door’s operation

Causes for a malfunctioning Door Hinge can be attributed to regular wear and tear, mechanical damage, or issues arising from the constant opening and closing of the microwave door.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models

This replacement frame secures the appliance's door panels and helps maintain proper alignment and sealing for reliable operation. Restores the door's fit and finish for improved performance and appearance. What it does:

• Provides structural support for the door assembly and mounting points for panels and trim
• Helps maintain a tight seal to prevent leaks and reduce noise
• Can resolve symptoms like door misalignment, gaps, rattling, or loose trim
• Restores original fit and appearance after damage or wear

• Disconnect power and water before starting any repair
• Remove outer door panel or trim per OEM instructions to access mounting screws and clips
• Handle painted or plated surfaces carefully to avoid scratches; use non-marring tools

The Latch is an OEM part for Bosch microwaves. It secures the microwave door safely closed during cooking cycles.

Causes of a bad latch can include wear and tear resulting from repeated opening and closing of the microwave door over time. Normal operation puts stress on internal latch mechanisms that can compromise function.

Symptoms of a bad latch include:

• Food or debris buildup on the door seal or surrounding area.
• Steam or burnt residue inside areas that should remain sealed and clean.
• The door popping or shaking loose from the sealed position during a cooking cycle.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Pin is an OEM part for Bosch wall ovens and microwaves. It is part of the latch which holds the door.

Causes can be normal wear and tear over time, deformation from repeated use, or damage due to excessive force on the door.

Symptoms of a bad oven door pin include:

• The door not latching or locking into place fully
• Looseness or play in the door latching mechanism
• The door able to open partially during a cooking cycle
• Difficulty closing or locking the oven door securely

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement screw secures appliance panels and components at their mounting points. Swap in a new screw to restore a tight, rattle-free fit when the original fastener is missing, stripped, or corroded.

• Fastens the designated panel, bracket, or component in place
• Replaces a missing, stripped, or rusted screw
• Helps address loose panels, gaps, rattling, or misalignment at the mounting point
• Maintains proper assembly integrity after service or vibration

• Disconnect power; shut off water supply if working near plumbing
• Match to the removed fastener and replace one at a time to preserve alignment
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly and avoid overtightening, especially into plastic or thin sheet metal

This replacement seal restores a tight, leak-resistant connection within the specified assembly of your appliance. Replacing a worn or damaged gasket helps stop drips and moisture intrusion so the unit runs reliably without leak-related issues.

• Creates a watertight/airtight barrier between mating parts
• Helps prevent leaks and moisture damage around the affected joint
• Replace if the original shows cracking, flattening, hardening, or tears
• Can help address water under/around the unit or dampness at a connection point

• Disconnect power and shut off water supply before servicing
• Note the original seal's orientation and seating depth for correct placement
• Clean the groove and mating surfaces; remove residue and scale to ensure a proper fit
• Seat the new seal evenly; avoid overtightening fasteners; test for leaks after reassembly

Protective cap that shields the microwave's choke assembly from debris and damage. Replace if cracked, broken, or missing to restore protection.
