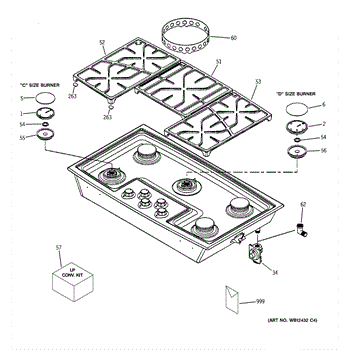

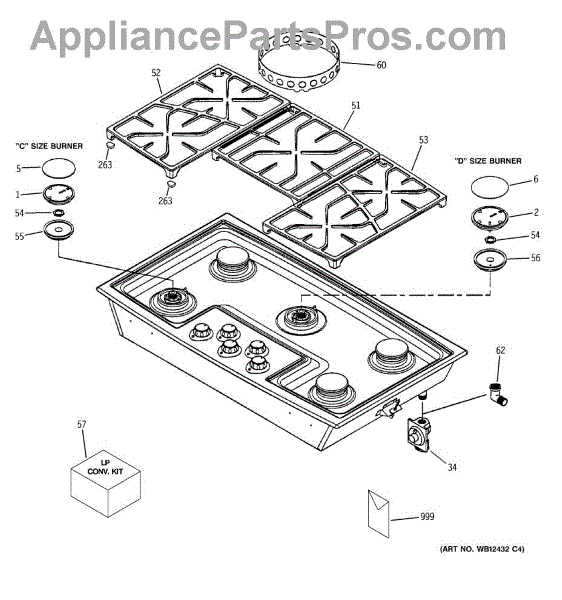

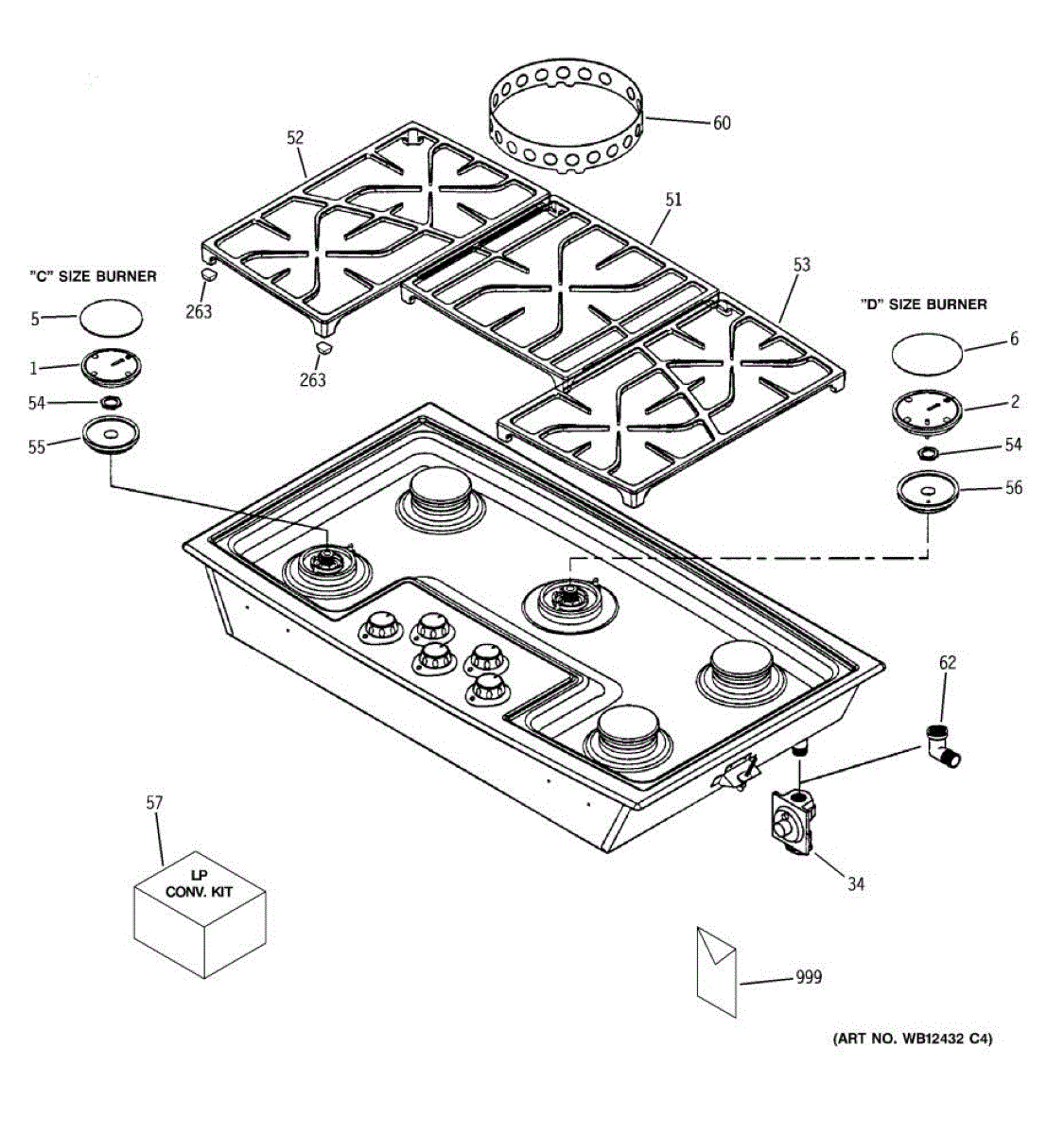

Parts for Ge ZGU375LSD2SS: 01 - Cooktop Appearance Parts

A replacement D port trim ring that restores the finished opening and secures a vent/port on the appliance. Replaces a cracked, broken or missing trim piece to stop drafts and eliminate rattling. What it does:

• Provides a finished, stable edge around a D-shaped port or vent opening
• Helps hold a hose or duct in position and reduces movement
• Reduces air leaks and vibration-related noise when damaged or loose
• Commonly replaced when the trim is cracked, warped or missing

• Disconnect power and follow the appliance manufacturer's safety instructions before starting
• Small screws or clips may secure the ring; keep hardware organized for reassembly
• Expect simple, moderate-level access; removing a panel may be required
• Wear gloves to protect against sharp sheet-metal edges

Center

Left hand side

Right hand side

This D simmer ring fits the cooktop burner to help control and focus the gas flame for low-heat cooking and simmering. It restores proper burner alignment and helps prevent uneven heating on compatible gas ranges. What it does:

• Centers and supports the burner cap so the flame burns evenly
• Narrows the flame for low-heat/simmer settings and gentler cooking
• Helps reduce hot spots and improves stove-to-pot heat transfer
• Resolves uneven or wandering flames when the original ring is warped or damaged

• Turn off all controls and ensure the range is completely cool before servicing
• Remove grate and burner cap, seat the simmer ring over the burner base, then replace cap and grate
• Inspect for cracks, warping, or heavy corrosion; replace if damaged
• If you smell gas or the flame remains abnormal after installation, stop use.

Ranges and ovens have grate feet installed on the underside of their cooktop grates. This rubber piece keeps the stovetop from getting scratched by the grate when there is pressure applied. With use, misplacement, or other damages, there is a requirement for one more replacement grate foot pieces.A stovetop with scratches on the surface indicates a missing grate foot. There are four grate foot parts on each grate. The replacement of a grate foot is a simple process. Remove the grate covering the area where a visual inspection has determined there is a missing foot grate. Clean the area thoroughly. Apply the new foot grate. Reposition the grate on the stovetop. Wear gloves for safety. It's recommended to unplug the appliance while doing the replacement to prevent accidental activation of the cooktop.This grate foot is an authentic OEM replacement part. It is sold as an individual unit. It is made of high-quality, durable rubber. The piece is sourced directly from the manufacturer. It is compatible with several models of ranges and cooktops. The grate foot fits in appliances produced by General Electric, RCA, and Hotpoint.
