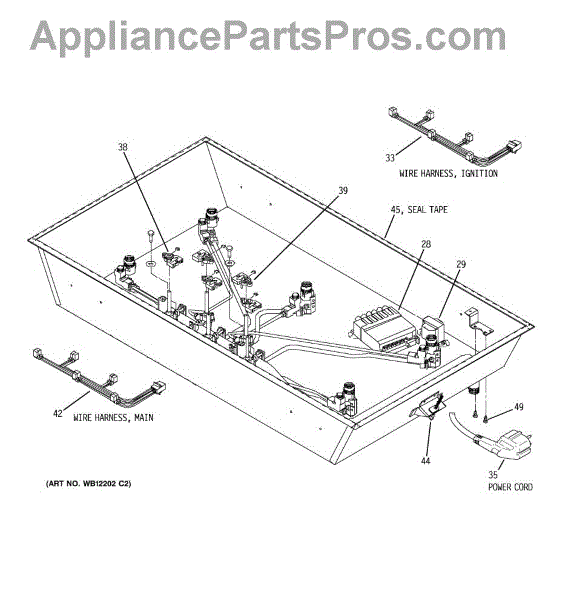

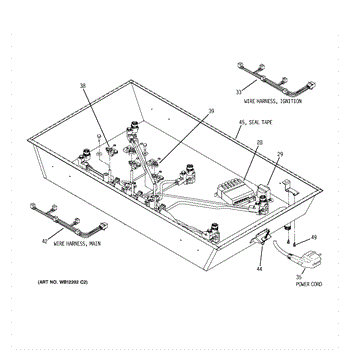

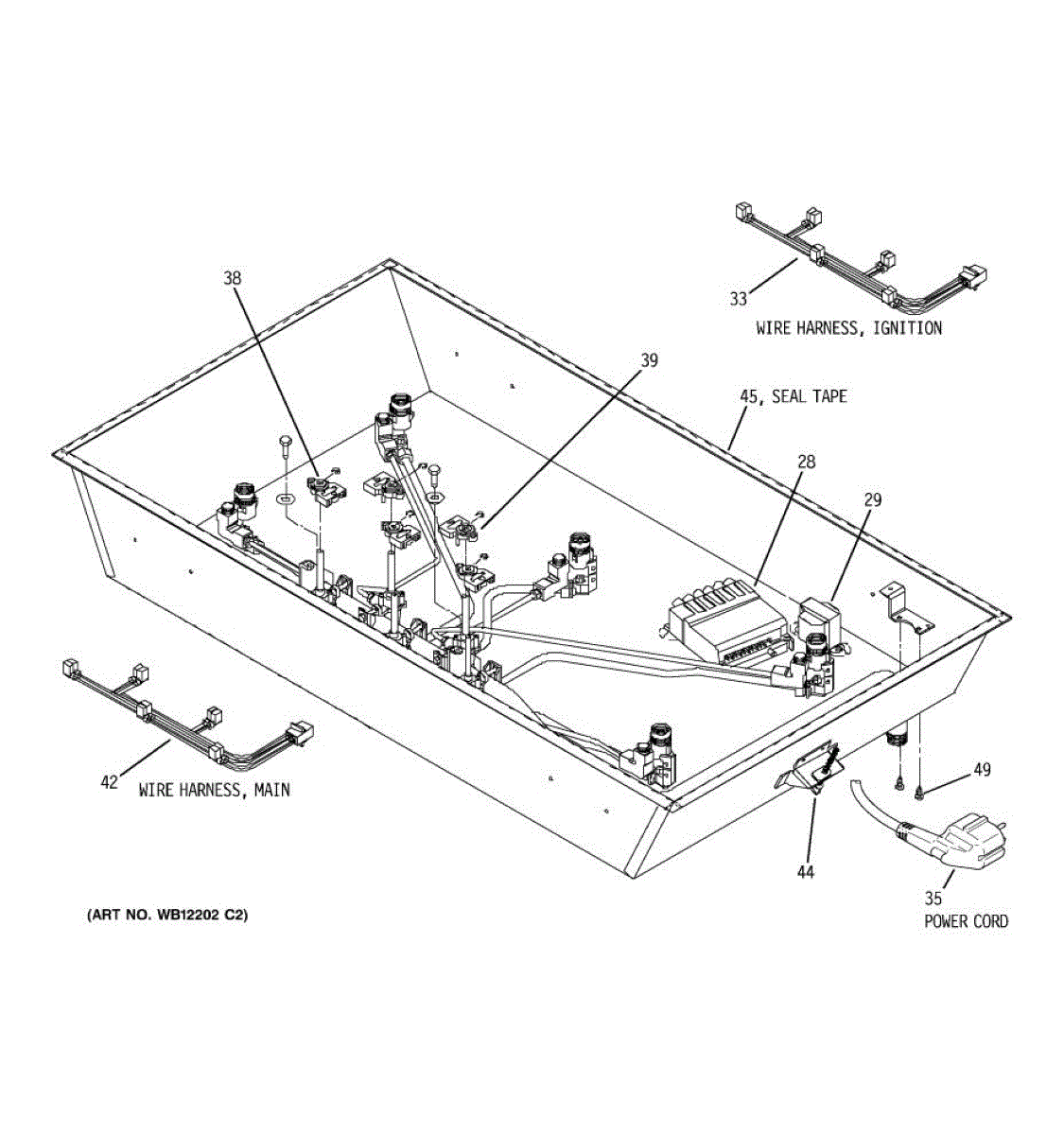

Parts for Ge ZGU375NSD2SS: 04 - Cooktop Box Components Parts

The Spark Module is an OEM part for GE ranges and cooktops. This module ignites the burners, ensuring that they light quickly and efficiently every time the appliance is used. It works by generating and transmitting electrical sparks to the burner when the control knob is turned on.

These issues can arise due to moisture exposure, grease buildup, electrical faults, or simple wear and tear over time.

Symptoms of a failing spark module include:

• Burners that fail to ignite or ignite intermittently
• Continuous clicking sounds from the module after the burner is lit
• Weak or inconsistent spark production that affects burner performance

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-voltage transformer steps line voltage up to power the magnetron, producing microwave energy. Replacing a failed transformer can restore heating when the oven runs but doesn't heat or hums without cooking.

• Supplies the high voltage the magnetron needs to generate microwave energy
• Failure may present as the microwave running but not heating
• May cause a loud hum or buzz with no heat
• Can blow an internal fuse or trip a breaker immediately after pressing Start

• Disconnect power before service; the high-voltage capacitor can retain a dangerous charge even when unplugged
• Support the heavy transformer during removal/installation and reuse original mounting hardware and wire positions
• After installation, verify secure connections in the high-voltage circuit (capacitor and diode) before testing

This is the surface burner igniter switch that mounts on the valve stem and closes the circuit to spark the burners when you turn the knob. Replacing a faulty switch restores consistent, reliable ignition on your gas cooktop or range.

• Closes when the knob is turned to send power to the spark module
• Helps resolve intermittent or no spark at one or more burners
• 12 o'clock orientation matches the valve shaft's flat position for proper fit

• Disconnect power and shut off gas before servicing
• Pull off the knob and access the switch from the control panel
• Note wire positions before transfer; replace one switch at a time
• Verify correct shaft orientation (12 o'clock) to match your valve style
