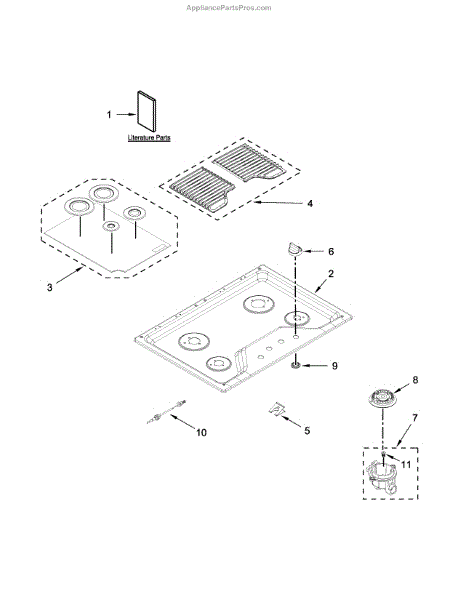

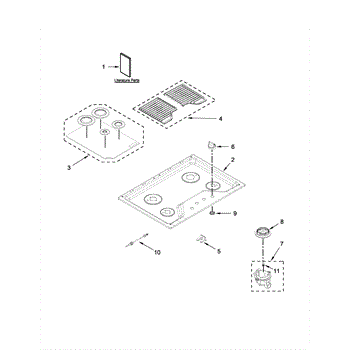

Parts for Ikea ICS500DS00: Cooktop, Burner And Grate Parts

This surface burner cap sits on top of a gas burner head to shape the flame and shield the burner from spills. Replace a missing, chipped, or warped cap to restore even flame, clean combustion, and reliable ignition.

• Shapes and stabilizes the flame for consistent cooking heat
• Protects the burner head from spills and debris
• Supports proper ignition when correctly seated
• Typical symptoms: uneven/yellow flames, delayed ignition, clicking without lighting, visible chipping or warping

• Disconnect power and shut off gas; allow the cooktop/range to cool completely
• Lift off the old cap and clean the burner head and seating surface
• Place the correct cap for that burner size; align and seat it flat and centered
• Restore gas and power; test ignition and flame, and reseat if the flame is uneven

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

This Orifice holder secures the burner orifice in place to help maintain proper gas flow at the burner, supporting consistent ignition and flame performance. It's a small replacement part used where the orifice needs stable support. What it does

• Holds the burner orifice securely so it stays aligned with the burner assembly
• Helps maintain steady gas flow for consistent ignition and flame pattern
• Can address symptoms like burners that won't light reliably or produce weak/uneven flames
• Restores proper positioning after damage or wear to the original holder

• One Orifice holder

• Turn off and shut off the gas supply before attempting service
• Inspect nearby gaskets, fittings, and the orifice for damage and replace if needed
• Do not overtighten fasteners; follow OEM torque/installation guidance when available

This Holder ORF retainer secures the related component in place to restore correct alignment and reliable operation. It's a direct-fit replacement designed to match the OEM mounting and fit points. What it does:

• Holds and stabilizes the specified assembly or component to prevent shifting or misalignment
• Helps stop rattling, binding, or loose movement associated with a worn or broken holder
• Restores proper fit where the original retainer has cracked, deformed, or failed
• Works with the factory mounting locations for a secure replacement

• One Holder ORF retainer (single piece as shown)

• Replace with power off and appliance disconnected from mains before servicing
• Inspect surrounding clips, screws, and mounting surfaces; replace any damaged fasteners for secure fit
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the retainer

This Holder ORF is a factory-style mounting bracket that secures internal appliance components for reliable alignment and support. It restores proper part positioning to help reduce rattling and ensure consistent operation. What it does

• Provides a secure mount and positional support for the associated internal component
• Helps stop movement or vibration that can cause noise or misalignment
• Restores correct part alignment that may prevent intermittent operation or fit issues
• Durable replacement that matches OEM fit and function

• One Holder ORF mounting bracket

• Designed to replace the original factory bracket; verify visual match before installation
• Use basic hand tools; disconnect power and/or water (if applicable) before beginning repair
• Handle edges carefully and avoid forcing parts to prevent damage

This Holder ORF mounting clip secures small appliance components to reduce movement and prevent rattling, helping panels and assemblies stay properly aligned for reliable operation. What it does

• Secures a component or panel to its mounting point to prevent shifting and vibration
• Helps stop rattling or intermittent contact caused by a loose fastener
• Restores proper alignment for covers, trim pieces, or internal brackets
• Supports reliable operation by keeping parts in their intended position

• Disconnect power to the appliance before beginning any repair.
• Remove surrounding trim or access panels to reach the clip; common tools include a screwdriver or nut driver.
• Replace only the damaged or missing clip; keep fasteners oriented as originally installed.

Auxiliary burner head that distributes flame on the small simmer burner of gas cooktops and ranges. Replaces a warped, clogged, or damaged head to restore reliable ignition, correct flame pattern, and consistent low-heat performance.

• Directs the gas/air mix through flame ports for even simmer heat
• Helps restore proper ignition when the old head is fouled or damaged
• Can help with delayed ignition or repeated clicking due to misaligned/blocked ports

• Shut off gas supply and disconnect power; allow the surface to cool completely
• Remove grate and burner cap; lift off the old head
• Clean the burner base and align the new head with the orifice and igniter; seat flat
• Reinstall the cap and grate; restore gas/power and verify flame quality and ignition

This is the gas cooktop/range rapid burner head. It directs gas and airflow to create an even, reliable flame on the large "rapid" burner, helping your cooktop heat quickly and cook evenly.

• Distributes gas through calibrated ports to form a stable flame on the rapid burner
• Can help resolve weak or uneven flames, delayed ignition, or frequent burner re-lighting
• Replacing a damaged, clogged, or warped head can restore proper burner performance
• Designed to fit the rapid (largest) burner position on compatible units

• Disconnect power and shut off gas before servicing
• Remove the burner cap, lift off the old head, and clean the mounting surface
• Align the new head with the orifice and locating tabs; seat it flat and secure any screws if present
• Reassemble, restore gas/power, and test for proper ignition and flame

This burner head sits atop the semi-rapid gas burner on the cooktop, shaping the flame and distributing heat evenly to your cookware for reliable day-to-day cooking performance.

• Directs gas and air mixture to create a stable, even flame on the semi-rapid burner
• Can help address uneven flames, poor ignition, or weak heating at that burner position
• Restores proper heat distribution when the original head is clogged, warped, or damaged
• Designed to fit the semi-rapid burner location as specified by the manufacturer

• Disconnect power and shut off gas before servicing
• Ensure the burner area is clean; remove debris that could affect flame pattern
• Align the ports and locating features carefully; do not overtighten any fasteners
• After installation, check for proper ignition and a consistent blue flame

The Grommet is an OEM part for Whirlpool gas cooktops. It forms a protective barrier and seal where wiring or mounting bolts pass through ventilation cutouts.

Causes of a bad grommet typically include degradation of the rubber material over time due to heat exposure during cooking. Physical stress from repeated installation/removal can also crack or loosen the seal.

Symptoms of a bad grommet include:

• Air leaks appearing around wiring/bolt openings
• Drafts disturbing burner or element temperatures
• Noise from loose fixtures rattling
• Risk of sparks near exposed connections

Replacing with an OEM grommet restores the protective seal while blending seamlessly with range aesthetics. Compatible brands include KitchenAid, Jenn-Air, and select Kenmore cooktop models.

The surface igniter is an OEM part for Whirlpool ranges and cooktops. It is responsible for generating the heat needed for gas burners to ignite. The igniter contains a small ceramic element inside that produces an electric spark whenever a burner is turned on.

Symptoms of a bad surface igniter include:

• Gas burners that fail to light or ignite intermittently
• Dim or weak burner flames
• Rattling or buzzing sounds coming from below the cooktop

Causes of failure are generally normal wear and tear over many burner ignitions. Mineral buildup or food debris could also potentially obstruct the electric spark.

This replacement igniter is also compatible with ranges, cooktops, and built-in ovens from Maytag, Jenn-Air, Amana, Magic Chef, Admiral, and several Kenmore models.

Surface ignitor restores the ignition spark to a gas range surface burner so the burner can light reliably. Use this direct replacement when a burner produces weak sparks or won't ignite. What it does:

• Generates the spark that ignites gas at a surface/burner assembly.
• Replaces a cracked, worn or non-sparking electrode to restore ignition.
• Commonly used when a burner clicks but does not light or produces intermittent sparks.
• Works as the single electrode component in a surface burner ignition assembly.

• Turn off electrical power and gas supply before service.
• Handle the ceramic tip carefully — avoid touching or bending the electrode.
• Ensure proper connection of the ignitor's wire and correct seating in the burner assembly.

This orifice spud directs and meters gas flow to a range or cooktop burner for proper combustion and consistent flame. Replacing a worn or damaged spud helps restore reliable ignition and more even heating at the affected burner. What it does

• Seats in the burner assembly to control the gas jet size and flow to the burner
• Ensures a correctly sized gas stream for stable flame and proper cooking temperature
• Common symptom: uneven or weak flame at one burner
• Common symptom: burner will not light or requires extended time to ignite

• Shut off gas supply and disconnect power before servicing; follow all safety precautions
• Use the correct OEM part number and orientation when installing to ensure proper fit
• Hand-tighten and then snug to OEM torque recommendations; avoid over-tightening which can damage threads

This orifice spud secures and aligns the gas orifice at the burner, ensuring a consistent flame for safe cooking. Replacing a worn or damaged spud restores proper burner performance and reliable ignition. What it does:

• Holds the orifice in place at the burner to maintain correct gas flow and flame shape
• Helps prevent uneven or weak flames and poor heat distribution
• Can resolve ignition issues or burners that will not light cleanly
• Works with the burner assembly to stabilize the burner head

• Shut off the appliance gas supply before starting any repair
• Basic hand tools may be required; follow the appliance service manual for disassembly
• Inspect surrounding burner parts and gaskets; replace if damaged

This orifice spud is the small gas-fitting that directs fuel from the valve to a burner so the burner can ignite and hold a steady flame. Replacing a worn or blocked spud restores proper gas flow to the burner. What it does:

• Guides and meters gas from the valve into the burner assembly for consistent ignition.
• Helps maintain correct flame shape and strength at the burner.
• Commonly linked to symptoms like weak or uneven flames, burner that won't light, or burners that sputter.
• Works as a direct replacement for the OEM orifice spud designated for the appliance.

• One orifice spud (1 piece).

• Turn off gas supply and disconnect power before servicing.
• Only use the correct orifice for your appliance and fuel type — do not modify the part.
• After installation, check all fittings for leaks with a soap-and-water solution or approved gas leak detector.
• Follow manufacturer instructions and local codes when reinstalling components.

Orifice spud is a small gas valve fitting that secures the orifice to the burner assembly, helping direct fuel to the burner for consistent ignition and stable flames. What it does:

• Secures the orifice to the gas valve/burner assembly so fuel is delivered correctly.
• Directs gas flow from the valve through the orifice into the burner port.
• Can cause burner ignition problems or uneven/weak flames when damaged or loose.
• Associated with reduced burner performance or a noticeable gas odor when connections are not tight.

• Turn off gas supply and electrical power before servicing any gas components.
• Replace only with the exact OEM part; tighten and seat per manufacturer instructions.
• Follow all local codes and safety practices when working on gas appliances.
