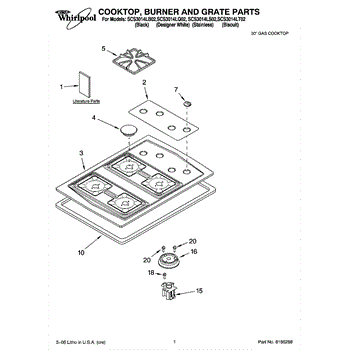

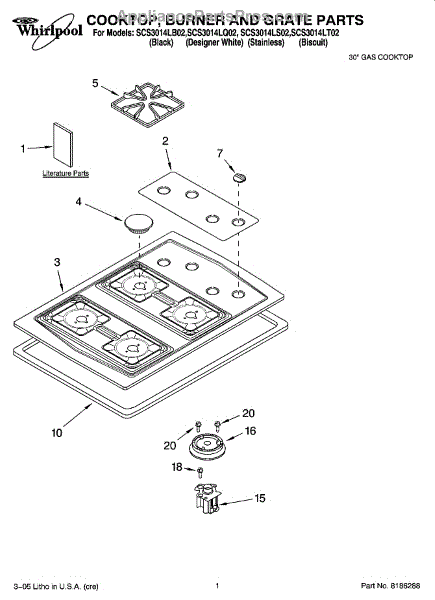

Parts for Whirlpool SCS3014LS02: 01 - Cooktop, Burner And Grate Parts

Color: Expresso

Color: Black. Other colors: For white use WP3191243, for almond use 3191244, for stainless steel use W11230936.

Color: Espresso

Color: Gray. Size: Small. For black order WP3191898. For the large cap order WP3191905.

Color: Espresso

This cooktop surface top replaces a damaged or worn cooktop to restore a smooth, usable cooking area and proper fit. It provides the finished surface that sits over the cooktop opening for a clean look and stable cooking zones. What it does:

• Replaces a cracked, chipped, or heavily scratched cooktop surface
• Restores a flat, stable cooking area so cookware sits evenly
• Helps prevent debris from falling into the cooktop cavity
• Can resolve fit or sealing issues caused by a warped or damaged top

• Disconnect electrical power (and gas if applicable) before starting any work
• Handle edges carefully — glass/porcelain surfaces can chip or crack if dropped
• Follow your appliance's service manual for correct fasteners, sealants, and alignment

The Range Burner Cap is an OEM replacement part designed for Whirlpool ranges. This burner cap fits medium-sized burners and evenly distributes the flame from the burner, providing stable cooking heat. It also acts as a protective cover, preventing debris from clogging the burner and ensuring efficient operation.

Causes of a bad burner cap can include regular wear and tear, damage from high temperatures, or accidental impact during cleaning or cooking.

Color: Gray

Symptoms of a faulty burner cap include:

• Uneven or inconsistent flames
• Lost or missing
• Visible cracks or warping on the cap

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Gray. Size: Large. Matching small cap: WP3191899. Color options: Black WP3191904.

Color: Black. This large cap measures about 3 inches in diameter. For gray order WP3191905. For the small cap order WP3191898.

Medium. Color: Black. Measures about 2-1/2 inches in diameter.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

Color: Espresso. Other colors: For grey use WPW10447925, for black use WPW10447925.

The Grate Kit is an OEM part for Whirlpool gas ranges. The burner grates sit on top of the stove, providing a stable surface for pots and pans during cooking. These grates are designed to withstand high temperatures and support cookware securely. Note: Kit of 4 grates

Causes of a bad grate can include prolonged exposure to heat, accidental dropping of heavy cookware, or normal wear and tear from regular use.

Symptoms of a bad grate include:

• Chipped or cracked grates
• Uneven or unstable surface for cookware
• Difficulty balancing pots and pans during cooking
• Rust or discoloration on the grate surface

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Grate Kit is an OEM part for Whirlpool gas ranges. The burner grates sit on top of the stove, providing a stable surface for pots and pans during cooking. These grates are designed to withstand high temperatures and support cookware securely. Note: Kit of 4 grates

Causes of a bad grate can include prolonged exposure to heat, accidental dropping of heavy cookware, or normal wear and tear from regular use.

Symptoms of a bad grate include:

• Chipped or cracked grates
• Uneven or unstable surface for cookware
• Difficulty balancing pots and pans during cooking
• Rust or discoloration on the grate surface

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This white control knob replaces a worn, cracked, or missing selector knob so you can restore tactile control and accurate setting selection. Simple cosmetic and functional replacement for common Whirlpool control panels. What it does

• Replaces a damaged or faded control knob so settings can be selected reliably.
• Provides a secure grip for turning temperature, cycle, or function selectors.
• Helps stop slipping, wobbling, or incomplete engagement when rotating the control.
• Restores a clean, matching appearance to the appliance control panel.

• Disconnect power (or unplug) before replacing to avoid electric shock.
• Most installations are tool-free — knob typically pulls straight off the shaft; if a set screw is present, loosen it first.
• Align the knob on the control shaft and press firmly into place; verify full function before reapplying power.

This orifice holder secures the burner orifice and helps direct gas to the burner for proper ignition. It replaces a worn or damaged holder to restore steady burner flame and reliable lighting. What it does:

• Holds and positions the burner orifice so gas flows correctly to the burner
• Ensures consistent gas delivery for stable ignition and flame shape
• Commonly used when a burner has weak or uneven flame or fails to light reliably
• Works with the factory orifice and valve components to maintain correct operation

• Turn off the appliance power and shut off the gas supply before servicing
• Inspect the orifice and surrounding seals; replace any damaged parts to prevent leaks
• Seat the holder fully and reassemble per the manufacturer's diagram
• After installation, check all connections for leaks and verify proper burner ignition

This orifice holder is the gas burner orifice assembly that secures the burner orifice to the valve and helps direct fuel to the cooktop burner for a steady, controllable flame. It replaces a worn or damaged holder to restore proper gas flow. What it does:

• Secures the orifice to the gas valve and aligns the orifice with the burner
• Directs and meters gas flow for consistent burner ignition and flame
• Commonly replaced when burners fail to light, flame is weak, or flame is uneven
• Works with the cooktop gas valve/orifice system to prevent misalignment or leaks when installed correctly

• One orifice holder assembly

• Turn off the gas supply and power to the appliance before servicing
• Only install the exact part specified for your model;
• Tighten fittings to the manufacturer's torque recommendations and test for leaks with a soap solution or approved gas leak detector

This G4 orifice holder mounts beneath the cooktop to secure the burner orifice and route gas from the valve to the burner head. Replacing a damaged holder helps restore proper gas flow and consistent burner performance.

• Holds and aligns the orifice for the G4-designated surface burner
• Channels metered gas from the valve to the burner head
• Supports stable, even flame and reliable ignition at that burner
• A worn, cracked, or stripped holder may cause weak/uneven flame, delayed ignition, or a gas odor near the burner

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool
• Remove burner caps/heads and access the holder
• Transfer the existing orifice spud if reusing, or install the correct orifice specified for your gas type
• Tighten fittings to spec and leak-test all gas connections with an approved solution before restoring service

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Size: Small

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: Large.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This genuine wire harness routes electrical signals and power between components to restore proper operation and connectivity. It replaces damaged or frayed wiring to help eliminate intermittent power, control failures, or non-responsive functions. What it does:

• Carries power and control signals between appliance components to enable normal operation
• Replaces worn, burned, or broken wires and connectors that cause intermittent or no power
• Helps resolve issues like unresponsive controls, motors not running, or lights that won't turn on
• Preserves factory routing and connector fit for a secure, reliable connection

• One complete wire harness as shown

• Disconnect power at the breaker or unplug the appliance before inspecting or replacing the harness
• Compare connectors and wire colors to the old harness to ensure correct fit before installing
• Secure wires along original routing and fasten any clips or ties to prevent rubbing or pinching

This single-conductor replacement wire restores an electrical connection between components in compatible Whirlpool appliances. It's a straightforward part used when a damaged or broken wire prevents normal operation. What it does

• Carries electrical current between terminals or components to enable operation.
• Replaces frayed, broken, or heat-damaged wiring that can cause intermittent or no power to a component.
• Common symptom: affected circuit or component won't power on or works sporadically.
• Helps re-establish a reliable connection when the original wire is corroded or has a broken conductor.

• Disconnect power (unplug appliance or shut off circuit breaker) before starting any repair.
• Use proper wire connectors/crimping techniques and ensure secure, insulated connections.
• Verify correct routing and strain relief to avoid contact with moving parts or heating elements.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
