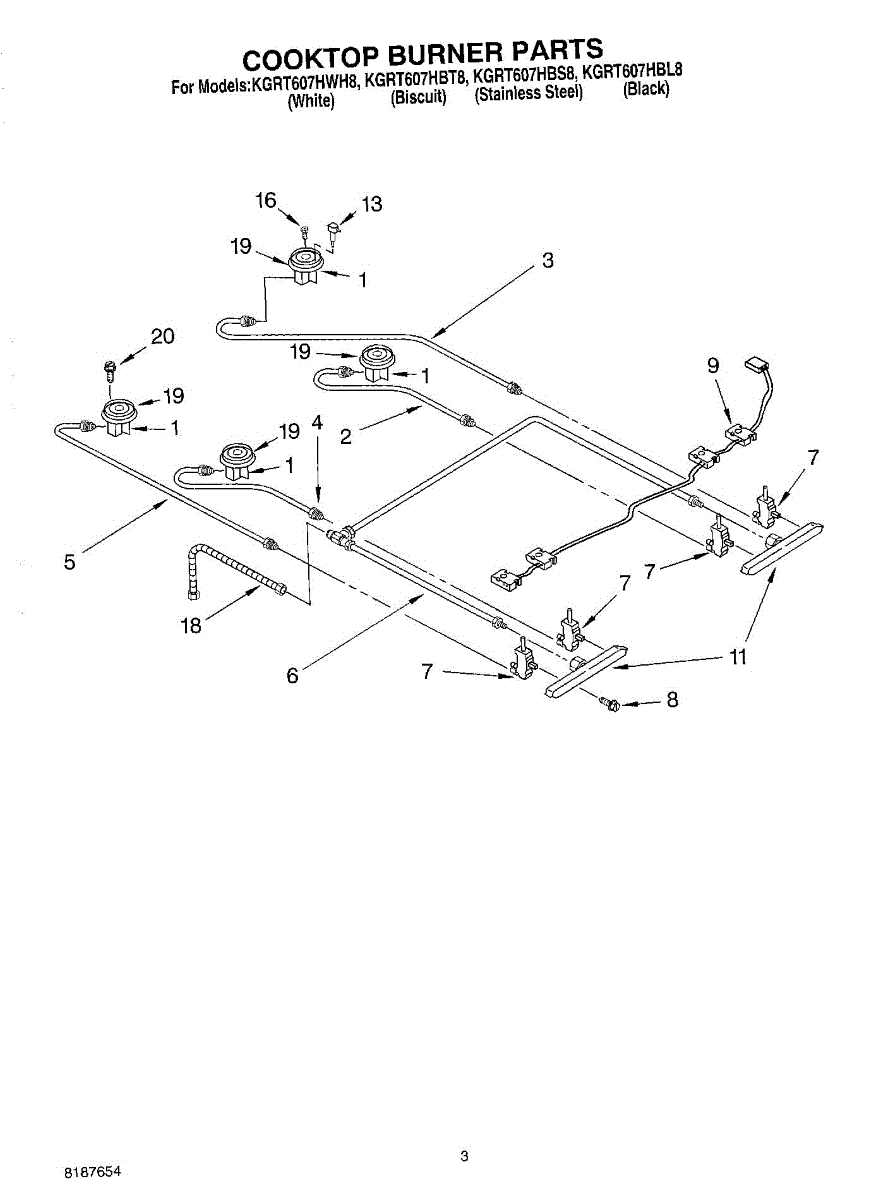

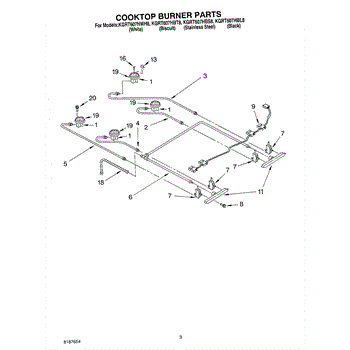

Parts for Kitchenaid KGRT607HBS8: 02 - Cooktop Burner Parts

Includes spark electrode.

Includes spark electrode.

Location: Right front.

Location: Right rear.

Location: Left front.

Location: Left rear.

Replacement electrode that creates the spark needed to light a gas range or cooktop burner, restoring reliable ignition and consistent burner operation for safe, predictable cooking. What it does

• Produces the spark at the burner to ignite gas when the control is turned on.
• Replaces a cracked, fouled, or non-sparking electrode that prevents burners from lighting.
• Can resolve weak, intermittent, or no-ignition symptoms and reduce continuous clicking.
• Works as the ignition element for the cooktop/range burner assembly.

• Disconnect power and shut off the gas supply before starting any service; allow the appliance to cool completely.
• Handle the ceramic tip and wiring gently—do not force or bend the electrode.
• Use basic hand tools to access and secure the electrode; confirm correct alignment and tight mounting.

Locaction: Left front. 14,000 BTU.

Burner orifice for small base. 6,000 BTU.

Burner orifice for large base. 12 BTU.

Location: Left front. 14,000 BTU.

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Size: Small

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: Large.

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.
