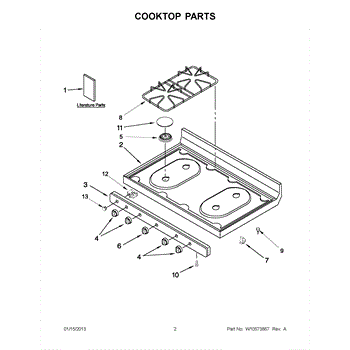

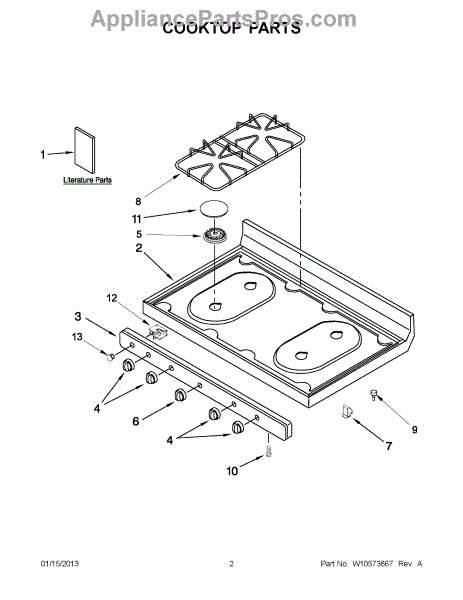

Parts for Amana AGR3530AAW0: 01 - Cooktop Parts

Color: White. For biscuit use WP98017619T. For black use WP98017619B.

Color: White

This burner head sits on the cooktop and channels gas through precision ports to produce an even flame. Replacing a worn or clogged head restores quick ignition and consistent heat across the burner.

• Mixes gas and air and distributes the flame evenly around the burner
• Works with the spark igniter for reliable lighting
• Can address delayed ignition or a burner that won't light due to clogged or damaged ports

• Disconnect power and shut off the gas supply; allow the surface to cool completely
• Remove the grate and burner cap; remove the center retaining screw and lift off the old head
• Clean the orifice and igniter area; align and seat the new head flat over the orifice and igniter
• Reinstall the cap and grate; restore utilities and verify ignition and a uniform flame pattern (do not enlarge or poke burner ports)

The Clip is an OEM component specifically designed for Whirlpool ranges. This clip plays a role in securely holding and mounting components within the appliance.

The clip is designed to securely grip parts in place, preventing unwanted movement or dislodging that could impact the operation or result in damage. It allows for components to be effortlessly installed while remaining firmly affixed.

Causes of a bad clip can include wear and tear over time, damage due to excessive force or impact, or deterioration from heat exposure.

Symptoms of a bad clip include:

• Loose or detached components inside the appliance
• Increased vibration or unwanted noise during operation
• Components that are not sitting securely or properly installed
• Difficulty accessing or removing parts that rely on the clip

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This bumper is a small cushioning stop used at contact points on the appliance. It absorbs impact and prevents metal-to-metal contact to reduce noise and protect surfaces when doors, drawers, lids, or racks close.

• Cushions closing to soften impact and protect finishes
• Serves as a stop to maintain proper spacing at the contact point
• Helps reduce slamming, squeaks, and rattles
• Replace if cracked, flattened, missing, or if new clunking noises occur when closing

• Disconnect power (and shut off water/gas if applicable) before servicing
• Note the bumper's original location and orientation
• Remove the old bumper and clean the mounting area or hole
• Press the new bumper fully into place and verify a secure fit and proper clearance

Color: Black. Includes one double grate. For gray order WPW10180089.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: Black. Measures about 3 inches in diameter. For grey use WP98017461.

This replacement light lens covers the appliance's bulb, protecting it from contact, moisture, and splashes while diffusing illumination. Replacing a cracked or missing lens restores safe, even lighting and keeps the bulb properly shielded. What it does:

• Shields the bulb from contact, moisture, and debris
• Diffuses light for more even illumination with reduced glare
• Helps protect the socket area from contamination
• Typical symptoms: cracked, warped, or missing lens; discoloration; exposed bulb; harsh or uneven lighting

• Includes: 1 light lens

• Disconnect power to the appliance before servicing; allow the lamp/area to cool completely
• Wear gloves and eye protection when handling an old or broken lens
• Remove retaining screws, tabs, or clips and note lens orientation for reassembly
• Reuse existing hardware if required; do not overtighten; restore power and test light operation
