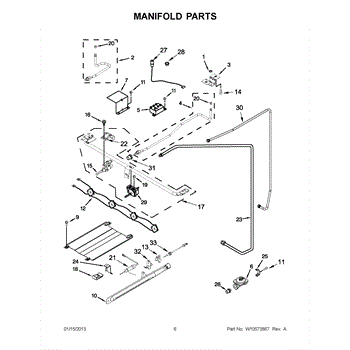

Parts for Amana AGR3530AAW0: 03 - Manifold Parts

A small lock-style nut that secures a threaded shaft or fastener to prevent loosening from vibration and normal use. Restores a firm connection so the appliance parts stay aligned and operate quietly and reliably. What it does:

• Locks a threaded connection in place to prevent backing off from vibration
• Keeps rotating or mounted components secured to reduce wobble or movement
• Helps stop noises caused by loose fasteners or shifting parts
• Restores proper fit where a worn or missing nut allowed play

• Disconnect power (and water if applicable) before starting any repair
• Use the correct size wrench/socket and hold mating hardware to avoid twisting other components
• Inspect threads for damage; replace mating fasteners if stripped
• Tighten securely to OEM guidance; avoid over-tightening which can damage threads

Used for the front burner.

This mounting bracket secures a surface burner assembly to the cooktop, keeping the burner stable for safe, even cooking. It replaces a worn or broken bracket to restore proper burner alignment and support. What it does:

• Holds the surface burner or burner bowl firmly in place on the cooktop
• Prevents burner wobble, misalignment, and uneven heating
• Helps maintain correct spacing for safe gas/electric operation
• Addresses symptoms like a loose or tilted burner or rattling during use

• Disconnect power and gas supply before beginning work
• Remove burner head and grates as needed to access the bracket
• Use proper hand tools; avoid overtightening fasteners

Used for the rear burner.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This appliance screw secures panels, brackets, and internal components. Replacing a stripped or missing screw keeps parts tight and aligned, reducing vibration and preventing noise for reliable day-to-day operation.

• Secures mounting points for panels, brackets, or assemblies
• Replaces stripped, rusted, or missing hardware to restore a solid attachment
• Helps reduce rattling, vibration, and misalignment from loose fasteners
• Maintains proper fit so components operate as intended

• Disconnect power; turn off water or gas before service
• Match the screw to its original location and replace one at a time
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver type/size specified for your model

This surface burner valve controls the flow of natural gas to a cooktop or range-top burner. Replacing a worn valve restores smooth flame adjustment and helps prevent leaks for safer, reliable everyday cooking performance. What it does:

• Regulates gas flow to one surface burner as you turn the control knob
• Provides a positive OFF shutoff to stop gas when the knob is off
• Helps deliver consistent flame levels from simmer to boil
• Common symptoms: burner won't light or is inconsistent, flame won't adjust, gas odor near the knob, or the knob is stiff/loose

• Disconnect power and shut off the gas supply before servicing
• Remove the knob and access the manifold; transfer burner tubing and any brackets/spark switch from the original valve to the replacement
• Use two wrenches on compression fittings; tighten securely without overtightening
• After reassembly, leak-check connections with soapy water and verify proper flame; follow your model's conversion procedure if changing gas type

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Natural gas.

3/8 to 9/16

This surface burner spark electrode creates the electrical arc that lights the gas at your cooktop/range burner. Replace a cracked or fouled electrode to restore quick, reliable ignition on the affected burner and reduce repeated clicking.

• Generates the high-voltage spark that ignites surface-burner gas
• Promotes fast, consistent ignition and stable flame startup
• Common symptoms: burner won't light, lights intermittently, or sparks weakly at one burner while others work
• Visual clues: cracked porcelain insulator, bent tip, or heavy buildup on the electrode

• Disconnect power and shut off gas supply before servicing
• Remove grate, cap, and burner head to access the electrode
• Transfer mounting hardware from the old electrode
• Route and reconnect the lead securely; keep it away from heat and sharp edges, then test for proper spark before reassembly

The Surface Burner Ignitor is an OEM part for Whirlpool gas ranges. This part ignites the gas to create a flame on the burner, allowing for efficient cooking.

Causes of a bad ignitor can include wear and tear from regular use, electrical issues, or physical damage to the ignitor element.

Symptoms of a bad surface burner ignitor include:

• The burner not lighting or taking longer to light
• Clicking sounds without ignition
• Weak or inconsistent flame
• The smell of gas without ignition

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Clip is an OEM part for Whirlpool ranges. This part holds the surface igniter in place, ensuring that it remains properly positioned to ignite the gas burner efficiently.

Causes of a bad surface igniter clip can include wear and tear from regular use, damage from high heat exposure, or breakage due to improper handling during maintenance.

Symptoms of a bad surface igniter clip include:

• The igniter not staying in place
• Difficulty in lighting the burner
• The burner not igniting at all
• Visible damage or deformation of the clip

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This fitting tube connects a section of appliance tubing to the service plumbing to restore a sealed fluid path and prevent leaks. It's a direct-replacement plumbing fitting used where small-diameter tubing joins a fixed port. What it does

• Forms a secure connection between tubing and a plumbing port to maintain water/condensate flow
• Stops symptoms like visible leaks, pooling water, or reduced fill/drain performance when the original fitting is damaged
• Provides the proper interface for OEM tubing size and routing in the appliance
• Helps restore normal operation without altering factory plumbing

• One fitting tube

• Disconnect power and shut off water supply before servicing
• Drain remaining water from lines to reduce mess and pressure before removing old fitting
• Hand-start fittings then tighten to OEM torque; avoid over-tightening which can crack ports or tubing
• Inspect connections for leaks after restoring water and power; re-tighten if needed

This pilot thermostat is the oven temperature control that senses heat and helps regulate burner operation for consistent cooking. It replaces a worn or faulty thermostat to restore accurate temperature response and reliable oven ignition. What it does:

• Senses oven temperature and signals the burner/pilot system to maintain set heat levels
• Helps the oven light and hold temperature when the pilot or main burner is used
• Commonly used when the oven won't heat, cycles excessively, or fails to maintain consistent temperature
• Works as the temperature-sensing control element in gas oven pilot systems

• One pilot thermostat

• Turn off power and shut off gas supply before starting any service
• Handle thermostat gently; avoid bending or stressing the sensing element or capillary tube
• Verify wiring connections match the old part; replace like-for-like

This pilot thermocouple monitors the standing pilot flame and signals the safety valve so gas only flows when a flame is present. Replacing a weak or failed thermocouple helps restore dependable pilot hold-in and consistent burner ignition.

• Senses the pilot flame and generates a small signal to keep the safety valve/magnet energized
• Helps prevent gas flow if the pilot goes out
• Common symptoms: pilot won't stay lit, oven/burner won't ignite, intermittent flame dropout
• Resolve intermittent heating caused by a weak or mispositioned pilot signal

• Shut off gas supply and disconnect power; allow the appliance to cool completely
• Access the pilot assembly; disconnect the old thermocouple from the safety valve and pilot bracket
• Route the new thermocouple along the original path; start all threads by hand to avoid cross-threading and do not overtighten
• Restore gas and check all connections with a non-corrosive leak-detection solution; relight/adjust the pilot per the manufacturer's instructions
