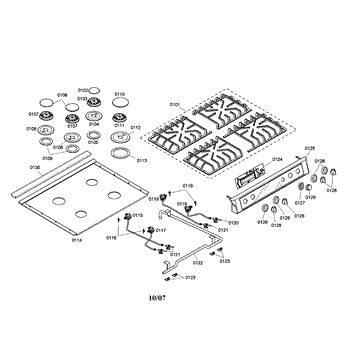

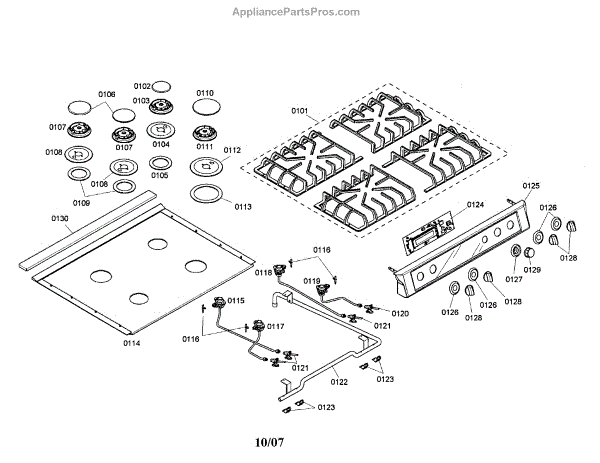

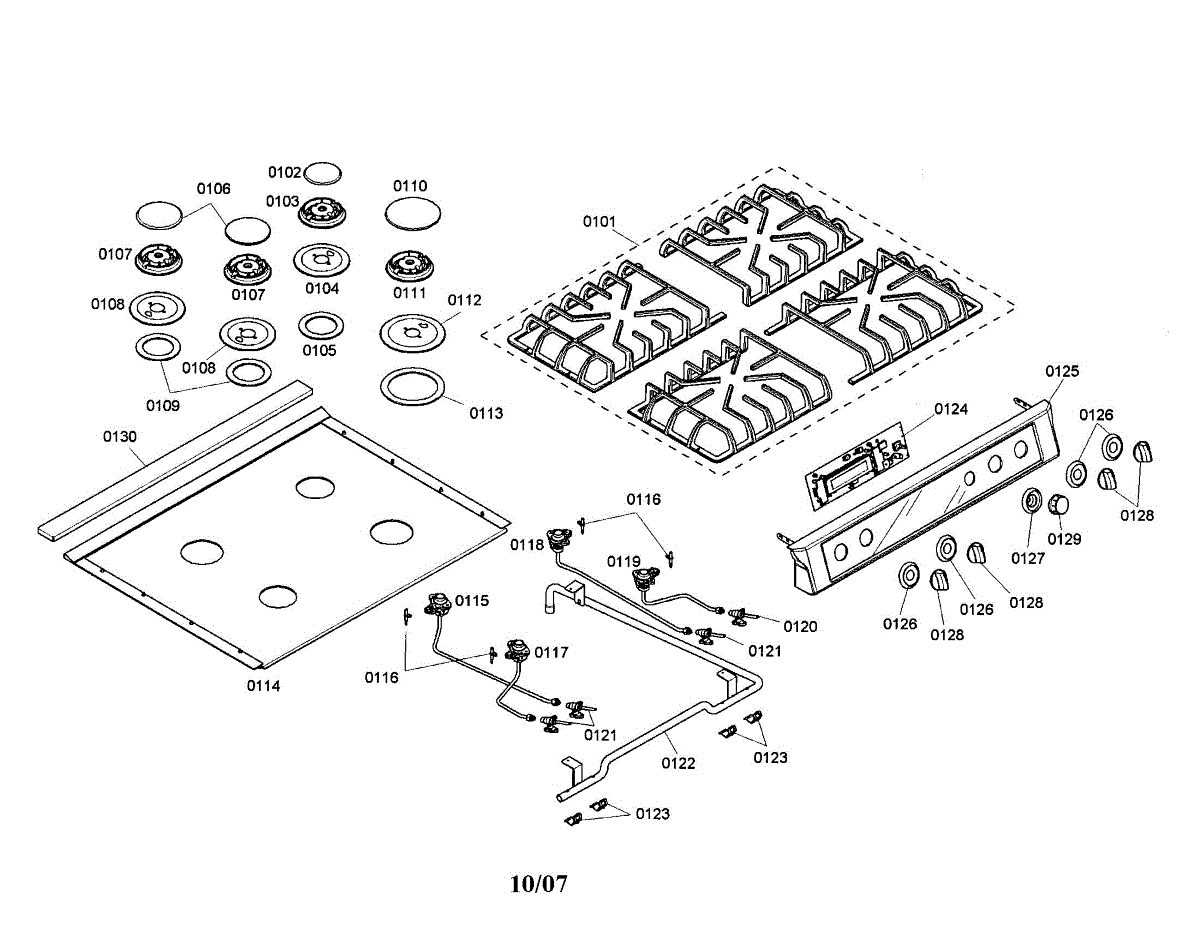

Parts for Bosch HDI7032U/03: Cooktop Parts

This burner housing is the metal mounting and enclosure that secures a gas burner and its ignition components, restoring proper burner alignment and stable flame control for safe cooking. Use to replace worn, rusted, or damaged housings. What it does:

• Holds and positions the burner head, electrode/igniter, and associated fittings for correct ignition and flame shape
• Shields and directs gas flow around the burner for consistent combustion
• Prevents burner wobble and helps maintain safe clearances between the flame and appliance cabinet
• Commonly replaced when the housing is bent, corroded, cracked, or causing ignition/misfire issues

• One burner housing assembly

• Turn off gas supply and disconnect power to the appliance before beginning work
• Only attempt installation if you are comfortable with gas appliance repair
• Inspect and replace any worn gaskets, screws, or mounting hardware as needed; ensure proper alignment of the igniter/electrode
• After installation, check for gas leaks and verify correct ignition and flame behavior before normal use

This rubber seal provides a watertight barrier where installed, helping prevent leaks and maintain proper appliance performance. It replaces a worn or damaged seal to restore reliable sealing and reduce water damage risk. What it does:

• Creates a watertight seal at the mating surface to prevent leaks
• Helps maintain proper pressure/flow where the seal is used
• Commonly replaced when cracking, hardening, or visible wear appears
• Can stop intermittent leaking or water pooling near the appliance

• One rubber seal (single gasket as shown)

• Replace with the appliance powered off and water supply disconnected
• Clean mating surfaces before installing to ensure proper sealing
• Inspect surrounding components for damage while replacing the seal

The Burner Cap is an OEM part for Bosch Ranges. This part fits atop the burner assembly, playing a vital role in controlling and diffusing the flame for cooking.

A common issue with a malfunctioning or worn-out Burner Cap involves deterioration over time due to exposure to heat, grease, or cleaning agents. Damage or deformation to the cap can disrupt the flame pattern, leading to inefficient cooking or inconsistent heat distribution.

Symptoms of a defective Burner Cap may include:

• Uneven or erratic flames during burner operation
• Inadequate heat output or difficulties in achieving desired temperatures
• Visible signs of damage or wear on the burner cap's surface

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This burner housing secures the surface burner assembly on compatible gas cooktops and ranges, restoring proper burner alignment and stable flame performance. It replaces damaged or warped housings that cause burner wobble or inconsistent ignition. What it does

• Supports and positions the burner head and cap for correct flame pattern
• Aligns the igniter/electrode and maintains clearance from other components
• Helps prevent burner wobble, misalignment, and uneven heating
• Use when housing is cracked, corroded, bent, or otherwise damaged

• Shut off gas supply and power to the appliance before starting work
• Remove grates and burner caps to access the housing; keep track of fasteners
• Replace with the exact OEM part and secure fasteners without over-tightening

This rubber seal forms a watertight gasket used on the appliance to prevent leaks and keep internal compartments sealed during operation. It restores proper sealing to reduce visible water or drips and helps maintain cleaning performance. What it does:

• Creates a tight seal to prevent water from escaping the appliance during use
• Helps maintain correct internal water containment for effective operation
• Can reduce leaking, puddling, or moisture appearing around the appliance
• Restores the original sealing surface where worn, cracked, or compressed

• Inspect mating surfaces and remove debris before installing the new seal for a proper fit
• Press the seal fully into its channel or groove until seated evenly around the perimeter
• If adhesive or clips are used on the original part, reuse or replace them per the manufacturer's instructions
• Disconnect power and water (if applicable) before attempting replacement

The Electrode is an OEM component specifically designed for select Bosch gas range models featuring a pilot ignition system. Located near the gas valve, it initiates sparking to reliably light burners on demand. Consistent placement ensures safe and dependable burner ignition.

Symptoms of a faulty electrode commonly involve failure to produce sparks stopping burners from lighting properly. Regular flareups increase electrode wear warranting timely replacement.

Causes of a bad electrode include normal arc erosion reducing spark output. Deposits inhibiting consistent contact necessitate cleaning or a component change.

Causes of a bad electrode can involve:

• Burners lighting sporadically or requiring multiple ignitions
• Pilot lights repeatedly going out between uses
• Inability to ignite burners for cooking

This OEM Bosch part is also compatible with some Dacor, Thermador, and Blomberg gas ranges.


This jet holder is the mounting support that secures a dishwasher spray arm nozzle assembly, helping maintain proper spray alignment for consistent cleaning performance. It replaces a worn or broken holder that lets the arm wobble or spin incorrectly. What it does:

• Anchors the spray arm or nozzle assembly so the spray arm rotates smoothly and stays aligned
• Restores proper water spray pattern when a damaged holder allows the arm to wobble or detach
• Helps stop leak paths or reduced cleaning due to misdirected spray
• Works with existing spray arm and fasteners to return normal operation

• One jet holder

• Disconnect power and water to the appliance before starting any repair
• Access typically requires removing the lower or upper spray arm and any kickplate or tub components; retain all fasteners
• Inspect the spray arm and mounting hardware for related wear and replace if damaged

This water inlet valve controls dishwasher water flow during fill cycles, restoring proper filling and preventing overfill. Replace a faulty valve to stop no-fill, slow-fill, or continuous-fill issues and restore normal wash cycles. What it does:

• Opens and closes to admit water into the dishwasher during fill cycles
• Maintains correct water flow and pressure for proper wash performance
• Stops water flow if inlet fails closed or prevents filling if stuck open
• Common symptom link: dishwasher won't fill, fills slowly, or shows error/overflow conditions

• One water inlet valve

• Disconnect power and shut off the water supply before starting
• Turn off the breaker; water and electrical safety first
• Basic hand tools typically required; keep track of hose clamps and fittings
• Inspect inlet hoses and gaskets and tighten or replace clamps as needed

This clamp secures flexible hoses and small tubes to fittings, keeping connections tight to help prevent leaks and movement. It's a small replacement clip used on water and drain lines in many appliances. What it does

• Holds a hose or tube firmly to a barb or nipple to maintain a sealed connection
• Helps stop leaks caused by loose or damaged hose connections
• Prevents hoses from slipping off during operation and reduces vibration noise
• Used wherever a small retaining clamp is required on water or drain lines

• One clamp

• Turn off power and shut off water supply before replacing the clamp
• Slide clamp over the hose, push hose fully onto the fitting, then compress or tighten clamp as required
• Use pliers or the correct tool for the clamp type; avoid damaging the hose when installing
• Replace if corroded, cracked, or not seating properly

This is a replacement oven control board manufactured by Bosch. The oven control board is the oven's brain and handles all the functions. It also includes the display and provides users with the ability to control functionality, like bake and broil, setting timers, and more. While the oven control board does not include moving parts, heat and moisture can damage soldered components and lead to failure. Signs that the control board may need to be replaced include lack of information on the display, inability to control specific functions, or complete lack of operability. Note that this part is often misdiagnosed, so make sure to check the old board's operability with a multimeter before replacing it. To replace the oven control board, first remove the exterior cowling. Locate the wiring harness and disconnect it before removing the mounting screws. Install the replacement part following these steps in reverse.This genuine OEM part is sold individually. It only fits Bosch Thermador ovens.

This rubber grommet cushions and seals appliance components to reduce vibration, protect wiring or hoses, and help maintain a tight fit where parts pass through a panel or mounting point. It's a small but important wear item. What it does:

• Cushions vibrations and prevents metal-to-metal contact that can cause noise or wear
• Seals openings to help keep moisture, debris, and dust out of sensitive areas
• Protects hoses, wires, and tubing from chafing where they pass through panels
• Helps hold small components or fasteners in place at their mounting points

• Replace with the same size and shape grommet to ensure a proper fit and seal
• Inspect the surrounding area for wear or damage before installing
• Use basic hand tools; disconnect power and water before servicing
• If access requires disassembly, keep fasteners organized and follow OEM guidelines

This sealing ring creates a watertight seal in the dishwasher pump/motor area to help prevent leaks and protect the motor assembly. It's a small but essential replacement for worn or damaged seals. What it does:

• Seals pump housing joints to stop water leaks beneath the dishwasher
• Helps maintain proper water pressure and circulation for cleaning performance
• Prevents water from reaching the motor and electronics, reducing risk of damage
• Replaces brittle, cracked, or flattened seals that commonly cause under-unit leaks

• One sealing ring

• Turn off power and water to the appliance before starting any repair
• Inspect mating surfaces and clean away debris or buildup before installing the new ring
• Lubricate the seal lightly with OEM-recommended lubricant or a thin film of water if needed to ease installation
• If multiple seals or gaskets show wear, replace them together to ensure a complete seal.
