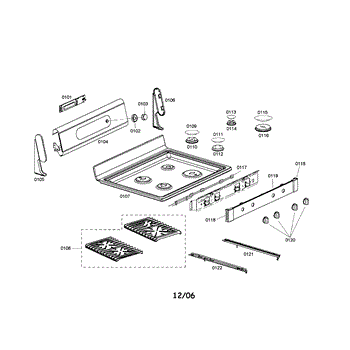

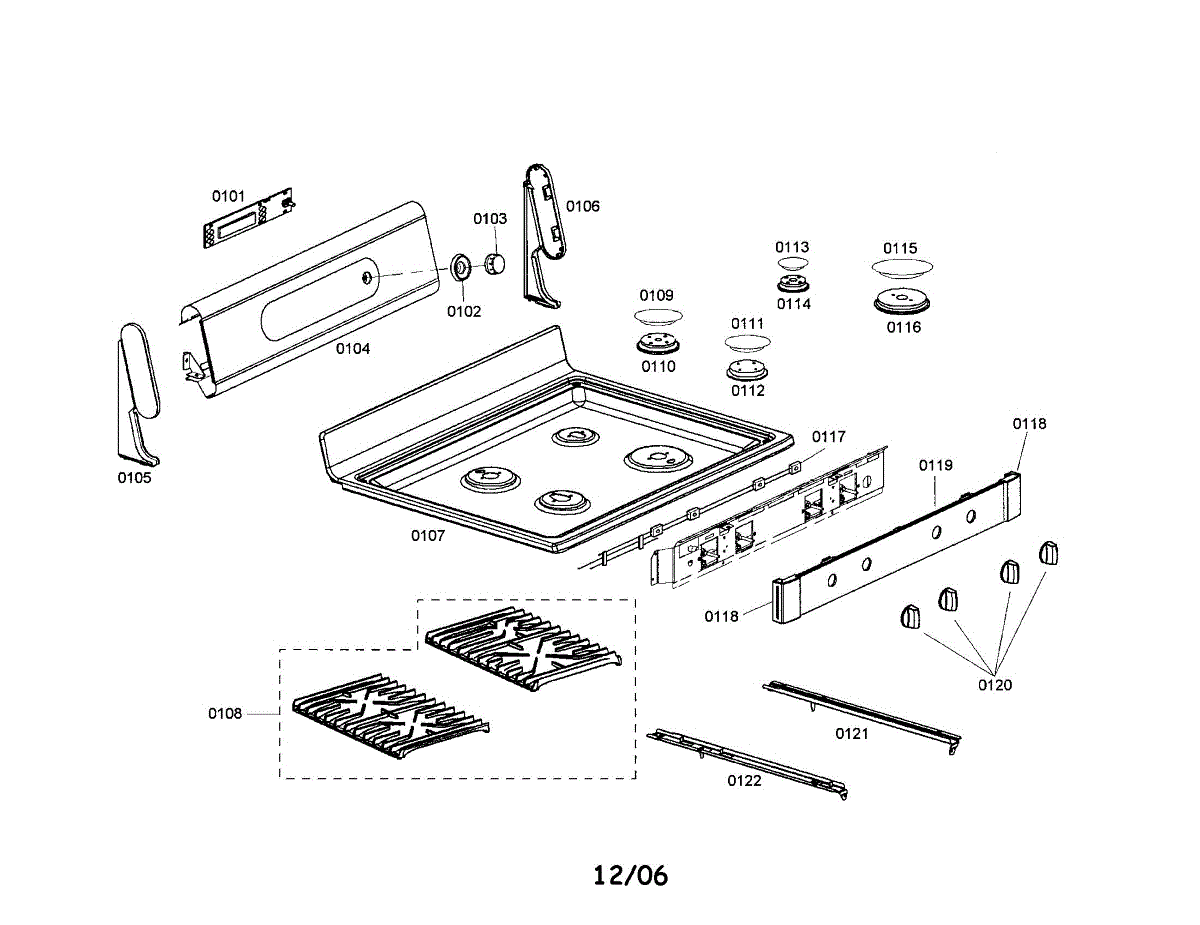

Parts for Bosch HDS7132U/01: Cooktop Parts

This is a replacement oven control board manufactured by Bosch. The oven control board is the oven's brain and handles all the functions. It also includes the display and provides users with the ability to control functionality, like bake and broil, setting timers, and more. While the oven control board does not include moving parts, heat and moisture can damage soldered components and lead to failure. Signs that the control board may need to be replaced include lack of information on the display, inability to control specific functions, or complete lack of operability. Note that this part is often misdiagnosed, so make sure to check the old board's operability with a multimeter before replacing it. To replace the oven control board, first remove the exterior cowling. Locate the wiring harness and disconnect it before removing the mounting screws. Install the replacement part following these steps in reverse.This genuine OEM part is sold individually. It only fits Bosch Thermador ovens.

This sealing ring creates a watertight seal in the dishwasher pump/motor area to help prevent leaks and protect the motor assembly. It's a small but essential replacement for worn or damaged seals. What it does:

• Seals pump housing joints to stop water leaks beneath the dishwasher
• Helps maintain proper water pressure and circulation for cleaning performance
• Prevents water from reaching the motor and electronics, reducing risk of damage
• Replaces brittle, cracked, or flattened seals that commonly cause under-unit leaks

• One sealing ring

• Turn off power and water to the appliance before starting any repair
• Inspect mating surfaces and clean away debris or buildup before installing the new ring
• Lubricate the seal lightly with OEM-recommended lubricant or a thin film of water if needed to ease installation
• If multiple seals or gaskets show wear, replace them together to ensure a complete seal.

This oven control knob lets you select temperatures and cooking functions with a smooth, precise turn. It restores easy, accurate control when the original knob is worn, cracked, or missing, keeping your range looking and working its best.

• Turns the oven's selector/temperature shaft to choose settings
• Replaces knobs that are loose, broken, stripped, or missing
• Helps resolve issues like slipping when turned or inability to select temperatures
• Maintains a clean, factory look with a stainless-style finish

• Disconnect power and allow the appliance to cool before servicing
• Pull the old knob straight off the control shaft; avoid prying against the panel
• Align the knob's flat/D-shaped insert with the shaft and press firmly until seated
• Test for smooth rotation and proper engagement of oven functions

This replacement grill grid restores a flat, stable cooking surface so food cooks evenly and stays off the burner. Designed to fit compatible Bosch countertop grills and grilling modules for reliable performance. What it does:

• Provides a stable, heat-resistant surface for grilling and searing foods
• Keeps food elevated above the burner for even heat distribution
• Replaces bent, warped, or damaged grill surfaces that cause uneven cooking
• Helps prevent food from falling into the burner area during use

• One grill grid

• For safety, disconnect power and allow appliance to cool completely before removing or installing the grid
• Handle with care—edges may be sharp and surfaces hot after recent use
• Slide or position the grid into the existing support rails; no special tools typically required

The Burner Cap is an OEM part for Bosch Ranges. This part fits atop the burner assembly, playing a vital role in controlling and diffusing the flame for cooking.

A common issue with a malfunctioning or worn-out Burner Cap involves deterioration over time due to exposure to heat, grease, or cleaning agents. Damage or deformation to the cap can disrupt the flame pattern, leading to inefficient cooking or inconsistent heat distribution.

Symptoms of a defective Burner Cap may include:

• Uneven or erratic flames during burner operation
• Inadequate heat output or difficulties in achieving desired temperatures
• Visible signs of damage or wear on the burner cap's surface

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This burner housing secures the surface burner assembly on compatible gas cooktops and ranges, restoring proper burner alignment and stable flame performance. It replaces damaged or warped housings that cause burner wobble or inconsistent ignition. What it does

• Supports and positions the burner head and cap for correct flame pattern
• Aligns the igniter/electrode and maintains clearance from other components
• Helps prevent burner wobble, misalignment, and uneven heating
• Use when housing is cracked, corroded, bent, or otherwise damaged

• Shut off gas supply and power to the appliance before starting work
• Remove grates and burner caps to access the housing; keep track of fasteners
• Replace with the exact OEM part and secure fasteners without over-tightening

The Burner Cap is an OEM component for Bosch Ranges. This crucial part fits atop the burner assembly, playing a vital role in controlling and diffusing the flame for cooking.

A common issue with a malfunctioning or worn-out Burner Cap involves deterioration over time due to exposure to heat, grease, or cleaning agents. Damage or deformation to the cap can disrupt the flame pattern, leading to inefficient cooking or inconsistent heat distribution.

Symptoms of a defective Burner Cap may include:

• Uneven or erratic flames during burner operation
• Inadequate heat output or difficulties in achieving desired temperatures
• Visible signs of damage or wear on the burner cap's surface

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This burner housing secures and positions the cooktop's top burner components for stable ignition and even heat. Replacing a damaged housing restores proper burner alignment and helps prevent loose parts that affect flame performance. What it does:

• Holds the top burner head, igniter, and related components in the correct position
• Maintains proper alignment for reliable ignition and a steady flame
• Replaces bent, cracked or corroded housings that can cause loose burner parts or irregular flame
• Works with existing burner caps, heads, and igniters

• Turn off the appliance and disconnect gas and power before servicing
• Inspect and replace any worn gaskets, seals, or fasteners when reinstalling

This burner housing is the metal mounting and enclosure that secures a gas burner and its ignition components, restoring proper burner alignment and stable flame control for safe cooking. Use to replace worn, rusted, or damaged housings. What it does:

• Holds and positions the burner head, electrode/igniter, and associated fittings for correct ignition and flame shape
• Shields and directs gas flow around the burner for consistent combustion
• Prevents burner wobble and helps maintain safe clearances between the flame and appliance cabinet
• Commonly replaced when the housing is bent, corroded, cracked, or causing ignition/misfire issues

• One burner housing assembly

• Turn off gas supply and disconnect power to the appliance before beginning work
• Only attempt installation if you are comfortable with gas appliance repair
• Inspect and replace any worn gaskets, screws, or mounting hardware as needed; ensure proper alignment of the igniter/electrode
• After installation, check for gas leaks and verify correct ignition and flame behavior before normal use

This cable harness is the wiring assembly that links dishwasher controls and internal components, restoring reliable electrical connections and helping resolve intermittent or failed component operation. Designed to replace a damaged or corroded factory harness. What it does

• Routes power and signals between the control board and internal parts so components can operate correctly
• Replaces broken, frayed, or corroded wires that cause intermittent power or communication failures
• Helps address symptoms such as devices not powering, erratic operation, or components that work intermittently
• Maintains correct wire routing and connector fit to prevent shorting or loose connections

• One cable harness assembly as shown

• Disconnect power to the appliance before starting any repair
• Compare the harness and connector shapes to the original before installation to ensure correct fit
• Handle connectors by the housings; avoid pulling on individual wires

This mounting bracket secures appliance components in place to restore proper alignment and stability. It's a simple replacement part that helps reduce rattling and supports correct panel or assembly positioning. What it does:

• Secures a panel or assembly to the appliance frame to prevent movement and vibration
• Restores proper alignment for doors, panels, or internal components
• Helps stop rattling, noises, or loose components that occur when a support bracket fails
• Provides a direct mechanical replacement—no electrical function

• One replacement mounting bracket

• High-level: remove power and water to the appliance before starting repairs
• Use basic hand tools; keep fasteners from the original part for reinstallation unless new ones are supplied
• If the bracket mounts a door or heavy panel, support the panel during removal and reinstallation to avoid damage

The Oven Light Switch is an OEM part for Bosch ranges. It engages convenient interior illumination through a single motion, allowing monitoring of baked goods without compromising temps.

Causes of a bad oven light switch can include failures from the natural stresses of constant clicking associated with opening and closing the oven door.

Symptoms of a bad oven light switch include:

• Dim or unresponsive lights even when the door is opened properly
• Inability to turn lights off, leaving them burning needlessly
• Stuck in either the on or off position without toggle functionality
• Potentially hazardous exposed live terminals under switch housings

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.
