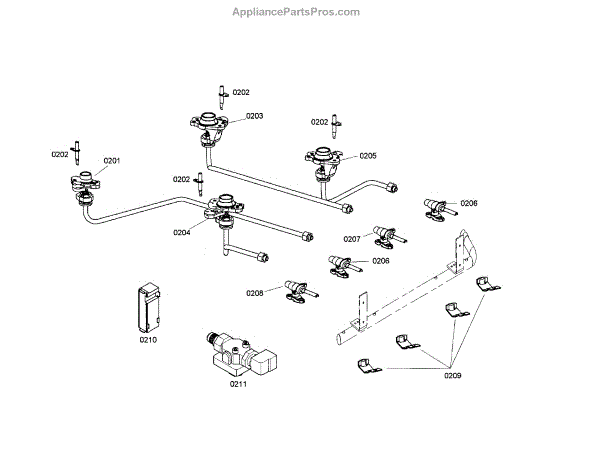

Parts for Bosch HDS7132U/01: Burners Parts

Replacement holder used to secure internal parts inside the appliance, restoring proper positioning to reduce rattling and help components remain aligned during normal operation and improve reliability. What it does:

• Holds internal components or assemblies in place to prevent unwanted movement.
• Reduces vibration and rattling that can occur during operation.
• Helps maintain correct alignment of parts that can affect function or contact.
• Common symptom: loose or moving parts and audible noise during use.

• Disconnect power to the appliance before beginning any work; shut off water supply if the repair involves water-connected models.
• Use basic hand tools; keep track of screws and clips removed during service.
• Refer to the appliance's service manual or parts diagram for correct location and orientation.

The Electrode is an OEM component specifically designed for select Bosch gas range models featuring a pilot ignition system. Located near the gas valve, it initiates sparking to reliably light burners on demand. Consistent placement ensures safe and dependable burner ignition.

Symptoms of a faulty electrode commonly involve failure to produce sparks stopping burners from lighting properly. Regular flareups increase electrode wear warranting timely replacement.

Causes of a bad electrode include normal arc erosion reducing spark output. Deposits inhibiting consistent contact necessitate cleaning or a component change.

Causes of a bad electrode can involve:

• Burners lighting sporadically or requiring multiple ignitions
• Pilot lights repeatedly going out between uses
• Inability to ignite burners for cooking

This OEM Bosch part is also compatible with some Dacor, Thermador, and Blomberg gas ranges.


This replacement holder secures internal components in compatible Bosch appliances to restore proper alignment and reduce noise from loose parts. It's a simple swap that helps maintain reliable operation and prevents shifting or rattling. What it does

• Secures and positions internal components or assemblies to keep them stable during operation
• Helps stop rattling, vibration noise, and misalignment caused by a worn or broken holder
• Restores part fit where clips or supports no longer hold components firmly
• Resolves symptoms such as loose panels, shifting trays, or intermittent contact caused by a failing holder

• One replacement holder

• Disconnect power (and water supply where applicable) before servicing the appliance
• Inspect mating surfaces and fasteners; replace any damaged screws or clips for a secure fit
• Install with the original hardware where possible; use only manufacturer-recommended parts

The Orifice Holder Assembly is an OEM part for Bosch gas ranges. It securely holds the orifice which regulate gas flow to each burner, allowing flame levels to be finely tuned during cooking.

Causes can include deformation from overheating, damage or wear to the small orifice holes. Exposure to water or food debris may also lead to blockage over time.

Symptoms of a bad orifice holder include:

• Inability to properly adjust or maintain burner flame levels
• Uneven or irregularly sized flames between burners
• Gas leaks or flames that fluctuate excessively

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This jet meters gas to the burner on your cooktop or range to produce a stable, properly sized flame. Replace a clogged, damaged, or stripped jet to restore consistent gas flow and reliable ignition.

• Meters gas from the valve to the burner for correct flame size and shape
• Helps resolve issues like burners not lighting or producing weak/uneven flames
• Replaces jets with damaged threads or internal blockage
• Supports safe, consistent burner performance when the original jet is compromised

• Disconnect power and shut off gas supply before servicing; allow unit to cool
• Use the correct wrench to remove and install the jet; do not overtighten
• Install in the correct burner position
• After reassembly, check all connections with an approved leak-detection solution

This water inlet valve controls dishwasher water flow during fill cycles, restoring proper filling and preventing overfill. Replace a faulty valve to stop no-fill, slow-fill, or continuous-fill issues and restore normal wash cycles. What it does:

• Opens and closes to admit water into the dishwasher during fill cycles
• Maintains correct water flow and pressure for proper wash performance
• Stops water flow if inlet fails closed or prevents filling if stuck open
• Common symptom link: dishwasher won't fill, fills slowly, or shows error/overflow conditions

• One water inlet valve

• Disconnect power and shut off the water supply before starting
• Turn off the breaker; water and electrical safety first
• Basic hand tools typically required; keep track of hose clamps and fittings
• Inspect inlet hoses and gaskets and tighten or replace clamps as needed

This water inlet valve controls the flow of water into the appliance so cycles fill when needed and stop to prevent overfilling. Replaces a worn or failed inlet valve to restore reliable water fill operation. What it does:

• Opens and closes to allow water into the appliance during fill cycles
• Works with the control board and float/sensors to prevent overfill
• Common repair for no-fill, slow-fill, or continuous-fill symptoms
• Helps stop leaks caused by valves that fail to fully close

• Turn off power and shut off the water supply before starting
• Drain residual water and relieve pressure from the line before disconnecting
• Inspect and replace any worn inlet hoses, clamps, or seals during installation
• Test cycles and check for leaks after installation

The Valve is an OEM replacement part for Bosch gas ranges. Responsible operation delivers controlled flames through burners. Consistent cooking depends on precise regulation.

Causes of a bad valve can include wear from constant adjustments opening and closing fuel pathways thousands of times. Exposure to ambient heat and residual grease vapors also accelerates component decline over several years.

Symptoms of a bad valve include:

• Inability to modulate burner output properly for recipes
• Unstable pilot lights or sudden extinguishing during operation
• Gas buildups resulting in unpredictable combustion tendencies
• Failures illuminating control panels or kitchens with leak warnings

This OEM Bosch part is also compatible with Siemens or Gaggenau models.

This clamp secures flexible hoses and small tubes to fittings, keeping connections tight to help prevent leaks and movement. It's a small replacement clip used on water and drain lines in many appliances. What it does

• Holds a hose or tube firmly to a barb or nipple to maintain a sealed connection
• Helps stop leaks caused by loose or damaged hose connections
• Prevents hoses from slipping off during operation and reduces vibration noise
• Used wherever a small retaining clamp is required on water or drain lines

• One clamp

• Turn off power and shut off water supply before replacing the clamp
• Slide clamp over the hose, push hose fully onto the fitting, then compress or tighten clamp as required
• Use pliers or the correct tool for the clamp type; avoid damaging the hose when installing
• Replace if corroded, cracked, or not seating properly

A replacement pressure regulator that restores consistent pressure control for safe, reliable appliance operation. Helps stabilize fuel/air flow so burners and heating elements run at intended performance. What it does:

• Regulates pressure to maintain steady fuel or air flow to burners or valves
• Helps correct issues like weak or uneven heating, unstable flames, or intermittent operation
• Supports proper ignition and consistent temperature during normal use
• A faulty regulator can cause poor performance or safety concerns—address promptly

• Turn off power and shut off fuel (gas) supply before servicing; follow appliance safety guidelines
• Only install on compatible appliances; inspect the appliance manual
• Inspect fittings and seals for leaks after installation; perform a leak test if working with gas
• If you smell gas or suspect a leak, stop and immediately address the situation
