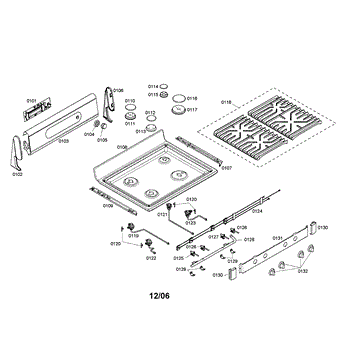

Parts for Bosch HGS7132UC/01: Cooktop Parts

This is a replacement oven control board manufactured by Bosch. The oven control board is the oven's brain and handles all the functions. It also includes the display and provides users with the ability to control functionality, like bake and broil, setting timers, and more. While the oven control board does not include moving parts, heat and moisture can damage soldered components and lead to failure. Signs that the control board may need to be replaced include lack of information on the display, inability to control specific functions, or complete lack of operability. Note that this part is often misdiagnosed, so make sure to check the old board's operability with a multimeter before replacing it. To replace the oven control board, first remove the exterior cowling. Locate the wiring harness and disconnect it before removing the mounting screws. Install the replacement part following these steps in reverse.This genuine OEM part is sold individually. It only fits Bosch Thermador ovens.

This sealing ring creates a watertight seal in the dishwasher pump/motor area to help prevent leaks and protect the motor assembly. It's a small but essential replacement for worn or damaged seals. What it does:

• Seals pump housing joints to stop water leaks beneath the dishwasher
• Helps maintain proper water pressure and circulation for cleaning performance
• Prevents water from reaching the motor and electronics, reducing risk of damage
• Replaces brittle, cracked, or flattened seals that commonly cause under-unit leaks

• One sealing ring

• Turn off power and water to the appliance before starting any repair
• Inspect mating surfaces and clean away debris or buildup before installing the new ring
• Lubricate the seal lightly with OEM-recommended lubricant or a thin film of water if needed to ease installation
• If multiple seals or gaskets show wear, replace them together to ensure a complete seal.

This oven control knob lets you select temperatures and cooking functions with a smooth, precise turn. It restores easy, accurate control when the original knob is worn, cracked, or missing, keeping your range looking and working its best.

• Turns the oven's selector/temperature shaft to choose settings
• Replaces knobs that are loose, broken, stripped, or missing
• Helps resolve issues like slipping when turned or inability to select temperatures
• Maintains a clean, factory look with a stainless-style finish

• Disconnect power and allow the appliance to cool before servicing
• Pull the old knob straight off the control shaft; avoid prying against the panel
• Align the knob's flat/D-shaped insert with the shaft and press firmly until seated
• Test for smooth rotation and proper engagement of oven functions

This mounting bracket secures appliance components in place to restore proper alignment and stability. It's a simple replacement part that helps reduce rattling and supports correct panel or assembly positioning. What it does:

• Secures a panel or assembly to the appliance frame to prevent movement and vibration
• Restores proper alignment for doors, panels, or internal components
• Helps stop rattling, noises, or loose components that occur when a support bracket fails
• Provides a direct mechanical replacement—no electrical function

• One replacement mounting bracket

• High-level: remove power and water to the appliance before starting repairs
• Use basic hand tools; keep fasteners from the original part for reinstallation unless new ones are supplied
• If the bracket mounts a door or heavy panel, support the panel during removal and reinstallation to avoid damage

The Burner Cap is an OEM part for Bosch Ranges. This part fits atop the burner assembly, playing a vital role in controlling and diffusing the flame for cooking.

A common issue with a malfunctioning or worn-out Burner Cap involves deterioration over time due to exposure to heat, grease, or cleaning agents. Damage or deformation to the cap can disrupt the flame pattern, leading to inefficient cooking or inconsistent heat distribution.

Symptoms of a defective Burner Cap may include:

• Uneven or erratic flames during burner operation
• Inadequate heat output or difficulties in achieving desired temperatures
• Visible signs of damage or wear on the burner cap's surface

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This burner housing secures the surface burner assembly on compatible gas cooktops and ranges, restoring proper burner alignment and stable flame performance. It replaces damaged or warped housings that cause burner wobble or inconsistent ignition. What it does

• Supports and positions the burner head and cap for correct flame pattern
• Aligns the igniter/electrode and maintains clearance from other components
• Helps prevent burner wobble, misalignment, and uneven heating
• Use when housing is cracked, corroded, bent, or otherwise damaged

• Shut off gas supply and power to the appliance before starting work
• Remove grates and burner caps to access the housing; keep track of fasteners
• Replace with the exact OEM part and secure fasteners without over-tightening

The Burner Cap is an OEM component for Bosch Ranges. This crucial part fits atop the burner assembly, playing a vital role in controlling and diffusing the flame for cooking.

A common issue with a malfunctioning or worn-out Burner Cap involves deterioration over time due to exposure to heat, grease, or cleaning agents. Damage or deformation to the cap can disrupt the flame pattern, leading to inefficient cooking or inconsistent heat distribution.

Symptoms of a defective Burner Cap may include:

• Uneven or erratic flames during burner operation
• Inadequate heat output or difficulties in achieving desired temperatures
• Visible signs of damage or wear on the burner cap's surface

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This burner housing secures and positions the cooktop's top burner components for stable ignition and even heat. Replacing a damaged housing restores proper burner alignment and helps prevent loose parts that affect flame performance. What it does:

• Holds the top burner head, igniter, and related components in the correct position
• Maintains proper alignment for reliable ignition and a steady flame
• Replaces bent, cracked or corroded housings that can cause loose burner parts or irregular flame
• Works with existing burner caps, heads, and igniters

• Turn off the appliance and disconnect gas and power before servicing
• Inspect and replace any worn gaskets, seals, or fasteners when reinstalling

This burner housing is the metal mounting and enclosure that secures a gas burner and its ignition components, restoring proper burner alignment and stable flame control for safe cooking. Use to replace worn, rusted, or damaged housings. What it does:

• Holds and positions the burner head, electrode/igniter, and associated fittings for correct ignition and flame shape
• Shields and directs gas flow around the burner for consistent combustion
• Prevents burner wobble and helps maintain safe clearances between the flame and appliance cabinet
• Commonly replaced when the housing is bent, corroded, cracked, or causing ignition/misfire issues

• One burner housing assembly

• Turn off gas supply and disconnect power to the appliance before beginning work
• Only attempt installation if you are comfortable with gas appliance repair
• Inspect and replace any worn gaskets, screws, or mounting hardware as needed; ensure proper alignment of the igniter/electrode
• After installation, check for gas leaks and verify correct ignition and flame behavior before normal use

This replacement grill grid restores a flat, stable cooking surface so food cooks evenly and stays off the burner. Designed to fit compatible Bosch countertop grills and grilling modules for reliable performance. What it does:

• Provides a stable, heat-resistant surface for grilling and searing foods
• Keeps food elevated above the burner for even heat distribution
• Replaces bent, warped, or damaged grill surfaces that cause uneven cooking
• Helps prevent food from falling into the burner area during use

• One grill grid

• For safety, disconnect power and allow appliance to cool completely before removing or installing the grid
• Handle with care—edges may be sharp and surfaces hot after recent use
• Slide or position the grid into the existing support rails; no special tools typically required

Replacement holder used to secure internal parts inside the appliance, restoring proper positioning to reduce rattling and help components remain aligned during normal operation and improve reliability. What it does:

• Holds internal components or assemblies in place to prevent unwanted movement.
• Reduces vibration and rattling that can occur during operation.
• Helps maintain correct alignment of parts that can affect function or contact.
• Common symptom: loose or moving parts and audible noise during use.

• Disconnect power to the appliance before beginning any work; shut off water supply if the repair involves water-connected models.
• Use basic hand tools; keep track of screws and clips removed during service.
• Refer to the appliance's service manual or parts diagram for correct location and orientation.

The Electrode is an OEM component specifically designed for select Bosch gas range models featuring a pilot ignition system. Located near the gas valve, it initiates sparking to reliably light burners on demand. Consistent placement ensures safe and dependable burner ignition.

Symptoms of a faulty electrode commonly involve failure to produce sparks stopping burners from lighting properly. Regular flareups increase electrode wear warranting timely replacement.

Causes of a bad electrode include normal arc erosion reducing spark output. Deposits inhibiting consistent contact necessitate cleaning or a component change.

Causes of a bad electrode can involve:

• Burners lighting sporadically or requiring multiple ignitions
• Pilot lights repeatedly going out between uses
• Inability to ignite burners for cooking

This OEM Bosch part is also compatible with some Dacor, Thermador, and Blomberg gas ranges.


This replacement holder secures internal components in compatible Bosch appliances to restore proper alignment and reduce noise from loose parts. It's a simple swap that helps maintain reliable operation and prevents shifting or rattling. What it does

• Secures and positions internal components or assemblies to keep them stable during operation
• Helps stop rattling, vibration noise, and misalignment caused by a worn or broken holder
• Restores part fit where clips or supports no longer hold components firmly
• Resolves symptoms such as loose panels, shifting trays, or intermittent contact caused by a failing holder

• One replacement holder

• Disconnect power (and water supply where applicable) before servicing the appliance
• Inspect mating surfaces and fasteners; replace any damaged screws or clips for a secure fit
• Install with the original hardware where possible; use only manufacturer-recommended parts

The Orifice Holder Assembly is an OEM part for Bosch gas ranges. It securely holds the orifice which regulate gas flow to each burner, allowing flame levels to be finely tuned during cooking.

Causes can include deformation from overheating, damage or wear to the small orifice holes. Exposure to water or food debris may also lead to blockage over time.

Symptoms of a bad orifice holder include:

• Inability to properly adjust or maintain burner flame levels
• Uneven or irregularly sized flames between burners
• Gas leaks or flames that fluctuate excessively

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This jet meters gas to the burner on your cooktop or range to produce a stable, properly sized flame. Replace a clogged, damaged, or stripped jet to restore consistent gas flow and reliable ignition.

• Meters gas from the valve to the burner for correct flame size and shape
• Helps resolve issues like burners not lighting or producing weak/uneven flames
• Replaces jets with damaged threads or internal blockage
• Supports safe, consistent burner performance when the original jet is compromised

• Disconnect power and shut off gas supply before servicing; allow unit to cool
• Use the correct wrench to remove and install the jet; do not overtighten
• Install in the correct burner position
• After reassembly, check all connections with an approved leak-detection solution

This cable harness is the wiring assembly that links dishwasher controls and internal components, restoring reliable electrical connections and helping resolve intermittent or failed component operation. Designed to replace a damaged or corroded factory harness. What it does

• Routes power and signals between the control board and internal parts so components can operate correctly
• Replaces broken, frayed, or corroded wires that cause intermittent power or communication failures
• Helps address symptoms such as devices not powering, erratic operation, or components that work intermittently
• Maintains correct wire routing and connector fit to prevent shorting or loose connections

• One cable harness assembly as shown

• Disconnect power to the appliance before starting any repair
• Compare the harness and connector shapes to the original before installation to ensure correct fit
• Handle connectors by the housings; avoid pulling on individual wires

This water inlet valve controls the flow of water into the appliance so cycles fill when needed and stop to prevent overfilling. Replaces a worn or failed inlet valve to restore reliable water fill operation. What it does:

• Opens and closes to allow water into the appliance during fill cycles
• Works with the control board and float/sensors to prevent overfill
• Common repair for no-fill, slow-fill, or continuous-fill symptoms
• Helps stop leaks caused by valves that fail to fully close

• Turn off power and shut off the water supply before starting
• Drain residual water and relieve pressure from the line before disconnecting
• Inspect and replace any worn inlet hoses, clamps, or seals during installation
• Test cycles and check for leaks after installation

This water inlet valve controls dishwasher water flow during fill cycles, restoring proper filling and preventing overfill. Replace a faulty valve to stop no-fill, slow-fill, or continuous-fill issues and restore normal wash cycles. What it does:

• Opens and closes to admit water into the dishwasher during fill cycles
• Maintains correct water flow and pressure for proper wash performance
• Stops water flow if inlet fails closed or prevents filling if stuck open
• Common symptom link: dishwasher won't fill, fills slowly, or shows error/overflow conditions

• One water inlet valve

• Disconnect power and shut off the water supply before starting
• Turn off the breaker; water and electrical safety first
• Basic hand tools typically required; keep track of hose clamps and fittings
• Inspect inlet hoses and gaskets and tighten or replace clamps as needed

The Valve is an OEM replacement part for Bosch gas ranges. Responsible operation delivers controlled flames through burners. Consistent cooking depends on precise regulation.

Causes of a bad valve can include wear from constant adjustments opening and closing fuel pathways thousands of times. Exposure to ambient heat and residual grease vapors also accelerates component decline over several years.

Symptoms of a bad valve include:

• Inability to modulate burner output properly for recipes
• Unstable pilot lights or sudden extinguishing during operation
• Gas buildups resulting in unpredictable combustion tendencies
• Failures illuminating control panels or kitchens with leak warnings

This OEM Bosch part is also compatible with Siemens or Gaggenau models.

This manifold directs and distributes incoming water to the appliance's internal wash circuits, restoring proper water routing for consistent cleaning performance. Replaces a worn or damaged manifold to stop leaks and restore normal fill and spray operation. What it does:

• Channels incoming water to the dishwasher's spray and circulation system for even cleaning
• Helps maintain correct water flow and pressure to internal valves and spray arms
• Commonly replaced if cracked, blocked, or leaking, which can cause poor wash performance or floor leaks
• Needed when multiple wash zones fail to fill or operate correctly

• Disconnect electrical power and shut off the water supply before starting work
• Inspect and replace any associated seals, O-rings, or clamps if damaged
• Use appropriate tools; avoid overtightening fittings to prevent damage

This clamp secures flexible hoses and small tubes to fittings, keeping connections tight to help prevent leaks and movement. It's a small replacement clip used on water and drain lines in many appliances. What it does

• Holds a hose or tube firmly to a barb or nipple to maintain a sealed connection
• Helps stop leaks caused by loose or damaged hose connections
• Prevents hoses from slipping off during operation and reduces vibration noise
• Used wherever a small retaining clamp is required on water or drain lines

• One clamp

• Turn off power and shut off water supply before replacing the clamp
• Slide clamp over the hose, push hose fully onto the fitting, then compress or tighten clamp as required
• Use pliers or the correct tool for the clamp type; avoid damaging the hose when installing
• Replace if corroded, cracked, or not seating properly

This replacement jet is the small spray nozzle that directs water inside the dishwasher to restore proper spray pattern and improve cleaning performance. It replaces a worn or clogged nozzle to help reduce spotting and uneven wash coverage. What it does:

• Directs water flow from the spray arm to target dishes and cookware
• Helps restore even spray coverage when original nozzle is clogged, cracked, or missing
• Can reduce poor cleaning, streaking, and food residue left on dishes
• Works as a simple wearable component in the dishwasher spray assembly

• Disconnect power and shut off water supply before servicing the appliance
• Access and replace the nozzle per the dishwasher service instructions or parts diagram
• Remove mineral buildup or debris from surrounding spray arm before installing new jet
