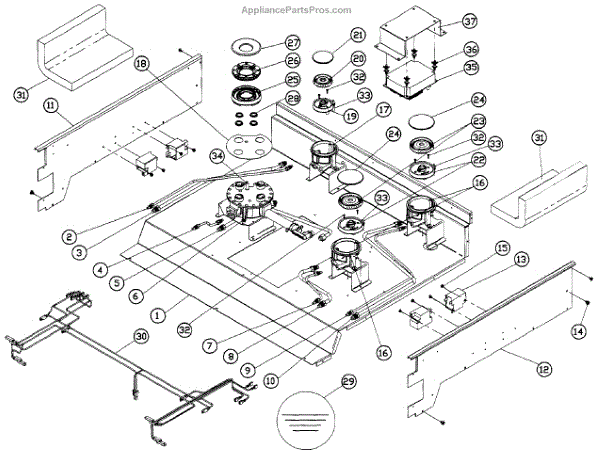

Parts for Dacor ER30DSRSCHNGH: Cooktop Parts

If your gas burners won't light or flame goes out repeatedly, this spark module may need replacement. Controls ignition and re-ignition. DIY repair.

Factory wafer-head Phillips screw (#8 x 3/8 in) secures panels, brackets, and covers. Replace missing, stripped, or damaged screws for proper alignment.

This injector assembly is the gas injector used in compatible Samsung gas appliances to deliver controlled fuel flow to the burner. It replaces a worn or damaged injector to help restore proper ignition and heating performance. What it does:

• Directs the correct amount of gas to the burner for consistent flame and heat
• Helps maintain reliable ignition and steady burner operation
• Can resolve symptoms like weak or uneven flames, poor heating, or burner failure
• Works as a direct replacement for the factory injector assembly

• Turn off the appliance, disconnect power, and shut off the gas supply before starting work
• After installation, check all fittings and connections for gas leaks and proper operation
• Follow OEM service instructions and local codes when installing

Seals the dual burner assembly to the cooktop surface, preventing spills and ensuring proper support. Replace when worn to restore a snug fit and reliable burner operation. Verify fit with your model number.

This service pack includes the burner cap and burner ring used on compatible Samsung gas cooktops and ranges. It restores proper gas flow and stable flame by replacing worn or damaged burner top components. What it does

• Replaces the visible burner cap and surrounding burner ring for one cooktop burner
• Helps restore even flame distribution and consistent heating on the affected burner
• Can resolve ignition issues caused by warped or corroded burner tops
• Useful when the burner shows yellow tipping, uneven flame, or poor simmer performance

• One burner cap and one burner ring service pack

• Turn off gas supply and disconnect power before servicing the appliance
• Remove grates and existing burner components, then fit new ring and cap in correct orientation
• Inspect ignition electrode and gas orifice while servicing; clean or replace if needed

This service pack includes the burner cap and burner ring used on compatible Samsung gas cooktops and ranges. It restores proper gas flow and stable flame by replacing worn or damaged burner top components. What it does

• Replaces the visible burner cap and surrounding burner ring for one cooktop burner
• Helps restore even flame distribution and consistent heating on the affected burner
• Can resolve ignition issues caused by warped or corroded burner tops
• Useful when the burner shows yellow tipping, uneven flame, or poor simmer performance

• One burner cap and one burner ring service pack

• Turn off gas supply and disconnect power before servicing the appliance
• Remove grates and existing burner components, then fit new ring and cap in correct orientation
• Inspect ignition electrode and gas orifice while servicing; clean or replace if needed

This burner base assembly replaces the oven's damaged or worn burner base to restore stable combustion and proper heat distribution for gas ranges. It fits original equipment configurations and mounts where the burner connects to the range. What it does:

• Provides the appliance's burner mounting and gas flow interface for ignition
• Helps restore even flame pattern and consistent heating across the burner
• Replaces cracked, warped, or corroded burner bases that cause poor performance
• Can resolve ignition and flame stability issues when base damage is the cause

• Disconnect the appliance from gas and power before servicing.
• Use proper gas-line fittings and check all connections for leaks after installation.
• Inspect surrounding seals and gaskets; replace if damaged to maintain proper operation.

This burner ring cap base provides the support and alignment for a gas cooktop burner cap, helping direct the flame for consistent heating and safe operation. It replaces damaged or warped bases that prevent proper burner seating. What it does:

• Supports and centers the burner cap so the flame is properly directed
• Restores even heating and stable flame pattern when the original base is cracked or warped
• Helps maintain correct burner-to-cap spacing for reliable ignition and simmer control
• Prevents burner cap wobble that can cause uneven cooking or noisy flames

• Turn off the gas supply and power to the appliance before starting any work
• Remove burner cap and grate to access the base; ensure all surfaces are clean and dry before installing
• Fit the new base into the burner assembly and ensure the cap seats evenly and securely

This burner ring cap base provides the support and alignment for a gas cooktop burner cap, helping direct the flame for consistent heating and safe operation. It replaces damaged or warped bases that prevent proper burner seating. What it does:

• Supports and centers the burner cap so the flame is properly directed
• Restores even heating and stable flame pattern when the original base is cracked or warped
• Helps maintain correct burner-to-cap spacing for reliable ignition and simmer control
• Prevents burner cap wobble that can cause uneven cooking or noisy flames

• Turn off the gas supply and power to the appliance before starting any work
• Remove burner cap and grate to access the base; ensure all surfaces are clean and dry before installing
• Fit the new base into the burner assembly and ensure the cap seats evenly and securely

This burner ring cap base provides the support and alignment for a gas cooktop burner cap, helping direct the flame for consistent heating and safe operation. It replaces damaged or warped bases that prevent proper burner seating. What it does:

• Supports and centers the burner cap so the flame is properly directed
• Restores even heating and stable flame pattern when the original base is cracked or warped
• Helps maintain correct burner-to-cap spacing for reliable ignition and simmer control
• Prevents burner cap wobble that can cause uneven cooking or noisy flames

• Turn off the gas supply and power to the appliance before starting any work
• Remove burner cap and grate to access the base; ensure all surfaces are clean and dry before installing
• Fit the new base into the burner assembly and ensure the cap seats evenly and securely

Replacement M22x1 thread ring for dual-assembly components in ranges. Secures and retains mating parts with proper alignment. Replace if stripped, worn, or damaged.

Controls and protects LED lighting and display circuitry. Replace if LEDs flicker, dim, or fail completely. Verify fit with your model number.
