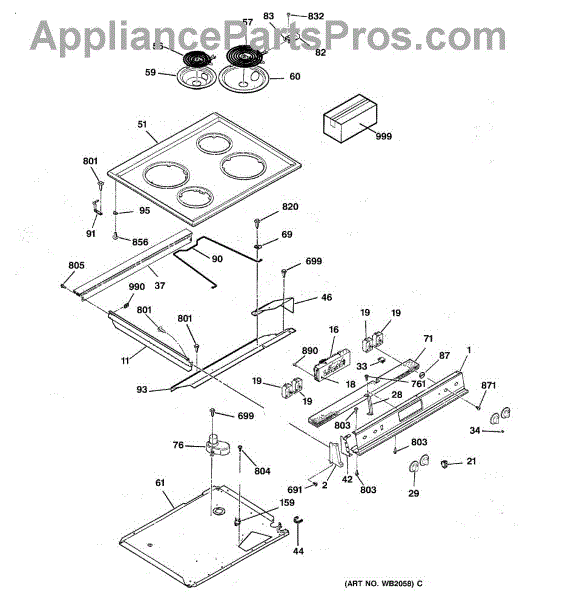

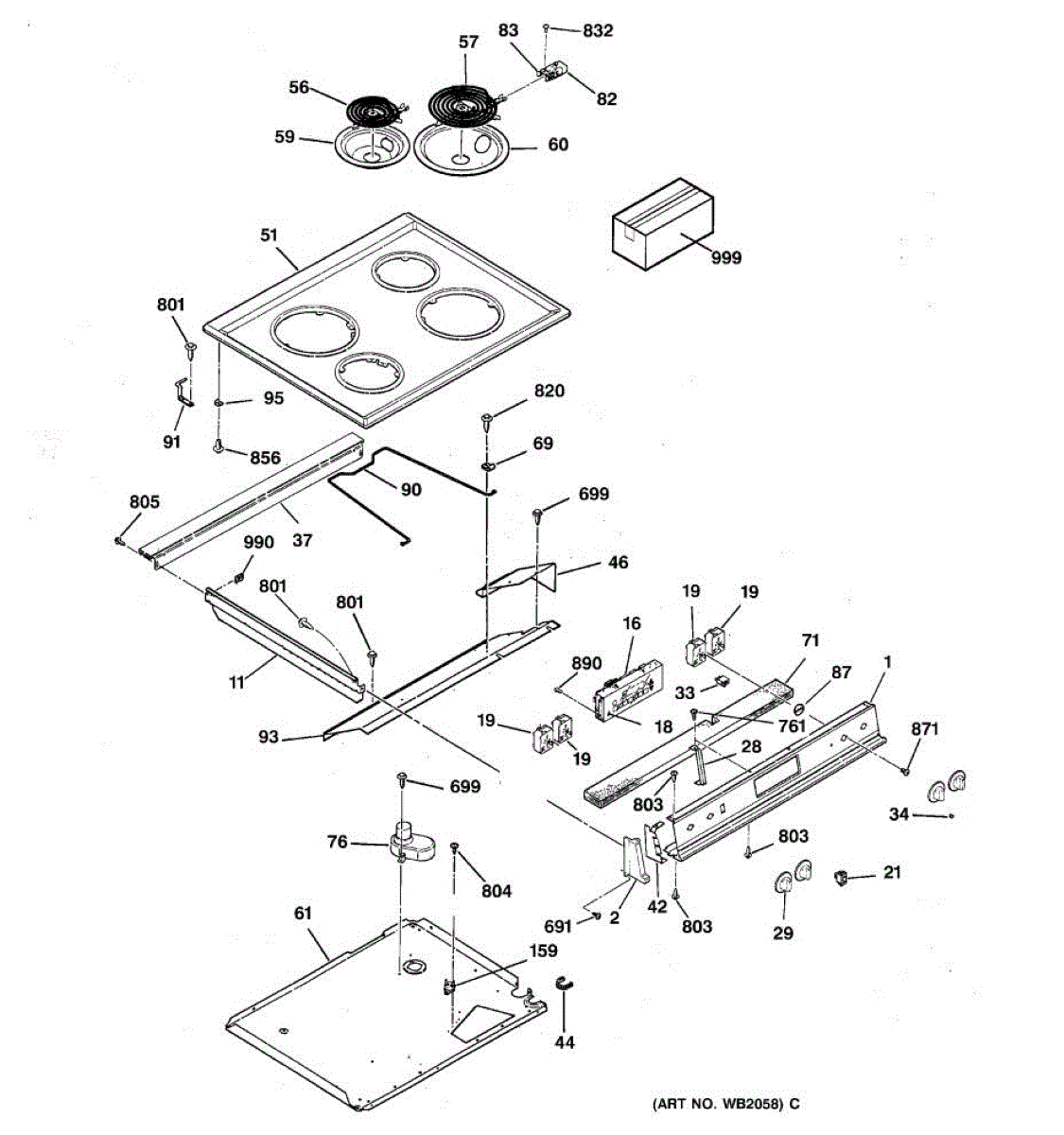

Parts for Ge JCSP31BW1BB: 01 - Cooktop Parts

This black clock plate is the trim and mounting plate for the range or wall oven clock/timer in the control panel/backguard. It restores a clean, finished look and helps position and support the clock assembly securely.

• Provides the mounting surface and finished opening for the clock/timer module
• Helps align the display and protect surrounding panel edges
• Replace if cracked, warped, missing, or heavily discolored
• Typical symptoms include a loose or misaligned clock, rattling, or visible damage around the display

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Remove the control panel/backguard to access the clock and plate
• Transfer the clock/timer to the new plate and reuse existing hardware
• Align carefully and avoid overtightening to prevent damage; verify display alignment before reassembly

6" element switch

Burner won't stay at set temperature or jumps to high? The infinite switch controls power to heating elements. Easy DIY repair, takes under 30 minutes.

Color: Black

Black control knob for range surface element switches. Replaces worn, cracked, or missing knobs with faded temperature markings. Restores grip and visibility.

Range indicator light shows when your oven is heating or in operation. Replace if the light fails to illuminate or stays on constantly. Verify fit with your model.

Indicator light lens covers and diffuses the panel light on your range or oven. Replace when cracked, discolored, or missing to restore visibility.

Replace a non-heating or damaged 6-inch burner. Simple plug-in installation takes minutes—just unplug the old element and connect the new one.

If your burner won't heat or only works on high, this 8 inch surface element restores proper cooking. Simple plug-in replacement takes seconds.

This 6-inch drip bowl installs beneath the coil element on your electric range. Replace if cracked, chipped, or heavily discolored from spills.

Replacement 8 inch burner bowl installs beneath the burner element on your range cooktop. Replaces cracked, stained, or worn drip pans for a cleaner look.

Support rod clip secures internal components in your range. Replace if loose, broken, or causing rattling noises. Verify fit with your model number.

Burner not heating or making poor contact? A damaged terminal block disrupts power to heating elements. DIY-friendly repair, takes about 10 minutes.

Control seal for cooktops and ranges. Replace if worn, cracked, or allowing moisture into controls. Verify fit using your model number.

Right-side hinge for range oven doors. Installs on the door frame to support opening and closing. Replace if cracked, bent, or causing door misalignment.

Range hinge bracket that secures the oven door hinge assembly. Replace this mounting bracket if it's cracked, broken, or bent causing door misalignment.

Replacement trim screw for securing exterior trim pieces and panels on ovens and ranges. Restores proper fit when original screw is missing or stripped.

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Package of 12

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Replacement screw for securing panels, trim, and mounting brackets on appliances. Use when original fastener is lost, stripped, or damaged.

Black. 8-18 AB HXW 3/8

Nickel

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

This washer secures components inside your range. Replace if the original is lost, stripped, corroded, or damaged during service or repair work.

Speed nut for ovens and ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance or repair.

Main wire harness for ranges. Connects electrical components throughout the unit. Replace if wires are frayed, damaged, or connections are loose.
