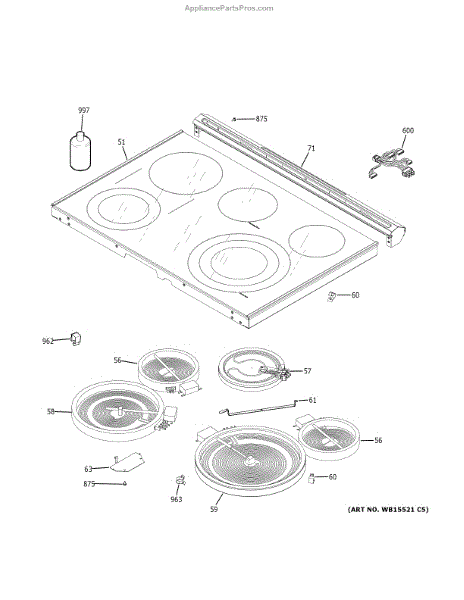

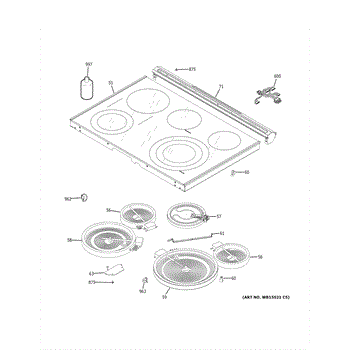

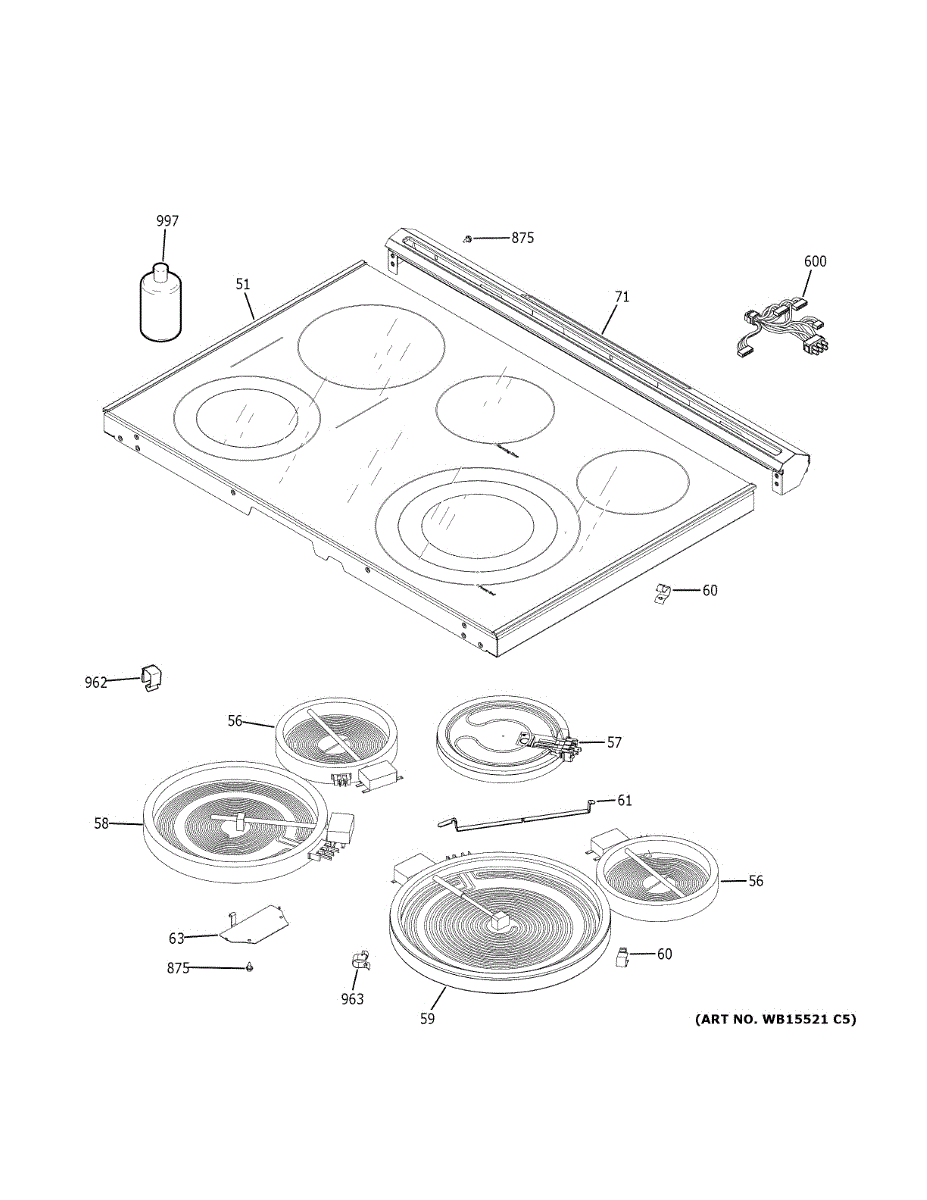

Parts for Ge CES700M2N3S5: Cooktop Parts

The Radiant Stovetop Element is an OEM part for GE electric ranges. It is designed to provide consistent and even heat for cooking. This element sits beneath the glass or ceramic cooktop surface and heats up when electricity flows through it, allowing you to cook food efficiently.

Over time, the radiant stovetop element can wear out or become damaged due to frequent use, power surges, or accidental impact. A faulty element can affect cooking performance and may pose a safety risk.

Symptoms of a bad radiant stovetop element include:

• The element not heating up
• Uneven heating or hot spots
• Visible damage such as cracks or burns
• The element cycling on and off erratically

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This lower oven warming element heats the oven's warming/holding compartment so food stays warm until serving. Replaces a damaged or non-heating lower element to restore consistent low-temperature operation. What it does:

• Heats the oven's warming/lower compartment for holding cooked food
• Replaces elements that show visible damage, burn-through, or no heat output
• Helps restore even low-temperature performance when the warmer function fails
• Works with the oven's temperature control and safety circuits to provide steady heat

• One lower oven warming element

• Disconnect power at the breaker before beginning any repair
• Wear gloves; element edges and terminals may be sharp
• Verify proper wiring and secure terminal connections during installation

This dual radiant surface element sits beneath the glass cooktop and provides two heating zones to match your pan size. Replacing a failed element restores fast, even heating and proper control on the affected burner.

• Heats cookware via two concentric radiant circuits beneath the glass-ceramic surface
• Lets you select inner, outer, or both rings for small or large pans (via the burner control)
• Cycles with its internal limiter to maintain the temperature you set
• Common symptoms: no heat, only one ring heats, uneven or slow heating

• Disconnect power at the breaker before servicing
• Lift/remove the glass cooktop to access elements; support the glass to prevent stress or cracks
• Transfer wiring and any mounting brackets from the old element to the new one, moving one connection at a time and documenting positions
• Test the burner for proper operation before reassembly

The Triple Haliant Element is an OEM part for GE cooktops and ranges, designed to provide versatile and powerful heating options. This element features a triple-ring design that allows for three different sizes of cookware to be heated efficiently on the same burner. It's ideal for situations requiring precise temperature control and flexibility, such as when cooking with large pots or pans that need even heat distribution.

Causes for a Triple Haliant Element to fail can include prolonged use leading to wear and tear, overheating that damages the internal components, or electrical issues such as short circuits.

Symptoms of a bad Triple Haliant Element include:

• The element does not heat up
• Only parts of the element heat up
• Unusual fluctuations in heat levels

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rear Vent Trim and Gasket Assembly is an OEM part for GE ranges. It seals the rear vent opening of the range, directing hot air and potential gas fumes outside through the exhaust vent during oven use. Without an intact seal provided by the gasket and vent trim, combustion byproducts can enter the kitchen presenting safety and performance issues.

Causes of a bad range rear vent assembly include wear over years of use with high heat cycles, cracking or degradation of sealing materials, or damage from cleaning or impacts around the vent area.

Symptoms of an issue include:

• Foul odors detected in the kitchen during use of the oven
• Inefficient or uneven baking and broiling
• Visible openings or gaps seen around the rear vent perimeter
• Detached, cracked, or missing components

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small replacement cable clip that secures an appliance wiring harness to the cabinet or chassis, helping prevent wire rubbing and vibration. Replacing a broken clip keeps wiring routed and reduces loose, rattling wires. What it does:

• Secures wiring harnesses to the cabinet or chassis to keep wires in place and routed away from moving parts.
• Reduces wire chafing and abrasion that can cause exposed conductors or intermittent connections.
• Helps eliminate rattling noise caused by loose or vibrating wires.
• Keeps harnesses positioned to reduce stress on connectors and wiring runs.

• Always unplug the appliance or shut off power at the breaker before inspecting or replacing wiring hardware.
• Remove the old clip and press the replacement into the same mounting slot or stud until it snaps into place; light tool assistance (small flat screwdriver) can help in tight locations.
• Inspect nearby wiring and connector insulation for damage; repair or replace any frayed wires rather than relying on the clip alone.
