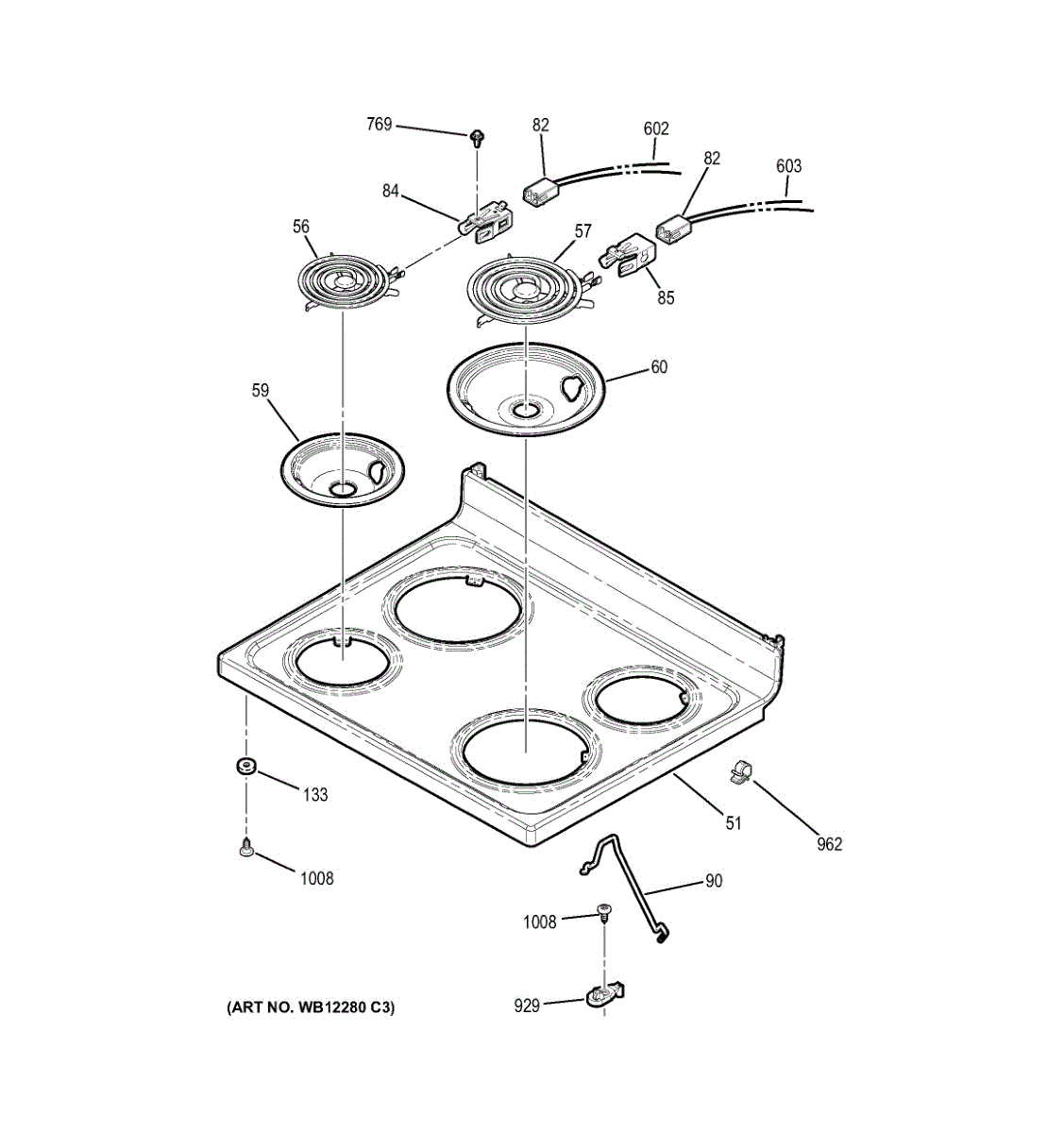

Parts for Ge JB350DF3BB: Cooktop Parts

This Surface Heating Element is an OEM replacement part for GE ranges. It is responsible for generating heat on the stovetop surface, allowing you to cook or heat food in pots or pans. The range surface heating element is located on the cooktop, beneath the burner bowl or drip pan.

Causes of a bad surface heating element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface heating element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

This part fixes the following symptoms:

• Insufficient or no heat produced by the burner
• Uneven heat distribution across the element
• Visible damage or signs of wear, such as cracks or breaks, on the heating element
• Sparks or electrical arcing occurring during use

The GE 6-inch range surface heating element can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This surface heating element replaces a damaged or worn cooktop burner to restore even heat for cooking on electric ranges. It fits into the stove top and connects to the range's terminal block for operation. What it does:

• Heats cookware when the range burner is turned on
• Restores consistent surface temperature and cooking performance
• Stops working safely if the element is visibly broken or produces no heat
• Helps eliminate uneven heating or intermittent operation of a burner

• 1 surface heating element

• Disconnect power to the range at the breaker before servicing
• Allow the cooktop and element to cool completely before handling
• Install by seating the element into the cooktop opening and reconnecting the terminal connections per the range manufacturer instructions

The 6 Inch Small Burner Bowl is an OEM part for GE stoves and ranges. It is a durable and heat-resistant bowl that sits beneath the heating element of the small burner, providing a stable and level surface for your cookware. The small burner bowl helps distribute heat evenly and protects the cooktop from spills, stains, and other messes. For the matching 8-inch large burner bowl order WB31T10011.

A bad small burner bowl can be caused by regular use, accidental damage, or it may become discolored, warped, or rusted over time.

Symptoms of a bad small burner bowl include:

• Difficulty in cleaning or removing stubborn stains.
• A loose or wobbly heating element.
• Visible damage such as cracks or chips on the bowl.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The 8 Inch Large Burner Bowl is an OEM replacement part for GE ranges and cooktops. This component is designed to accommodate the larger burners on the cooking surface, providing a stable and safe platform for pots and pans during cooking.

Symptoms of needing to replace the 8 inch large burner bowl include:

• Cracks, chips, or damage to the bowl's surface
• Warping or deformation due to excessive heat
• Difficulty in properly positioning pots and pans on the burner

Causes of a faulty burner bowl can include normal wear and tear over time, exposure to extreme temperatures or thermal shocks, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

This clip receptacle is a small retaining clip used in select cooking appliances. It secures a mating receptacle or component so it stays properly positioned and connected for consistent operation.

• Retains a receptacle or component at its mounting point to prevent movement
• Helps maintain correct alignment and a stable connection
• Replaces a bent, fatigued, or missing clip
• Common symptoms include a loose or shifting part, intermittent operation, or a visibly broken/missing clip

• Disconnect power (and gas supply if applicable) and allow the appliance to cool before servicing
• Refer to your model's parts diagram for the exact location and orientation
• Use needle-nose pliers for removal/installation; avoid over-bending to maintain clamping force
• Confirm a secure fit and proper clearances before reassembly and testing

This support rod restores stable support and alignment for the designated assembly in your range, helping keep components secure and reducing unwanted movement or sagging over time. What it does:

• Provides rigid support for the attached component or panel
• Replaces a bent, missing, or corroded rod to restore proper fit
• Helps reduce rattling, sagging, or misalignment
• Direct-fit replacement to match the original support geometry

• 1 support rod

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool completely
• Support the related assembly while removing the old rod to prevent dropping
• Transfer any clips or retainers from the original part if present and reinstall in the same orientation
• Secure attachment and clearances before returning the appliance to service

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

This Main Top Wire Harness routes power and signals to the cooktop controls and surface components, restoring proper electrical connections on the appliance's main top. It's a direct-replacement harness used where factory wiring has failed or been damaged. What it does:

• Connects power and control circuits between the console and main cooktop components for proper operation
• Replaces broken, burnt, or damaged wiring that can cause burners, lights, or control functions to stop working
• Prevents intermittent loss of power or arcing from compromised or frayed conductors
• Restores factory wiring paths so controls and sensors communicate reliably

• One main top wire harness assembly

• Recommended for installers or experienced DIYers familiar with appliance wiring and safety procedures
• Disconnect power at the breaker or unplug the appliance before removing panels or touching wiring
• Match connector shapes and wire routing to the original harness; secure harness away from heat and moving parts
• If you see melted connectors or extensive damage, inspect adjacent components and replace as needed

This right-side main top wiring harness routes power and control signals to the cooktop's switches, burners and ignitors so the surface elements operate reliably. It replaces a damaged or worn top harness to restore proper electrical connections. What it does

• Carries power and signal between the console/switches and right-side surface elements or igniters.
• Enables ignition and heat control for the right-side burners when intact.
• Commonly associated with symptoms like a non-working or intermittent right burner, no spark/ignition at the right surface element, or visible burned/damaged wires.
• Replaces a faulty harness that shows frayed wires, melted insulation, or loose/broken connector pins.

• One right-side main top wiring harness (WB18T10544) as shown.

• Disconnect power at the breaker or range plug before starting any work.
• Handle connector pins carefully; match and seat each connector fully to ensure reliable contact.
• Route and secure the harness following the original path; replace any mounting clips or grommets if worn.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

Size: 8-18 BA POR 3/4 SN
