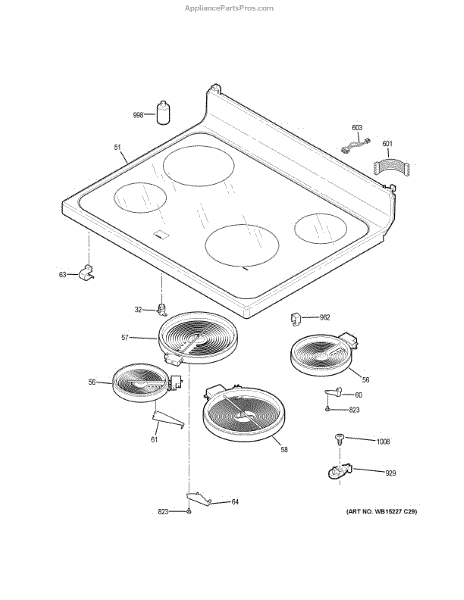

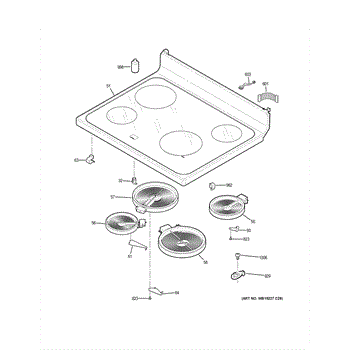

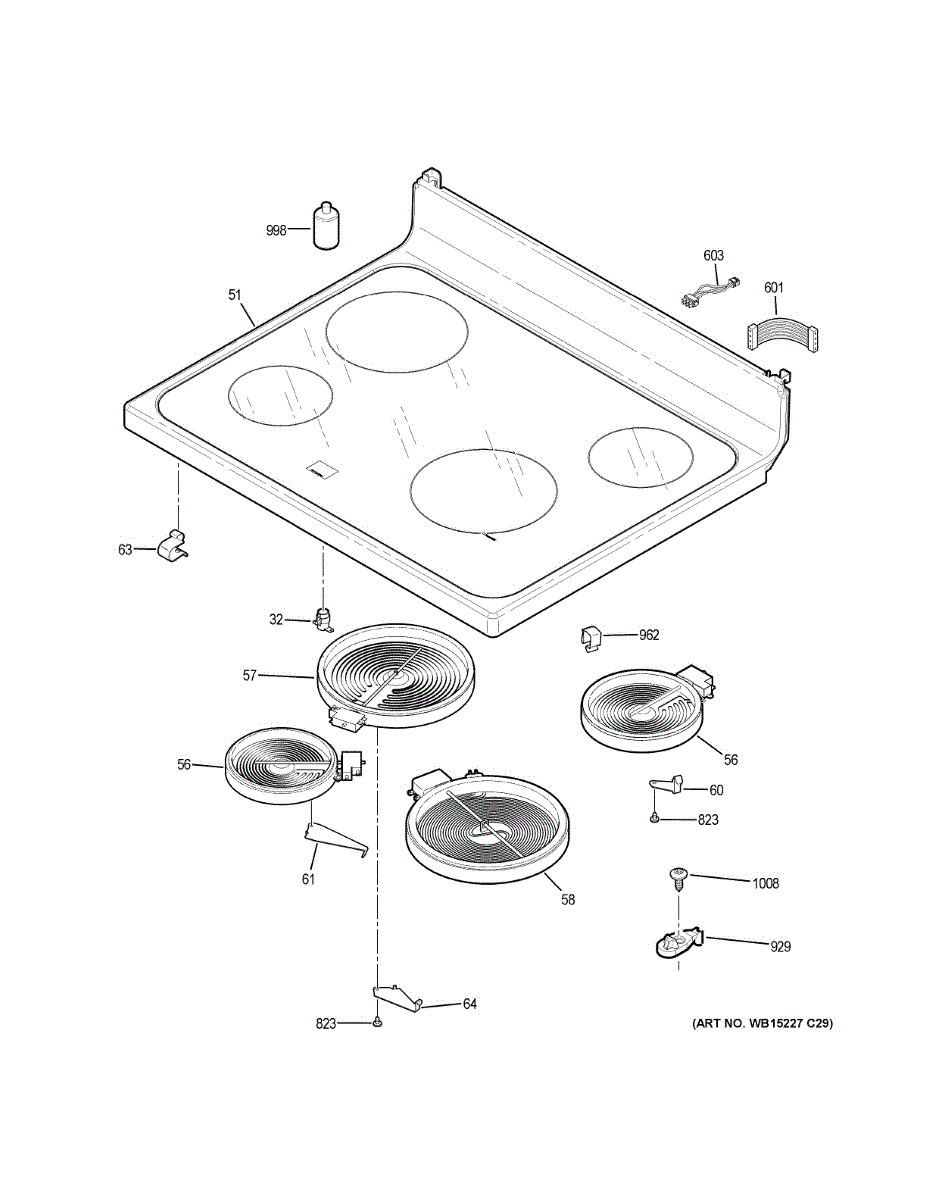

Parts for Ge JB625DK2BB: Cooktop Parts

The Rangetop Glass Assembly (Black) is an OEM part for GE ranges. This component serves as the smooth, glass surface of the range, providing a sleek and easy-to-clean area for cooking.

Replace this rangetop glass assembly if it becomes cracked, chipped, or damaged. Physical impacts, extreme temperature changes, or wear and tear over time can lead to these issues.

Symptoms of a bad Rangetop Glass Assembly include:

• Visible cracks or chips in the glass surface
•  Discoloration or staining that cannot be cleaned
• Difficulty in cleaning the surface properly
• Uneven heating due to damage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Radiant Stovetop Element is an OEM part for GE electric ranges. It is designed to provide consistent and even heat for cooking. This element sits beneath the glass or ceramic cooktop surface and heats up when electricity flows through it, allowing you to cook food efficiently.

Over time, the radiant stovetop element can wear out or become damaged due to frequent use, power surges, or accidental impact. A faulty element can affect cooking performance and may pose a safety risk.

Symptoms of a bad radiant stovetop element include:

• The element not heating up
• Uneven heating or hot spots
• Visible damage such as cracks or burns
• The element cycling on and off erratically

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8-inch Haliant Element is an OEM replacement part for GE ranges. This component is located beneath the glass surface of the stove and is responsible for heating up the cooking area. It glows bright red at its highest setting, providing the necessary heat for cooking or boiling. The 8-inch size indicates its diameter, making it suitable for larger pots and pans.

Symptoms of a bad 8-inch Haliant Element include:

• The element not heating up or only heating intermittently
• Uneven cooking results due to inconsistent heat
• Visible damage to the element, such as burns or breaks
• Error codes on the range’s display indicating a heating issue

Causes for a malfunctioning 8-inch Haliant Element can include a burnt-out element, electrical issues like faulty wiring or connections, or problems with the control board that regulates its operation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement bracket that secures a cooktop radiant heating element, restoring stable element positioning and safer operation. Use this bracket when the original is bent, cracked, or no longer holds the element firmly in place. What it does:

• Secures the radiant heating element to the cooktop so the element stays aligned and stable.
• Helps prevent element sagging or movement that can cause uneven heating or rattling.
• Keeps element terminals positioned for proper contact with the cooktop assembly.
• Common service part when the original bracket is bent, broken, or corroded.

• Disconnect power at the breaker and ensure the cooktop and element are fully cool before starting.
• Remove damaged bracket and fasten the replacement using the original screws or clips; confirm element alignment before restoring power.
• Use basic hand tools and avoid overtightening fasteners to prevent bracket or element damage.

This mounting bracket secures a cooktop radiant heating element to the range, keeping the element properly seated for stable operation and reliable heat transfer. It's a direct-fit replacement designed to restore safe element support. What it does:

• Holds the radiant heating element in the correct position under the cooktop surface
• Maintains proper alignment for electrical contact and stable heating
• Helps prevent element movement that can cause uneven cooking or contact issues
• Fits where the element attaches to the cooktop frame on compatible ranges

• One radiant element mounting bracket

• Always disconnect power to the appliance before servicing; verify power is off at the breaker
• Remove cooktop or access panel per your model's service instructions to reach the element bracket
• Handle glass or ceramic cooktops carefully to avoid cracking or chipping
• Reinstall element and bracket securely; restore power and test element function after reassembly

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket secures the radiant surface element beneath a smooth-top range or cooktop. Replacing a bent or broken bracket restores proper element position so it stays stable under the glass for consistent performance.

• Supports and centers the radiant heating element under the glass top
• Maintains correct clearance and alignment with the cooktop
• Helps prevent element movement, vibration, or sagging
• Symptoms include a loose/wobbly element, uneven heating, or visible damage to the original bracket

• Disconnect power at the breaker and allow the unit to cool completely
• Lift and support the glass top to access the element assembly
• Note wiring/orientation; transfer the element to the new bracket without stressing terminals or leads
• Ensure the element is centered and secured before reassembly and testing

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

A small replacement cable clip that secures an appliance wiring harness to the cabinet or chassis, helping prevent wire rubbing and vibration. Replacing a broken clip keeps wiring routed and reduces loose, rattling wires. What it does:

• Secures wiring harnesses to the cabinet or chassis to keep wires in place and routed away from moving parts.
• Reduces wire chafing and abrasion that can cause exposed conductors or intermittent connections.
• Helps eliminate rattling noise caused by loose or vibrating wires.
• Keeps harnesses positioned to reduce stress on connectors and wiring runs.

• Always unplug the appliance or shut off power at the breaker before inspecting or replacing wiring hardware.
• Remove the old clip and press the replacement into the same mounting slot or stud until it snaps into place; light tool assistance (small flat screwdriver) can help in tight locations.
• Inspect nearby wiring and connector insulation for damage; repair or replace any frayed wires rather than relying on the clip alone.

Size: 8-18 BA POR 3/4 SN
