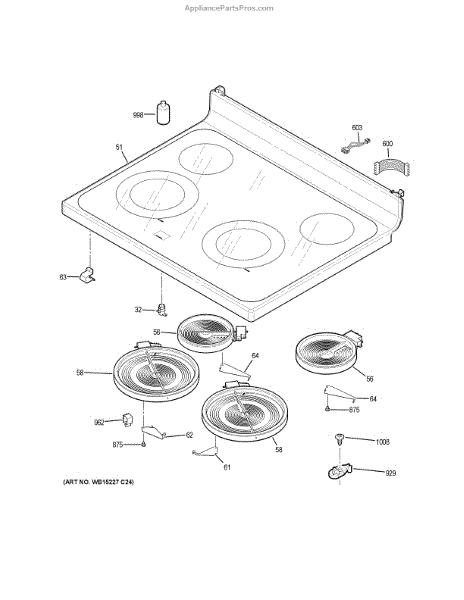

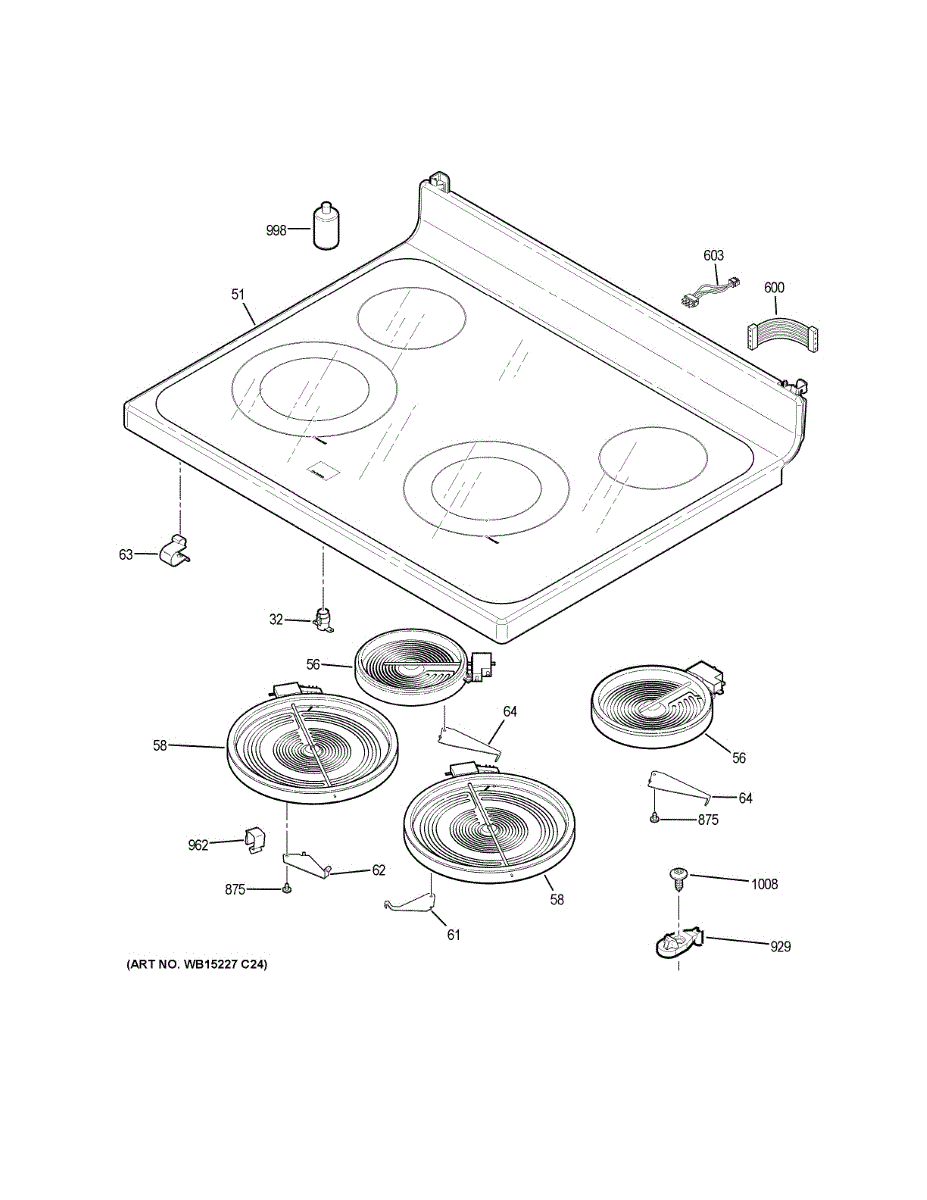

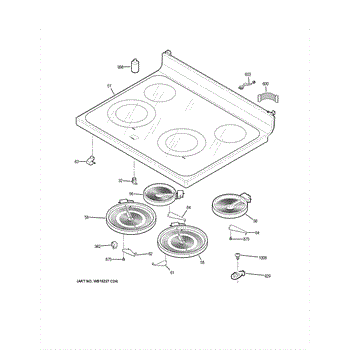

Parts for Ge JB645FK8DS: Cooktop Parts

This indicator light is a small panel-mounted lamp that illuminates to show when a heating circuit is active. Replacing a failed indicator restores a clear visual cue so you know when the appliance is operating. What it does

• Lights when the corresponding function or element is energized
• Provides a visual status cue during operation
• Common symptoms: light won't come on, stays on continuously, flickers or is dim, or shows physical damage

• One indicator light assembly

• Disconnect power at the breaker before servicing
• Access the rear of the console/control area; note wire positions and transfer one at a time
• Secure the new light in the panel opening per design (snap-in or nut-mounted)
• Restore power and test operation before reassembly

The rangetop glass assembly is an OEM part for GE ranges. It serves as the protective surface for your cooktop, providing an easy-to-clean cooking area.

A bad rangetop glass assembly can result in issues such as cracks, scratches, or damage to the surface. Causes of a bad assembly can include accidental impacts, exposure to extreme temperatures, or wear and tear over time.

Symptoms of a bad rangetop glass assembly include:

• Visible cracks or scratches on the glass surface
• Difficulty in cleaning or removing stains from the cooktop
• Uneven heating or cooking performance
• The glass surface not sitting flush or securely in place

Replace your worn-out or damaged rangetop glass assembly with this genuine OEM GE part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Radiant 9" Dual is an OEM part for GE ranges and cooktops. This dual-element radiant burner provides versatile cooking options, offering both a small and large heating area within a single burner. It ensures efficient and even heat distribution for a variety of cooking needs, accommodating different pot and pan sizes.

Causes of a bad radiant element can include normal wear and tear, electrical issues, or damage from heavy cookware or impact. Over time, these factors can lead to the element failing to heat properly or not functioning at all.

Symptoms of a bad radiant element include:

• The burner not heating up or heating inconsistently
• Only one of the dual elements functioning
• Visible damage or discoloration on the element
• The burner cycling on and off more frequently than usual

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket secures a stove's radiant heating element to the cooktop so the element stays aligned and stable during use. It helps maintain safe, consistent contact between the element and the cooktop assembly. What it does:

• Holds the radiant heating element in the correct position to prevent movement or sagging
• Keeps the element aligned to ensure even heating and reduce stress on terminals
• Helps stop the burner from wobbling or shifting when cookware is placed on it
• Can be used when a loose or misaligned element causes noise or improper seating

• Disconnect power to the appliance before inspecting or replacing the bracket
• Handle the heating element and terminals carefully to avoid damage or injury
• Basic hand tools are usually required; verify fit before final reassembly

Bracket used to mount a radiant (surface) heating element on compatible cooktops, providing secure support and alignment so the element maintains proper contact and stable heating performance. What it does

• Secures the radiant/surface heating element to the cooktop and prevents movement during use.
• Helps maintain stable electrical contact, which can reduce intermittent or no-heat burner symptoms.
• Minimizes rattling or vibration caused by a loose element.
• Fits the OEM mounting location and restores correct element alignment.

• Disconnect power at the breaker before servicing the cooktop to avoid electrical shock.
• Remove or lift the glass cooktop per the manufacturer's instructions and handle the glass carefully.
• Replace the bracket, re-seat the element, and tighten fasteners securely; confirm correct alignment before restoring power.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement bracket that secures a cooktop radiant heating element, restoring stable element positioning and safer operation. Use this bracket when the original is bent, cracked, or no longer holds the element firmly in place. What it does:

• Secures the radiant heating element to the cooktop so the element stays aligned and stable.
• Helps prevent element sagging or movement that can cause uneven heating or rattling.
• Keeps element terminals positioned for proper contact with the cooktop assembly.
• Common service part when the original bracket is bent, broken, or corroded.

• Disconnect power at the breaker and ensure the cooktop and element are fully cool before starting.
• Remove damaged bracket and fasten the replacement using the original screws or clips; confirm element alignment before restoring power.
• Use basic hand tools and avoid overtightening fasteners to prevent bracket or element damage.

This 14-gauge green lead wire is a direct-replacement electrical connection used on compatible appliances to restore a secure, low-voltage/ground circuit and reliable component operation. It helps replace damaged or worn wiring to prevent intermittent power or arcing. What it does:

• Replaces a damaged or corroded green lead used for grounding or signal return
• Restores a secure electrical connection between controls, switches, or chassis ground
• Helps stop intermittent operation, loss of function, or visible arcing due to bad wiring
• Matches OEM gauge and color for proper fit and safe routing

• One 14-ga green lead wire as pictured

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use proper connectors or crimps and secure the wire to prevent chafing or contact with hot/moving parts
• Test continuity and proper operation after reinstalling and restoring power

A small replacement cable clip that secures an appliance wiring harness to the cabinet or chassis, helping prevent wire rubbing and vibration. Replacing a broken clip keeps wiring routed and reduces loose, rattling wires. What it does:

• Secures wiring harnesses to the cabinet or chassis to keep wires in place and routed away from moving parts.
• Reduces wire chafing and abrasion that can cause exposed conductors or intermittent connections.
• Helps eliminate rattling noise caused by loose or vibrating wires.
• Keeps harnesses positioned to reduce stress on connectors and wiring runs.

• Always unplug the appliance or shut off power at the breaker before inspecting or replacing wiring hardware.
• Remove the old clip and press the replacement into the same mounting slot or stud until it snaps into place; light tool assistance (small flat screwdriver) can help in tight locations.
• Inspect nearby wiring and connector insulation for damage; repair or replace any frayed wires rather than relying on the clip alone.

Size: 8-18 BA POR 3/4 SN
