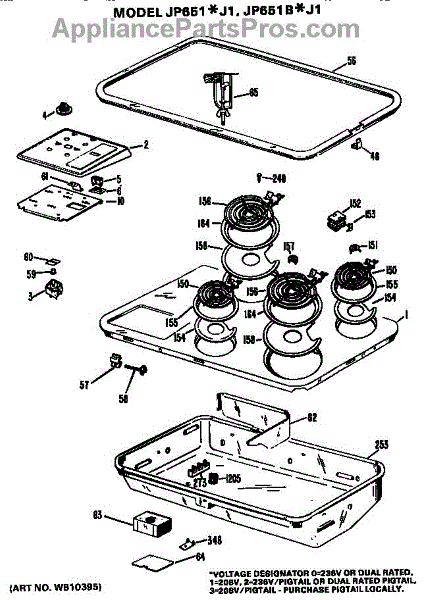

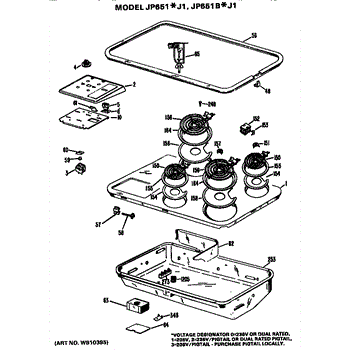

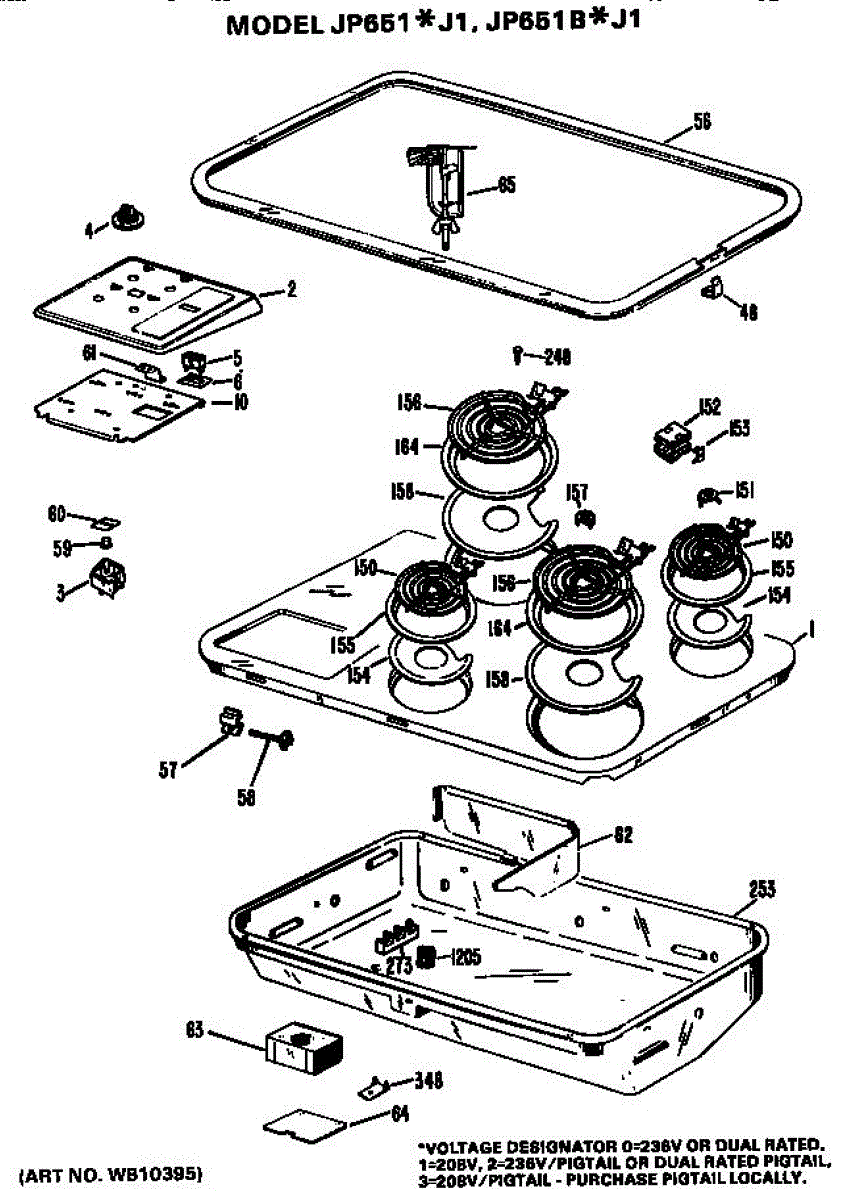

Parts for Ge JP651B*J1: Cooktop Parts

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This double terminal block provides a secure connection point for two incoming power leads and the appliance harness, helping restore reliable electrical feed to heating and control circuits. Direct-replacement electrical mounting for affected ranges and ovens. What it does:

• Joins and secures two power supply conductors to the appliance wiring harness
• Restores interrupted power paths that can cause burners, elements, or controls not to heat or operate
• Prevents loose or corroded connections that lead to arcing or intermittent operation
• Matches original mounting and terminal spacing for a straightforward replacement

• One double terminal block

• Disconnect power at the breaker or unplug appliance before servicing to avoid shock
• Verify correct wire routing and tight, torqueed terminal screws; use a replacement screw if original is damaged
• Inspect adjacent wiring and connectors for heat damage; replace any compromised components

The 6 inch Drip Pan is an OEM replacement part for GE ranges and cooktops. It is a shallow, removable tray designed to catch spills, boil-overs, and other messes that may occur during cooking.

Causes of needing to replace a drip pan can include excessive wear and tear, warping due to high heat exposure, or damage from impact or scratches that can lead to discoloration or difficulty in cleaning.

Symptoms that indicate it's time to replace your drip pan include:

• Visible cracks, dents, or other physical damage
• Discoloration or staining that cannot be properly cleaned
• Difficulty fitting the pan properly into the designated area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

NOTE: Ring comes separate: WB31X5013. Matching 8 inch drip pan: WB32X10013 and ring: WB31X5014.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

The ring comes separately: WB31X5014. Matching 6-inch drip pan: WB32X10012 and ring: WB31X5013.

The 8 Inch Drip Pan is an OEM part for GE ranges and stovetops. It is designed to sit underneath the burner element, catching spills, drips, and crumbs that fall during cooking. This not only helps in keeping the cooktop clean but also protects the stovetop and internal components from potential damage caused by food spillage.

Causes of a bad 8 Inch Drip Pan can include rusting due to prolonged exposure to moisture, warping from high heat, or accumulation of cooked-on spills and debris that can't be cleaned off.

Symptoms of a bad Drip Pan include:

• Noticeable rust or corrosion
• Warping or misshaping, affecting fit and function
• Difficulty in cleaning, with residue that cannot be removed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
