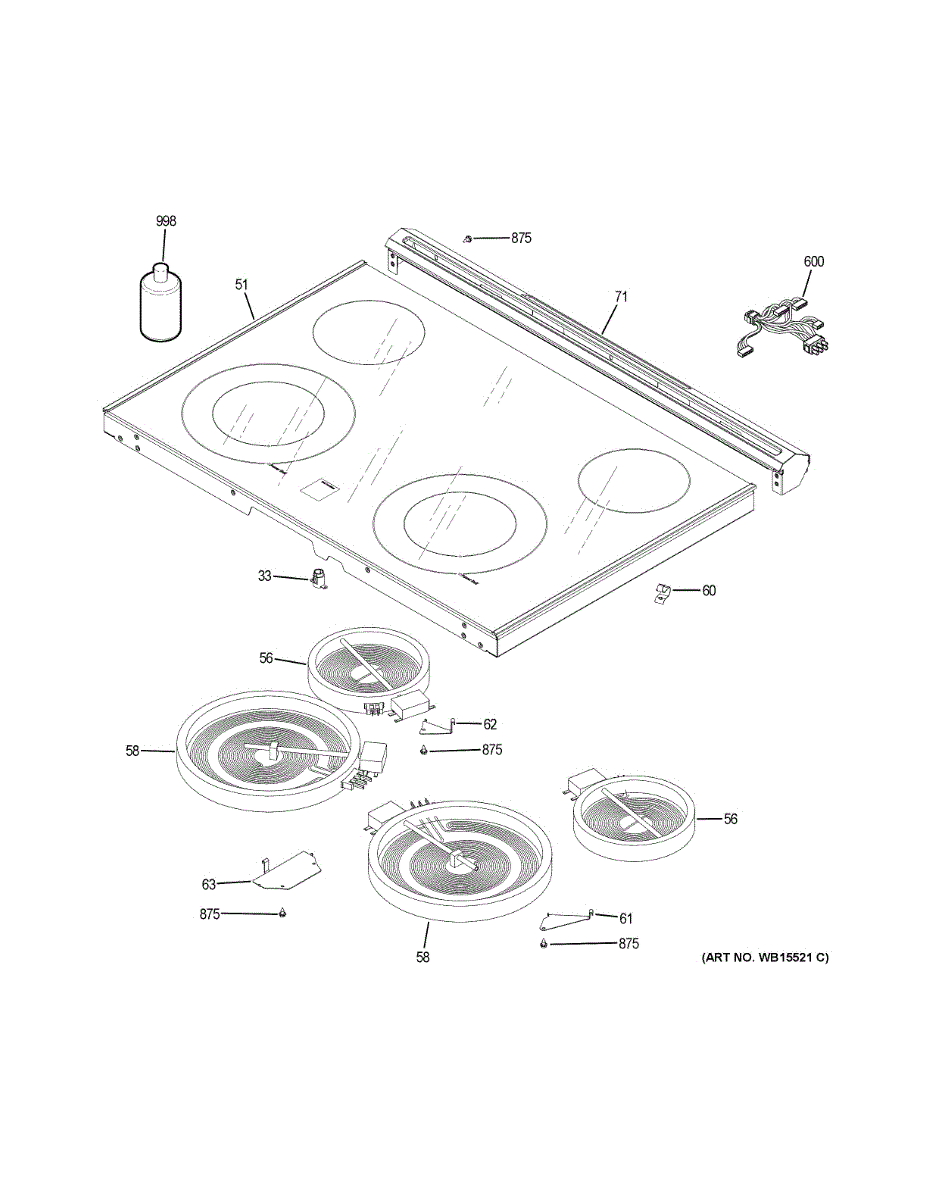

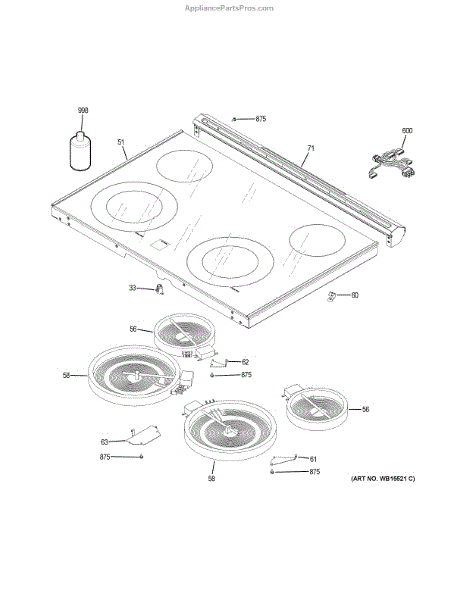

Parts for Ge JS645FL2DS: Cooktop Parts

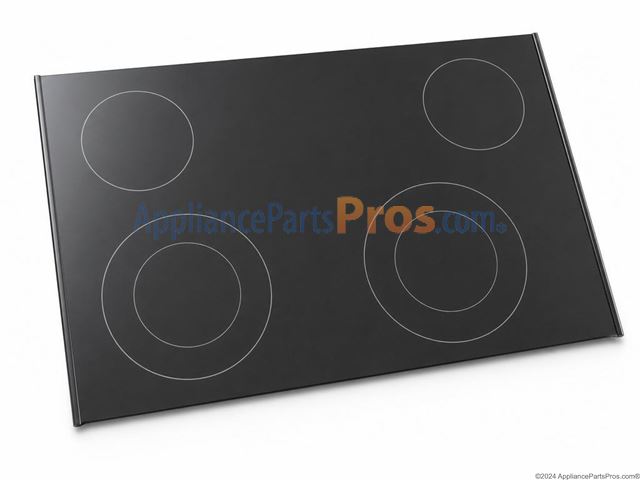

The GE Range Maintop Glass Assembly is an OEM component specifically designed for GE electric ranges. It consists of tempered glass precisely cut and treated to withstand high heat. This assembly serves as the durable cooking surface of the range.

Symptoms of a bad maintop glass assembly include:

• Improper heating or hot or cool spots on the glass surface
• Glare or visibility issues looking through the glass
• The glass making popping or cracking sounds during heating
• Difficulty keeping the surface clean despite regular cleaning

Causes of failure can be fatigue from repeated heating and cooling cycles, accidents like dropped cookware, or flaws in the glass. Over time, everyday use puts stress on the material that will eventually cause damage.

This genuine OEM GE part is compatible with Hotpoint, RCA and select Kenmore ranges.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Radiant 9" Dual is an OEM part for GE ranges and cooktops. This dual-element radiant burner provides versatile cooking options, offering both a small and large heating area within a single burner. It ensures efficient and even heat distribution for a variety of cooking needs, accommodating different pot and pan sizes.

Causes of a bad radiant element can include normal wear and tear, electrical issues, or damage from heavy cookware or impact. Over time, these factors can lead to the element failing to heat properly or not functioning at all.

Symptoms of a bad radiant element include:

• The burner not heating up or heating inconsistently
• Only one of the dual elements functioning
• Visible damage or discoloration on the element
• The burner cycling on and off more frequently than usual

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This radiant element bracket secures the cooktop radiant heating element to the cooktop frame so the element stays properly positioned for safe, reliable heating. Designed to replace a worn, bent, or broken support bracket. What it does

• Holds the radiant heating element in place to prevent movement and misalignment.
• Restores stable contact and positioning, helping eliminate intermittent heating or uneven cooking caused by a loose element.
• Reduces rattling or buzzing sounds from a loose element during operation.
• Prevents strain on element terminals and wiring by maintaining correct support.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Handle the glass or ceramic cooktop and heating element carefully to avoid breakage or cuts.
• Verify bracket orientation and mounting location against the cooktop diagram before tightening.
• Use existing fasteners unless replacement hardware is specified by the manufacturer.

This metal mounting bracket secures a radiant heating element to the cooktop so the element stays aligned and stable during use. It restores proper fit and reduces movement that can cause intermittent contact or uneven heating. What it does:

• Holds the radiant heating element in place to prevent movement or sagging
• Keeps electrical contacts aligned to reduce arcing, flicker, or intermittent heating
• Helps maintain even heat distribution by stabilizing element position
• Replaces a bent, broken, or missing bracket that allows the element to shift

• Disconnect power at the breaker before servicing the cooktop to avoid shock
• Handle the glass cooktop and element carefully to avoid cracking or injury
• Verify correct bracket orientation and mounting location before tightening hardware
• Use basic hand tools; if the element or wiring is damaged, replace those parts.

The Rear Vent Trim and Gasket Assembly is an OEM part for GE ranges. It seals the rear vent opening of the range, directing hot air and potential gas fumes outside through the exhaust vent during oven use. Without an intact seal provided by the gasket and vent trim, combustion byproducts can enter the kitchen presenting safety and performance issues.

Causes of a bad range rear vent assembly include wear over years of use with high heat cycles, cracking or degradation of sealing materials, or damage from cleaning or impacts around the vent area.

Symptoms of an issue include:

• Foul odors detected in the kitchen during use of the oven
• Inefficient or uneven baking and broiling
• Visible openings or gaps seen around the rear vent perimeter
• Detached, cracked, or missing components

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This maintop wiring harness connects the cooktop control and surface components, restoring proper electrical routing across the cooktop assembly. Replacement harnesses prevent intermittent connections and help return reliable burner control. What it does:

• Carries power and control signals between the cooktop switches/controls and surface elements
• Replaces damaged, frayed, or corroded wiring that can cause burners to fail or work intermittently
• Helps stop flickering, loss of heat, or unresponsive surface controls when the harness is the source
• Restores factory routing and connector fit for safe, reliable operation

• Disconnect power to the appliance at the breaker before starting any repair
• Inspect connector ends and routing; match OEM routing and secure any retaining clips
• Replace only with the exact harness; avoid pinching or exposing wires to sharp edges or heat

Black. 8-18 AB HXW 3/8
