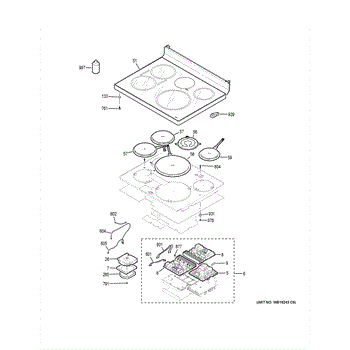

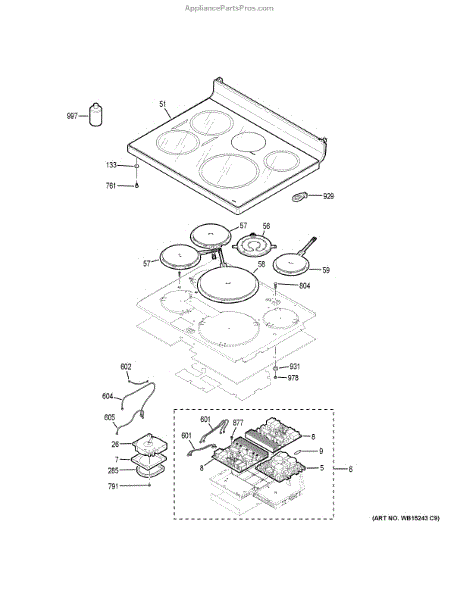

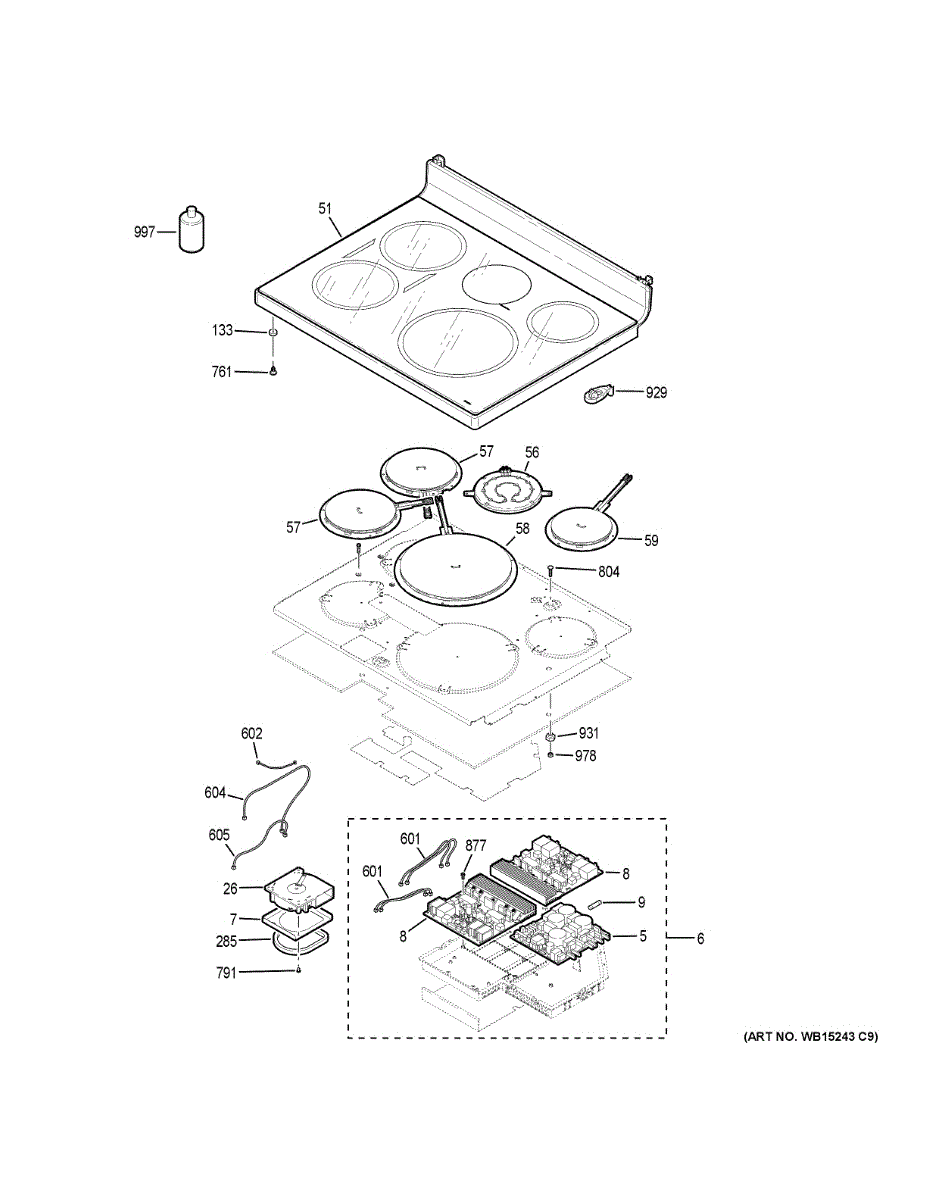

Parts for Ge PCHB920SJ3SS: Cooktop Parts

This induction control assembly replaces the main control board that manages cooktop heating and user commands, restoring normal cooktop operation and responsive control. Designed as a direct-fit replacement for the induction cooktop control module. What it does:

• Regulates power to the induction element(s) so cookware heats correctly
• Interprets touch/display commands and relays settings to the cooktop
• Helps resolve symptoms like unresponsive controls, no heat from an induction zone, or intermittent heating
• Works with the cooktop's safety and sensor feedback to maintain proper operation

• One induction control assembly

• Disconnect power at the breaker before accessing the cooktop; verify power is off with a meter
• Handle the glass cooktop and electronics carefully to avoid damage; use proper protective gear
• Follow the oven/cooktop service manual for disassembly order and connector locations

Generator board assembly that produces the high-voltage spark used to ignite gas burners on compatible ranges and cooktops, helping restore reliable ignition and reduce continuous clicking or no-spark conditions. What it does:

• Generates the spark that lights surface burners and/or the oven burner on gas cooktops and ranges.
• Can stop or reduce continuous clicking with no ignition when the module fails.
• May cause one or more burners to stop sparking or ignite intermittently.
• Works with the range's ignition switches and electrode wires to coordinate safe ignition.

• Disconnect electrical power and shut off the gas supply before starting any work.
• Photograph or label wire locations before disconnecting to ensure correct reconnection.
• Handle the board and connector pins carefully to avoid damage; avoid touching components with bare hands or tools.

This 250V, 20A line fuse safeguards the appliance's power circuit by interrupting current during an overload or short. Replacing a blown fuse can restore power once the root cause is corrected.

• Opens the circuit if current exceeds 20 amps or a short occurs
• Helps protect internal wiring and control components from damage
• Typical blown-fuse symptoms: no power, dead display, won't start
• Restores line continuity after the underlying issue is resolved

• Disconnect power at the breaker/unplug before servicing
• Replace only with the same rating (250V, 20A); never bypass or upsize the fuse
• If a new fuse blows again, stop and diagnose the underlying fault before further replacement

This is a replacement range top glass assembly that restores the cooktop surface and protects internal components while keeping your rangetop looking like new. It replaces broken or damaged cooktop glass on compatible GE range units. What it does:

• Provides a durable, single-piece glass surface for the rangetop
• Replaces cracked, chipped, or shattered cooktop glass that can allow debris into internal components
• Restores a flat, even surface for burner trims and grates to sit correctly
• Helps prevent heat and moisture damage to underlying parts when intact

• One range top glass assembly

• Disconnect power (and gas, if applicable) before beginning; follow all safety precautions when working with glass
• Handle the glass carefully and use appropriate gloves to avoid cuts
• Installation typically requires removing burner grates, burner caps, and trim pieces to lift out the damaged glass and set the new assembly
• Verify proper fit, orientation, and seal before reassembling burners and restoring power

This lower oven warming element heats the oven's warming/holding compartment so food stays warm until serving. Replaces a damaged or non-heating lower element to restore consistent low-temperature operation. What it does:

• Heats the oven's warming/lower compartment for holding cooked food
• Replaces elements that show visible damage, burn-through, or no heat output
• Helps restore even low-temperature performance when the warmer function fails
• Works with the oven's temperature control and safety circuits to provide steady heat

• One lower oven warming element

• Disconnect power at the breaker before beginning any repair
• Wear gloves; element edges and terminals may be sharp
• Verify proper wiring and secure terminal connections during installation

This wiring harness provides the factory electrical connections between the appliance control and related components, restoring reliable power and signal routing for affected circuits. Use when wiring is damaged, burned, or connectors are loose. What it does:

• Re-establishes electrical connections between the control and downstream components
• Replaces damaged, frayed, or burnt wiring that can cause intermittent or no operation
• Restores proper connector fit where loose or corroded terminals cause faults
• Helps stop shorting and arcing from compromised insulation or broken conductors

• Disconnect power to the appliance before starting any service
• Handle connectors by the plastic bodies; avoid pulling on wires
• Route and secure the harness to prevent pinching or contact with hot/moving parts
• If connectors or terminals show corrosion or heat damage, replace per OEM guidance

This wire harness is the factory-style wiring assembly that connects multiple oven/range electrical components to restore proper circuit paths and reliable signal/power routing. It replaces damaged or worn wiring to help appliances operate safely. What it does:

• Routes power and control signals between oven/range components (controls, switches, elements)
• Replaces frayed, burned, or broken wires that can cause intermittent or no operation
• Helps resolve symptoms such as no heat, intermittent heating, or components not receiving power
• Maintains proper connector fit and secure electrical connections when installed correctly

• Always disconnect power (unplug or turn off breaker) before servicing
• Inspect connectors and mounting points; replace if terminals are corroded or damaged
• Route and secure harness per OEM routing to avoid contact with heating elements or sharp edges

Size: 8-18 BA POR 3/4 SN

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

This hex washer head screw secures appliance panels and brackets. The 10-16 x 0.812 size replaces missing or stripped hardware so components stay properly fastened, helping prevent looseness, rattling, and misalignment.

• Fastens metal panels, brackets, and components in compatible appliances
• Replaces a lost, damaged, or corroded screw to restore proper attachment
• Helps reduce vibration, noise, or loose-fitting parts caused by missing hardware
• Correct 10-16 thread and 0.812-inch length for specified mounting points

• Disconnect power; for gas models, also shut off the gas supply.
• Note the original screw's location and orientation before removal.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Use a nut driver or socket that fits the hex head.

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style

This 28 oz bottle of Cerama Bryte Cooktop Cleaner is an OEM replacement part formulated to safely clean electric and ceramic glass cooktops. The biodegradable, non-toxic cleaner removes baked-on spills and splatters without scratching the cooktop surface. Its fresh lemon scent provides a clean aroma while dissolving greasy residue. Cerama Bryte's proprietary formula is designed specifically for cooktops, unlike abrasive all-purpose cleaners that can damage the smooth glass surface over time. Regular use helps maintain the cooktop's shine and appearance. This OEM Cerama Bryte Cooktop Cleaner bottle offers a scratch-free cleaning solution to keep glass electric and ceramic cooktops looking their best. Use it to dissolve spills without damaging the cooktop's delicate surface.
