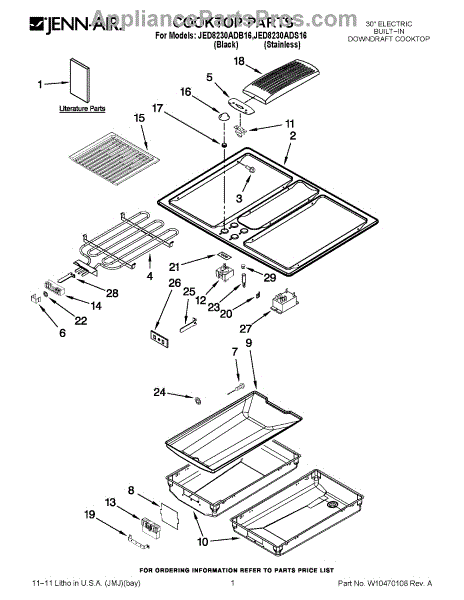

Parts for Jenn-Air JED8230ADS16: 01 - Cooktop Parts

This surface burner infinite switch regulates power to the top burner based on your knob setting. Replacing a failed switch restores smooth, accurate heat control when a burner won't heat correctly, only runs on high, or won't shut off.

• Regulates power cycling to achieve the selected heat level on the surface element
• Common symptoms: burner won't heat, heats only on high, won't turn off, or temperature control is erratic
• Restores responsive burner operation to match knob adjustments

• Disconnect power at the breaker before servicing; allow the cooktop/range to cool.
• Pull off the knob and remove the control/back panel to access the switch.
• Transfer wires to the new switch one at a time to the matching terminals; secure the switch in place.
• Reassemble, reinstall the knob, restore power, and test burner operation.

This replacement surface burner knob restores reliable control of your cooktop or range. It attaches to the control shaft so you can turn the surface element/burner on and accurately adjust the heat level. What it does:

• Mounts on the surface control valve/switch shaft to select OFF and adjust heat settings
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps resolve issues like a knob spinning freely, wobbling, or not staying on the stem
• Restores confident, consistent control over the surface burner/element

• 1 surface burner knob

• Disconnect power and allow all burners to cool; if applicable, shut off gas
• Pull the old knob straight off the control shaft—do not pry against the panel
• Align the new knob with the shaft and press straight on until fully seated
• Verify smooth operation and OFF alignment; reseat if needed

This bracket supports the oven's grill/broiler pan, holding the pan securely during broiling and grilling so food cooks evenly and the pan stays stable. It replaces a worn or broken support bracket. What it does:

• Secures the grill/broiler pan in position so it doesn't shift during use
• Helps maintain proper pan alignment for even browning and cooking
• Prevents rattling or sagging caused by a damaged bracket
• Restores safe support for loading and removing the broiler/grill pan

• One grill pan support bracket

• Designed for oven internal use;
• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Install with existing fasteners; replace any damaged clips or screws if needed

This replacement light lens covers the appliance's bulb, protecting it from contact, moisture, and splashes while diffusing illumination. Replacing a cracked or missing lens restores safe, even lighting and keeps the bulb properly shielded. What it does:

• Shields the bulb from contact, moisture, and debris
• Diffuses light for more even illumination with reduced glare
• Helps protect the socket area from contamination
• Typical symptoms: cracked, warped, or missing lens; discoloration; exposed bulb; harsh or uneven lighting

• Includes: 1 light lens

• Disconnect power to the appliance before servicing; allow the lamp/area to cool completely
• Wear gloves and eye protection when handling an old or broken lens
• Remove retaining screws, tabs, or clips and note lens orientation for reassembly
• Reuse existing hardware if required; do not overtighten; restore power and test light operation
