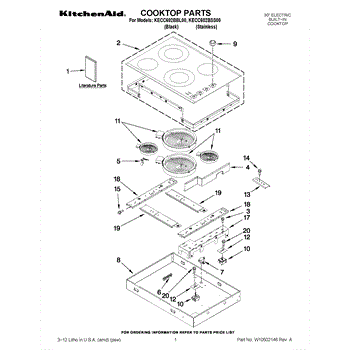

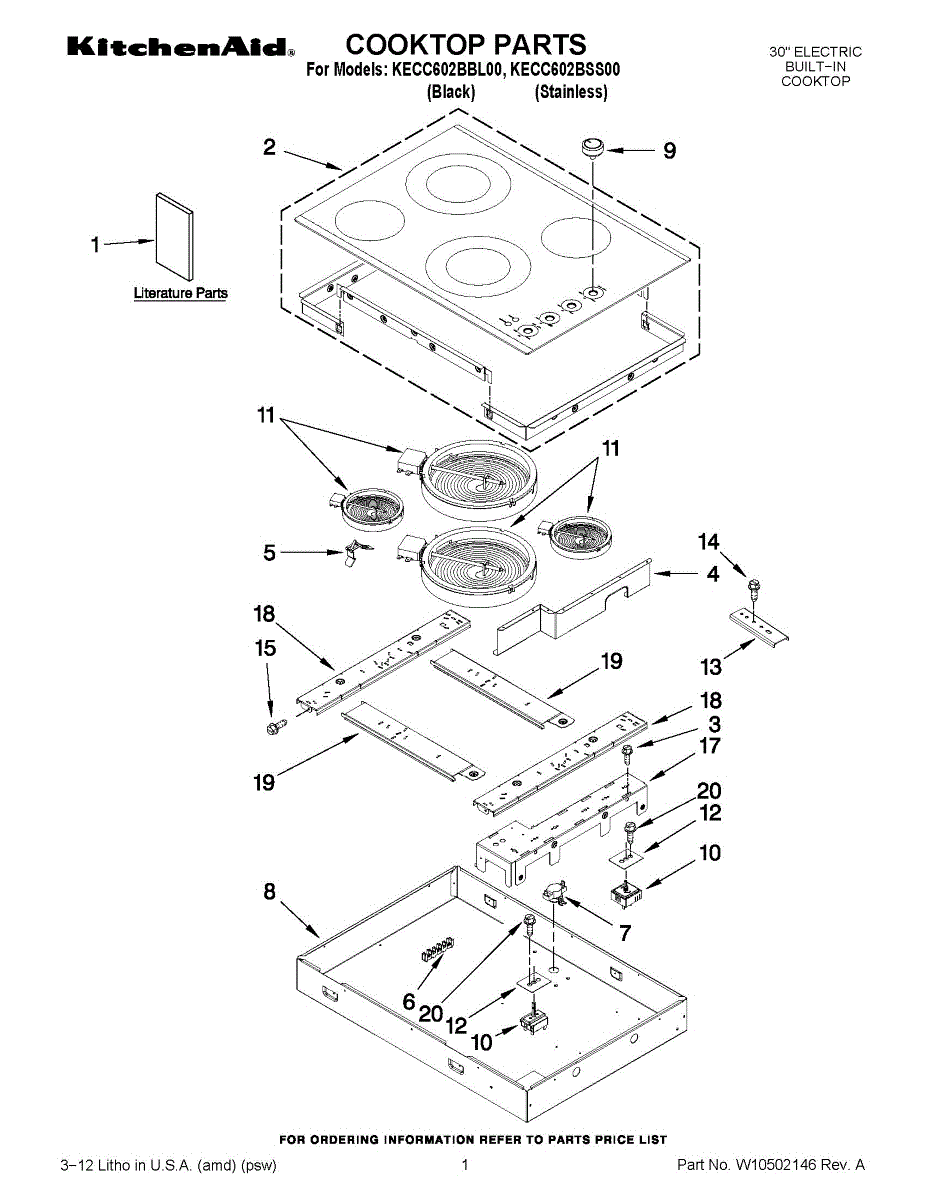

Parts for Kitchenaid KECC602BBL00: 01 - Cooktop Parts

This heat shield protects nearby cabinet and internal components from excess heat by directing and containing heat away from sensitive parts. It helps prevent heat damage and keeps the appliance operating safely. What it does:

• Shields surrounding panels and components from direct contact with heat sources
• Reduces risk of scorched or discolored cabinet surfaces near the heater or burner
• Helps keep insulation and wiring from overheating
• Can stop heat-related noises from expanding metal near the heating area

• One heat shield

• Turn off and unplug the appliance (or shut off gas supply) and allow all components to fully cool before starting
• Use appropriate hand protection; shield edges may be sharp
• Reinstall fasteners snugly but avoid overtightening; follow OEM diagram for correct placement

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

This replacement Thermostat Fix repair kit secures the thermostat assembly to help stabilize temperature sensing and restore consistent appliance performance. It's a small service part used when the thermostat mounting or retention hardware is worn or damaged. What it does

• Secures or replaces thermostat mounting/retention hardware to keep the sensor in proper contact
• Helps reduce intermittent temperature readings or cycling caused by a loose thermostat
• Restores stable thermostat positioning after vibration or wear
• Can stop noise or rattling related to a loose thermostat assembly

• One Thermostat Fix repair part

• Disconnect power to the appliance before servicing to prevent shock or injury
• Access the thermostat area per your appliance's service instructions; retain any screws or clips removed
• Replace the worn or damaged retention piece with this part and verify secure fit before reassembly

This control knob restores manual control of a range or cooktop burner so you can select heat settings with a secure, easy-to-grip dial. Designed to match the original fit and feel for simple replacement. What it does:

• Replaces a cracked, stripped, or missing control knob so you can turn burners or temperature controls smoothly
• Provides tactile detents and clear position changes for reliable setting selection
• Prevents slipping on the shaft that causes inaccurate or inconsistent control
• Helps restore a finished look to the control panel when the original knob is damaged

• Disconnect power (and gas supply if applicable) before servicing the appliance
• Remove the old knob by pulling straight off the control shaft; align splines and push the new knob onto the shaft until seated
• Do not force or hammer the knob onto the shaft; verify correct fit and function before reapplying power or gas
• If the shaft is damaged or the knob doesn't seat properly, inspect the control valve/shaft and replace as needed

This infinite switch controls the heat level for an electric cooktop's surface burner, letting you select and hold precise heating settings for cooking. It replaces a worn or failed burner control to restore adjustable burner power. What it does:

• Regulates electrical power to a single surface/top burner for variable heat
• Enables selection of multiple heat settings rather than fixed on/off
• Commonly used when a burner won't heat, is stuck on a setting, or heats inconsistently
• Works with standard infinite-style rotary control knobs

• Disconnect power to the range at the circuit breaker before starting any work
• Access typically requires removing the cooktop or control panel—refer to your model's service instructions
• Handle glass or ceramic cooktops carefully to avoid damage during removal/installation

This surface burner infinite switch regulates power to a range or cooktop's heating element, letting you adjust heat from simmer to boil. Replace a failed switch to restore smooth, consistent temperature control at the knob.

• Regulates the on/off cycling of a surface element based on the selected knob setting
• Can help resolve a burner not heating, stuck on high, or heat that won't adjust consistently
• Addresses intermittent heating or a burner that won't turn off
• Installs in the control panel behind the surface burner knob

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control panel; label or photograph wire positions on the old switch
• Move wires to the matching terminals on the new switch and secure the switch
• Reinstall the knob, restore power, and test burner operation

This dual radiant surface element restores even, responsive heat to a smooth-top range or cooktop. It replaces a failed burner so the inner and outer rings heat correctly for dependable everyday cooking.

• Provides heat to a dual-size cooking zone beneath the glass surface
• Works with the surface control to use the inner ring alone or both inner and outer rings
• Common symptoms: burner won't heat, only one ring heats, slow or uneven heating, visible scorching or damage on the element
• Helps restore consistent temperature control and full dual-ring operation

• Disconnect power at the breaker before servicing; elements carry high current
• Lift or remove the cooktop to access the element
• Note wire locations and transfer any mounting brackets/clips from the old element
• Center the element under the burner outline and secure all connections before restoring power

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model
