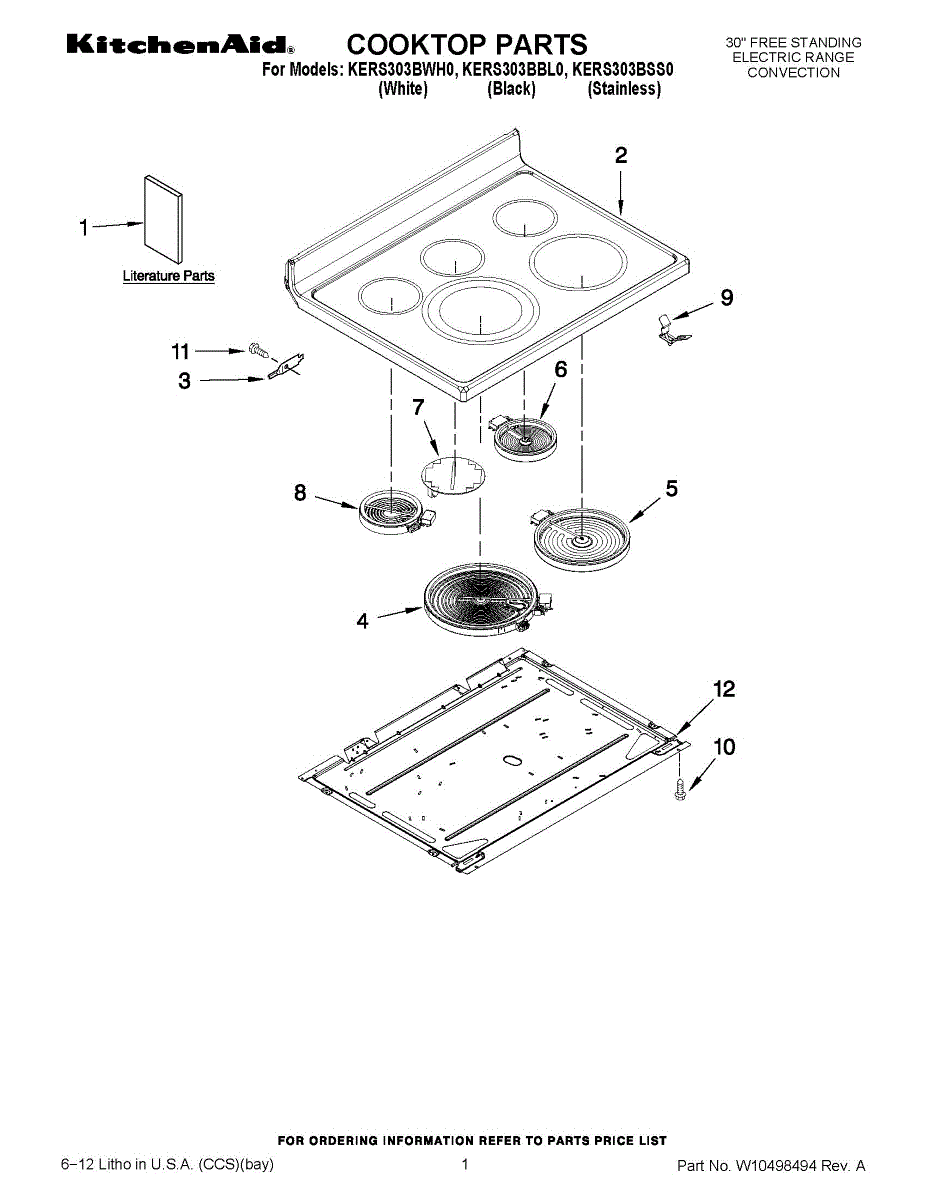

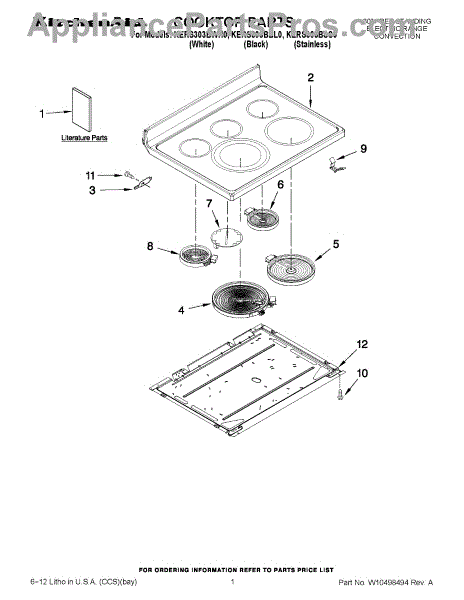

Parts for Kitchenaid KERS303BBL0: 01 - Cooktop Parts

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

This surface heating element replaces a failed or damaged top burner element to restore cooking heat on electric ranges. It fits into the cooktop and delivers the correct wattage for standard and high-heat cooking zones. What it does:

• Heats cookware when the burner control is on, providing standard and high-power heating at 2200W and 3000W ratings.
• Commonly used when a burner fails to heat, heats intermittently, or produces uneven cooking.
• Replaces cracked, warped, or non-functioning surface elements to regain normal cooktop performance.
• Works with compatible range receptacles and support brackets to form a complete burner assembly.

• One surface heating element (3000/2200W top burner) — element only.

• Disconnect power to the range at the breaker before starting any work.
• Handle the element carefully to avoid bending terminals or damaging insulation.
• Ensure the element seats fully in the burner receptacle and that terminal screws are secure.

Replace a failed surface heating element to restore reliable, even heat on your electric cooktop or range. This 3200-watt element helps get that cooking zone working properly again.

• Generates heat for the selected surface burner when turned on
• Works with the control to reach and maintain the set cooking temperature
• Useful when the old element shows visible breaks or burn marks

• Disconnect power at the breaker/fuse box and allow the cooktop to cool completely
• Access the element beneath the cooktop top panel per your model's procedure
• Label/photograph wire locations; transfer wires and any mounting hardware from the old element
• Handle the element and glass surface carefully to prevent damage

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This replacement surface heating element restores direct heat to a cooktop burner so pots and pans heat properly. It's a straightforward swap for a damaged or non-heating top burner coil. What it does:

• Heats cookware by providing the cooktop's surface heating element for the top burner
• Replaces elements that no longer glow, get intermittently hot, or fail to heat at all
• Restores even cooking when an old or damaged element causes uneven heating
• Works with controls and infinite switches that send power to the burner

• One surface heating (top burner) element

• Disconnect power to the range before attempting service to avoid shock hazard
• Allow the old element to cool completely before removal; handle the element by its base only
• Ensure the replacement is seated and connected to the terminal block securely before testing

This is a radiant surface heating element for smooth-top electric ranges. It replaces a failed burner to restore up to 1300 watts of even heat and dependable temperature control under the glass-ceramic cooktop. What it does:

• Generates radiant heat beneath the glass surface when powered by the burner control
• Restores proper heating if a burner will not heat, heats unevenly, or cycles off too quickly
• Helps eliminate long heat-up times caused by a weakened or open element
• Replaces elements with visible damage such as broken ribbons, burn spots, or charred terminals

• 1 radiant surface element (1300W)

• Disconnect power at the breaker or unplug the range before servicing
• Allow the cooktop to cool fully; lift/prop the glass top to access the element
• Note wire positions; transfer any mounting brackets/clips from the old element and reconnect wires securely
• Handle the element carefully and avoid stressing the ribbon; reassemble and test the burner before finalizing

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

Size: 8-18 x 1/2 inch.

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable
