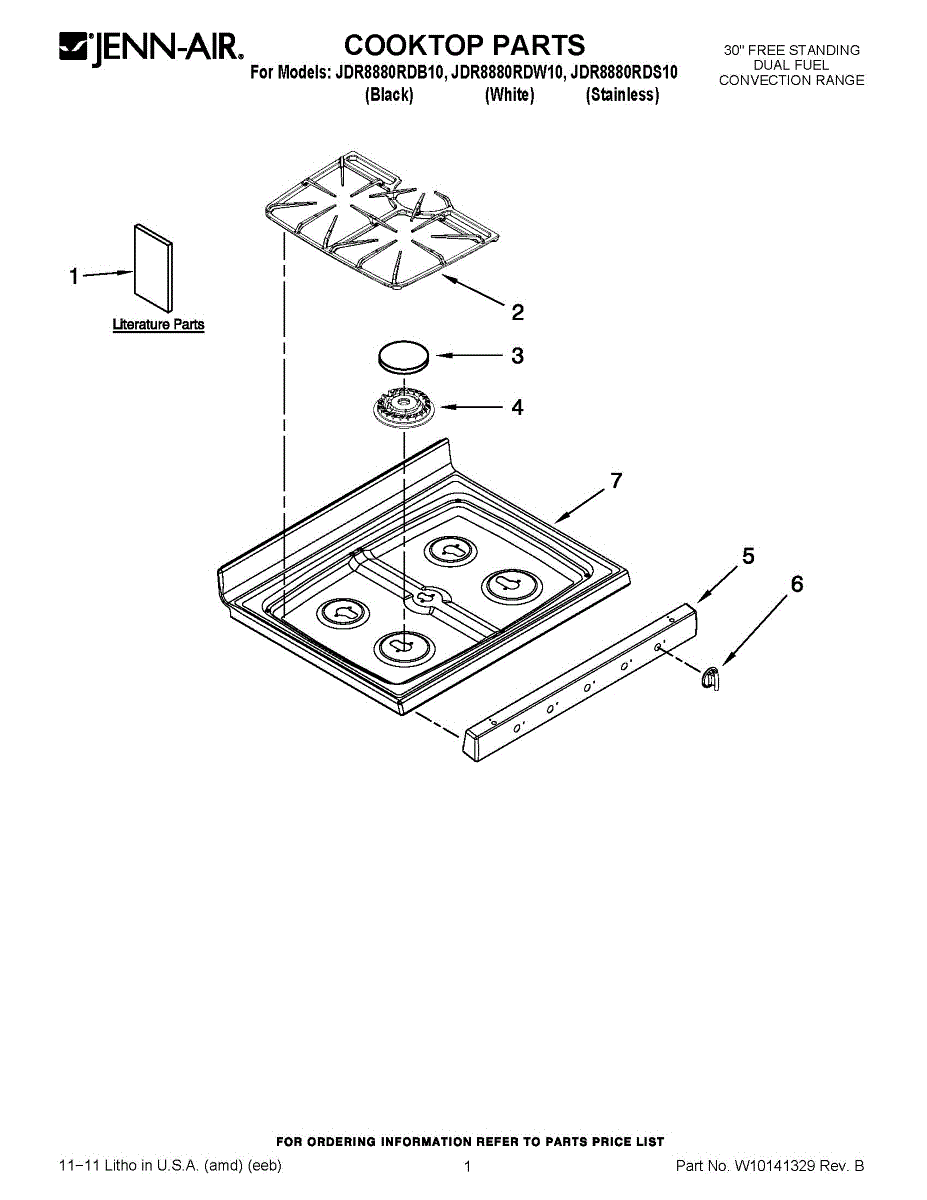

Parts for Maytag JDR8880RDB10: 01 - Cooktop Parts

Color: Black. Dual.

Color: White. Dual.

This large gray burner cap fits over a cooktop's burner head to protect burner ports and help shape the flame for even cooking. Replacing a damaged cap restores proper burner appearance and helps maintain consistent heat. What it does:

• Covers the burner head to protect ports from spills and debris
• Helps direct and stabilize the burner flame for more even heating
• Can reduce flame irregularities caused by warped or cracked caps
• Restores the cooktop's finished appearance when original cap is chipped or discolored

• One large gray burner cap

• Turn off the appliance and ensure all surfaces are cool before starting
• Remove old cap by lifting straight off; set new cap in place so it seats flat on the burner head
• Clean burner head and surrounding area of debris before installation

Color: Black

Color: Black. Size: Large.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

The Top Burner Control Knob is an OEM part for Whirlpool ranges and cooktops. This part is crucial for the precise control of the heat output from the burners, allowing users to adjust the flame or element temperature accurately. It fits directly onto the stem of the burner switch, providing a tactile interface for easy operation.

Causes of a bad Top Burner Control Knob can include cracking, melting, or fading from exposure to heat or aggressive cleaning, as well as internal damage that can prevent the knob from engaging with the burner switch correctly.

Symptoms of a bad Top Burner Control Knob include:

• Difficulty in turning the knob or a lack of resistance which indicates a failure to engage with the burner switch.
• Visible damage such as cracks, warping, or melting that interferes with function.
• Faded or worn labels that make it difficult to see the settings.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
