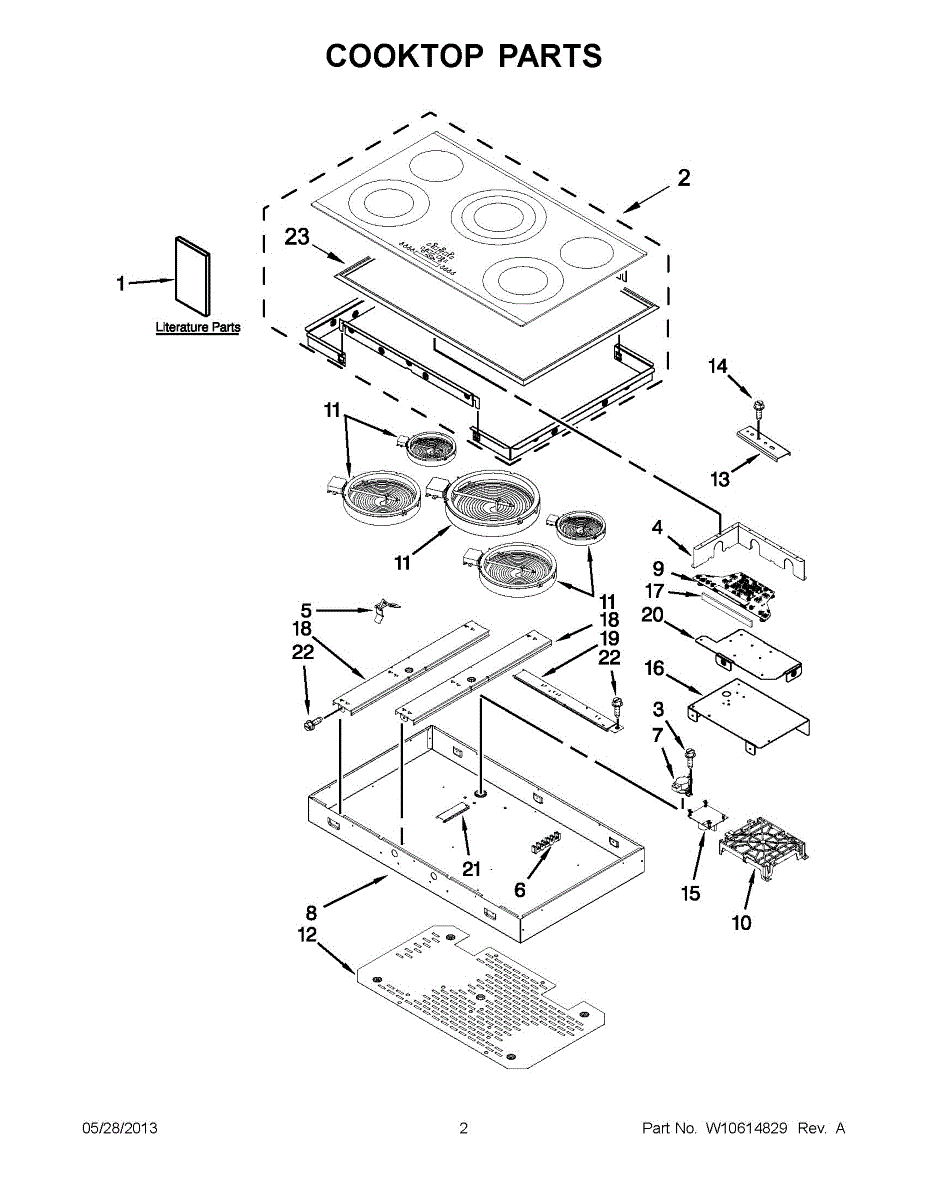

Parts for Maytag JEC4536BS00: 01 - Cooktop Parts

Replace your cooktop's damaged or worn main top assembly. This structural component forms the cooking surface. Ideal for cracked, chipped, or stained tops.

Fix a loose or wobbly burner element with this push spring. Restores proper tension to keep your heating element securely seated and maintains stable contact.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement Thermostat Fix repair kit secures the thermostat assembly to help stabilize temperature sensing and restore consistent appliance performance. It's a small service part used when the thermostat mounting or retention hardware is worn or damaged. What it does

• Secures or replaces thermostat mounting/retention hardware to keep the sensor in proper contact
• Helps reduce intermittent temperature readings or cycling caused by a loose thermostat
• Restores stable thermostat positioning after vibration or wear
• Can stop noise or rattling related to a loose thermostat assembly

• One Thermostat Fix repair part

• Disconnect power to the appliance before servicing to prevent shock or injury
• Access the thermostat area per your appliance's service instructions; retain any screws or clips removed
• Replace the worn or damaged retention piece with this part and verify secure fit before reassembly

If your cooktop burners won't respond to controls or the display is malfunctioning, this electronic control module manages all cooktop functions and inputs.

Burner not heating or heating unevenly? This surface heating element restores proper cooking temperature. Moderate DIY repair in 15-30 minutes.

Burner won't heat or only reaches low temperature? This 700W surface heating element restores precise simmering and low-heat cooking. DIY-friendly fix.

Burner not heating or heating unevenly? This dual radiant surface element restores consistent heat to both rings. DIY-friendly, installs in 15 minutes.

This is a 1200-watt, 6-inch radiant heating element designed for a glass-top electric range. It sits beneath the cooktop glass and radiates heat upward to the cooking surface when activated. Replace this element if the burner does not heat, heats unevenly, or fails to reach the correct temperature despite the control being set properly.

Hardware kit with screws and brackets to secure cooktop components. Replaces worn, missing, or damaged mounting fasteners for proper fit and stability.

This power supply is the electronic control board that provides the regulated voltages and control signals needed for the appliance's user console and main controls to operate reliably. It restores proper power distribution so controls can respond. What it does:

• Converts incoming AC to the low-voltage DC used by the console and control circuitry.
• Powers display, buttons, and control relays so the appliance can receive and execute commands.
• Common symptom: blank or unresponsive display/console.
• Common symptom: intermittent or total loss of control functions, or failure to start cycles.

• Disconnect power before servicing to avoid electrical shock.
• Handle the board by its edges and avoid ESD (static) damage—use proper grounding.
• Reassemble panels and secure connectors fully; test control functions after installation.
