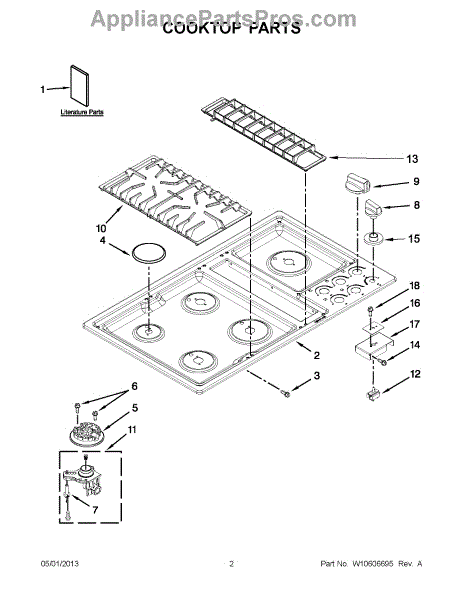

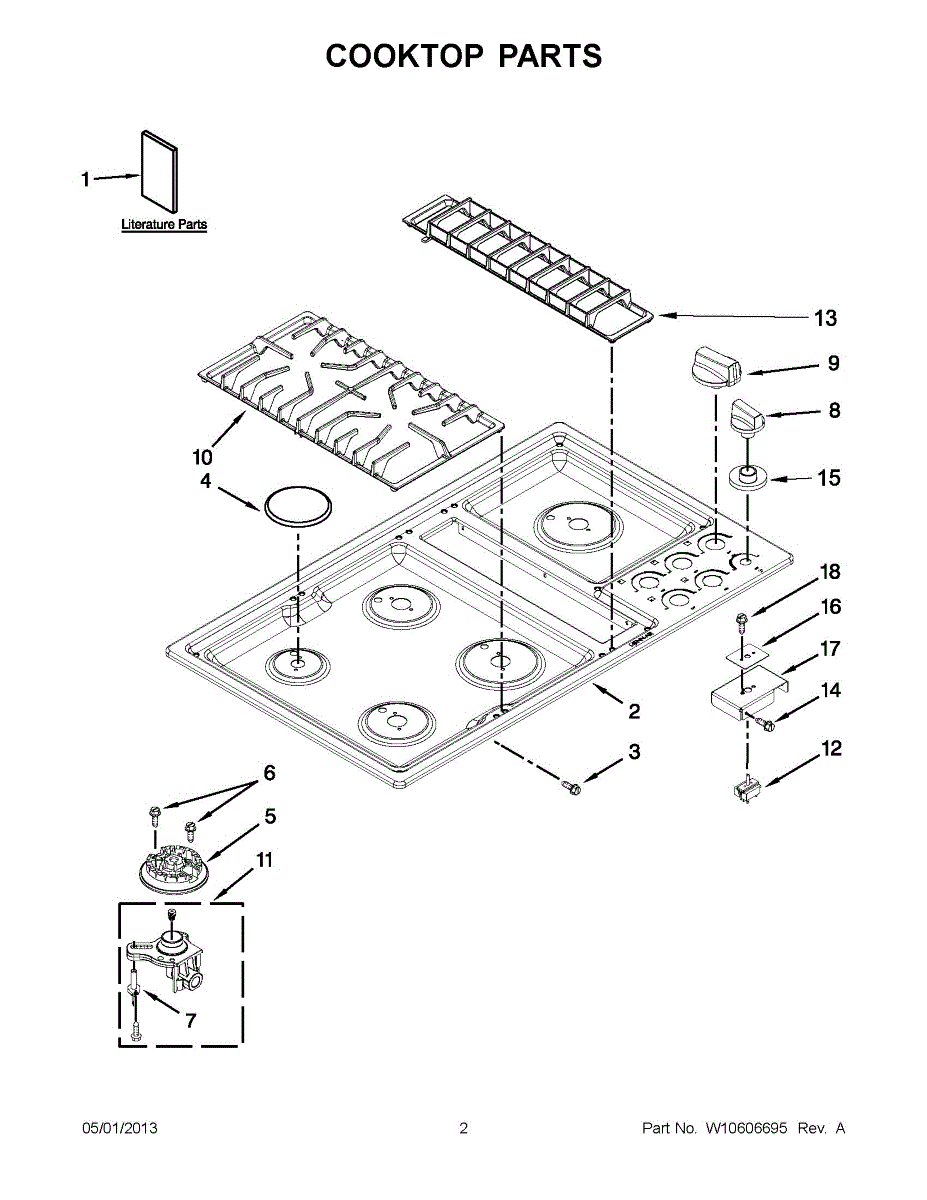

Parts for Maytag JGD3536BB00: 01 - Cooktop Parts

Color: Wetstone

Color: Wetstone

Color: Wetstone

Color: Black

Color: Black

Color: Black

Color: Black

Color: White

Color: Stainless

Color: White

Color: Black

Color: Stainless

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

This orifice holder secures the gas orifice at the burner tube, maintaining correct gas flow for reliable ignition and steady flames. It's used on compatible gas cooktop/range burners to restore proper burner performance. What it does

• Holds the burner orifice in the correct position so gas flows evenly to the burner ports
• Helps restore steady, even flame size and consistent ignition
• Commonly replaced when the orifice or holder is damaged, corroded, or misaligned
• Works with 12.5k orifices designed for specified burner output

• One orifice holder (12.5k)

• Turn off the gas supply and unplug the appliance before starting work
• Remove burner grates and caps to access the holder; handle parts carefully to avoid damage
• Reinstall securely so the orifice seats correctly; check for proper ignition and flame pattern after reassembly

This gas surface-burner orifice holder serves the 15K burner position on many cooktops/ranges. It routes gas from the valve to the burner orifice and keeps the burner properly aligned for consistent ignition and flame.

• Channels gas from the surface valve to the orifice for the 15K burner
• Rigidly locates the burner base and orifice for correct flame pattern and ignition
• Common symptoms of a failed holder include: burner clicking but not lighting, weak/small or uneven flame, or intermittent ignition on that burner
• Replacement restores proper alignment and gas flow at the affected burner

• Shut off gas supply and disconnect power; allow the appliance to cool
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Note orientation, disconnect tubing, remove mounting screws, and install the new holder in the same position; transfer any fittings as needed
• After reassembly, perform a soap-and-water leak check at all serviced connections before use

This blower speed switch lets you select the blower/fan speed to restore proper airflow control in your appliance. It replaces a worn or faulty speed selector so the blower will respond correctly when you change settings. What it does:

• Controls the blower/fan speed so the appliance can run at selectable airflow levels
• Replaces a switch that is stuck, unresponsive, or only running at one speed
• Restores reliable electrical connection between the control circuit and blower motor
• Helps eliminate intermittent fan operation or loss of speed selection

• Disconnect power to the appliance before starting any repair.
• Verify wiring placement and retain original fasteners; wiring diagram for correct connections.
• Handle terminals carefully to avoid bending or damaging contacts.

Color: White

This black grommet seals and cushions a gas cooktop component to protect wiring and prevent chafing, helping maintain safe operation and reduce vibration noise. Designed as a direct-fit replacement for the original equipment part. What it does:

• Provides a protective barrier where wires or tubing pass through metal openings to prevent abrasion and shorting
• Cushions components to reduce vibration and rattling during operation
• Helps maintain a gas appliance's original routing and secure fit for ignition/wiring assemblies
• Commonly replaced when the grommet becomes cracked, split, hardened, or missing

• One black grommet

• Disconnect power and shut off gas supply before servicing the appliance
• Inspect surrounding wiring and tubing; replace damaged wiring or loose clamps as needed
• Press the grommet into the mounting hole until fully seated; ensure wiring/tubing pass cleanly through

Color: Stainless

This switch mounting bracket secures a control or door switch in place so the appliance's switch stays aligned and operates reliably. Simple, durable replacement to restore proper switch positioning and prevent intermittent contact. What it does:

• Holds a momentary or microswitch in the correct position for reliable actuation
• Keeps switch contacts aligned to prevent sticking or intermittent operation
• Restores proper function if a broken or bent bracket prevents the switch from engaging
• Prevents vibration-related switch misalignment that can cause erratic behavior

• One switch mounting bracket

• Disconnect power to the appliance before starting any repair
• Inspect surrounding plastic or metal mounting points for damage and replace if needed
• Use appropriate fasteners and do not overtighten to avoid cracking the bracket
