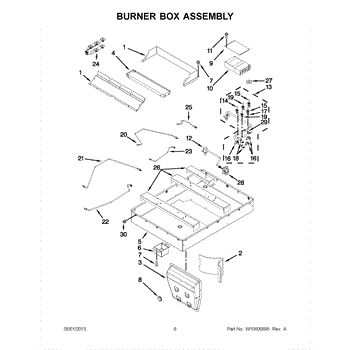

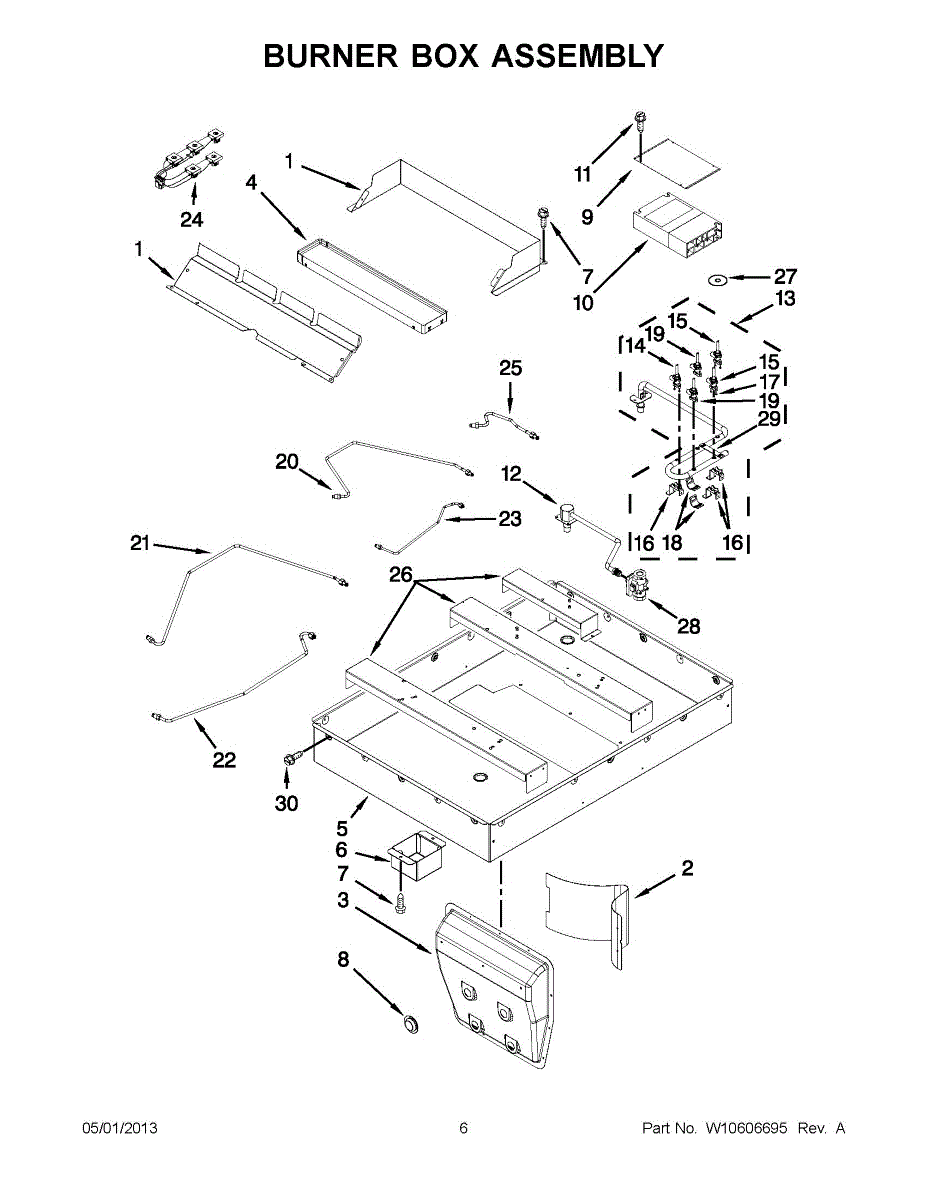

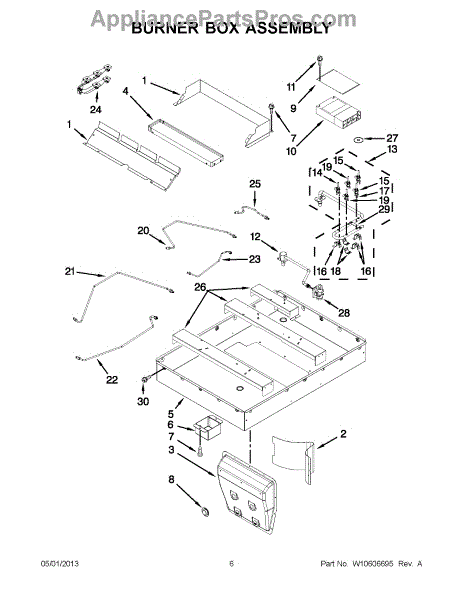

Parts for Maytag JGD3536BB00: 03 - Burner Box Assembly Parts

Replacement drip pan that sits beneath cooktop burners to catch spills, grease, and food debris. Replaces cracked, warped, or missing pans.

If your gas burners won't spark or click when you turn the knob, the spark ignition module has likely failed. This part sends high-voltage pulses.

Gas supply tube for gas cooktops. Connects the gas valve to burners. Replace if tube is cracked, corroded, leaking, or damaged during maintenance.

Fix a burner with low flame, no flame, or uneven heating by replacing the gas valve. This valve restores proper gas flow control to your cooktop burner.

Mounting screw secures internal components in your cooktop. Replace if screw is stripped, missing, or loose to ensure proper assembly and stability.

Fix a burner that won't ignite or has weak flames by replacing the gas valve. Controls gas flow to restore reliable ignition and consistent heat output.

This is a wiring harness assembly that routes electrical connections between components inside the range or oven. It carries power and control signals to elements such as igniters, switches, and other internal parts. Replace this harness if you experience intermittent burner ignition, error codes related to electrical faults, or visible damage such as burned, melted, or frayed wires.

Gas valve shaft seal.

Controls and stabilizes gas supply to your cooktop's burner system. Replace if the regulator is damaged, leaking, or failing to maintain proper pressure.

Torx screw secures burner assemblies, igniters, and internal components in gas cooktops and ranges. Replace rusted, stripped, or broken screws.
