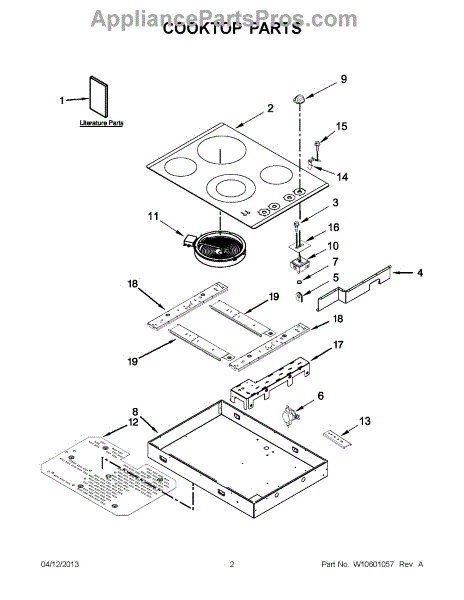

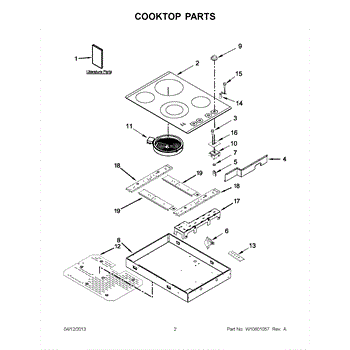

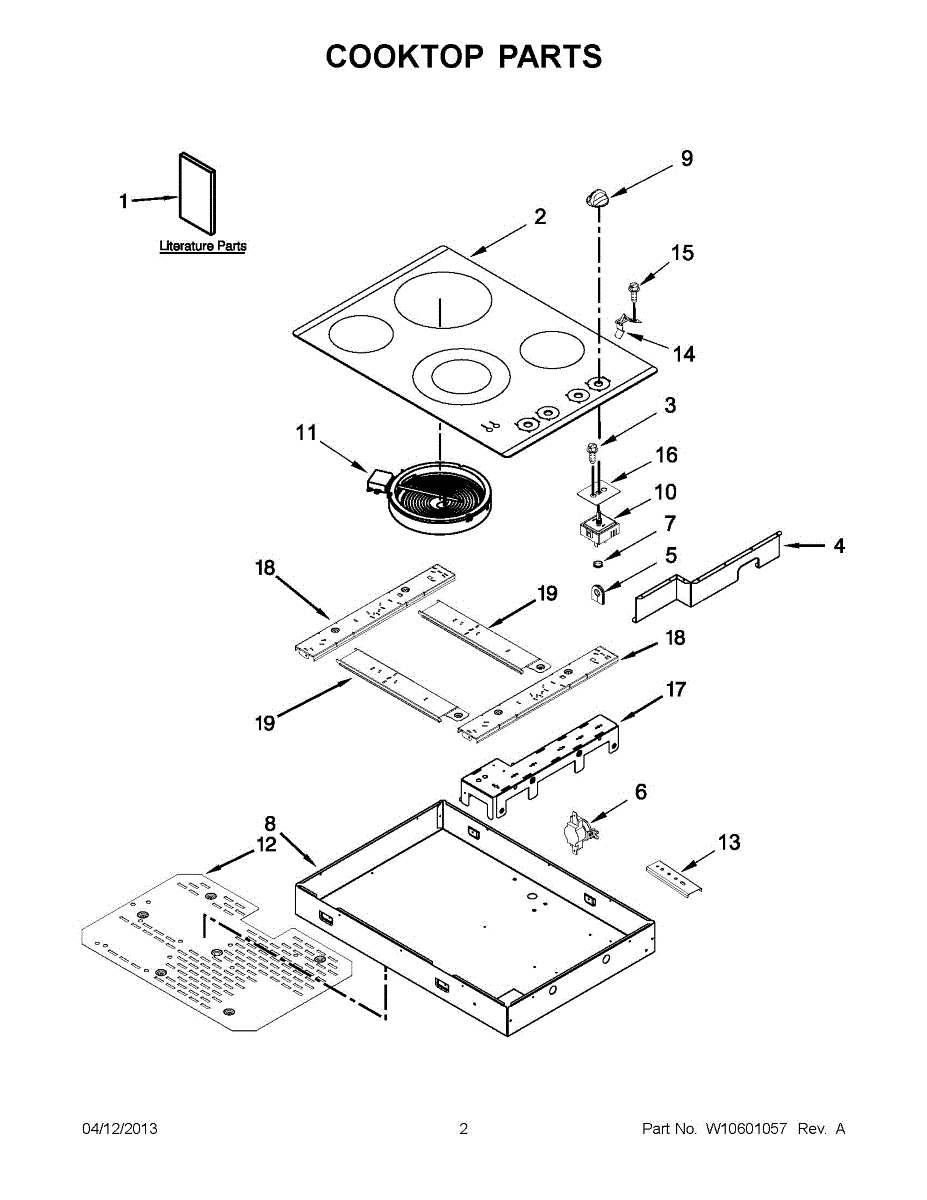

Parts for Maytag MEC7430BB00: 01 - Cooktop Parts

This single-piece glass cooktop is the smooth top surface for compatible electric range cooktops, restoring a level cooking area and protective finish. It replaces a cracked, scratched, or burned cooktop surface to improve appearance and function. What it does:

• Provides the smooth glass surface for electric cooktop heating elements and cookware
• Restores a sealed, easy-to-clean cooking surface after cracks, deep scratches, or heat damage
• Helps maintain proper clearance and support for burners and controls
• Reduces the risk of food buildup around burner openings that can affect performance

• One single-piece glass cooktop surface

• Install only with the correct OEM mounting hardware and gasketing for your model
• Disconnect power to the range before servicing to avoid electrical shock
• Handle the glass carefully; use two people for safe positioning to avoid breakage or injury
• If mounting clips, brackets, or trim are damaged, replace them to ensure a secure fit

This glass smooth-top cooktop is a factory-style replacement that restores the cooking surface on compatible electric ranges, improving appearance and providing a safe, flat surface for cookware. What it does

• Replaces a cracked, chipped, or heavily scratched cooktop surface to restore a smooth cooking area.
• Covers and protects internal components and burner elements beneath the glass surface.
• Helps maintain even contact with cookware for proper heat transfer when installed correctly.
• Addresses visible damage and cosmetic wear that can compromise safety and appearance.

• Disconnect power at the breaker before starting any work to avoid shock.
• Handle the glass carefully; wear cut-resistant gloves and eye protection.
• Installation may require two people to safely lift and position the glass and to access mounting hardware.
• Follow the appliance-specific service manual for proper mounting and re-connection.

This heat shield protects nearby cabinet and internal components from excess heat by directing and containing heat away from sensitive parts. It helps prevent heat damage and keeps the appliance operating safely. What it does:

• Shields surrounding panels and components from direct contact with heat sources
• Reduces risk of scorched or discolored cabinet surfaces near the heater or burner
• Helps keep insulation and wiring from overheating
• Can stop heat-related noises from expanding metal near the heating area

• One heat shield

• Turn off and unplug the appliance (or shut off gas supply) and allow all components to fully cool before starting
• Use appropriate hand protection; shield edges may be sharp
• Reinstall fasteners snugly but avoid overtightening; follow OEM diagram for correct placement

This replacement Thermostat Fix repair kit secures the thermostat assembly to help stabilize temperature sensing and restore consistent appliance performance. It's a small service part used when the thermostat mounting or retention hardware is worn or damaged. What it does

• Secures or replaces thermostat mounting/retention hardware to keep the sensor in proper contact
• Helps reduce intermittent temperature readings or cycling caused by a loose thermostat
• Restores stable thermostat positioning after vibration or wear
• Can stop noise or rattling related to a loose thermostat assembly

• One Thermostat Fix repair part

• Disconnect power to the appliance before servicing to prevent shock or injury
• Access the thermostat area per your appliance's service instructions; retain any screws or clips removed
• Replace the worn or damaged retention piece with this part and verify secure fit before reassembly

Color: black. Measures about 1-1/2 inches in diameter.

Color: White

This replacement control knob restores user control of appliance settings and provides a secure, easy-to-grip surface for turning dials. It's designed to replace a worn, missing, or damaged knob so you can set temperatures or functions with confidence. What it does:

• Replaces a worn, cracked, or missing control knob to restore manual control
• Allows precise selection of heat, temperature, or function settings
• Provides a secure grip when turning the appliance dial
• Helps resolve symptoms like a loose, hard-to-turn, or unreadable knob

• Disconnect power to the appliance before starting any repair
• Align the knob splines with the shaft and push straight on until it seats; do not force
• Keep removed hardware and old parts for reference during reassembly

Color: Stainless

This infinite switch is the user control for an electric cooktop surface element, letting you select variable heat settings for cooking. Replaces a failed control to restore responsive temperature adjustments. What it does:

• Regulates power to a surface heating element so the burner cycles through low to high heat settings
• Helps fix burners that won't heat, only work on certain settings, or don't change temperature smoothly
• Provides a direct replacement for a worn or intermittent burner control that causes inconsistent cooking
• Works with ranges that use a separate infinite-style selector for each top burner

• One infinite switch

• Disconnect power to the range at the breaker before servicing to avoid shock risk
• Access usually requires removing the back console or cooktop—refer to your model's service manual for instructions
• Handle terminals carefully; ensure correct wiring and secure connections before testing

This surface burner infinite switch regulates power to a range or cooktop's heating element, letting you adjust heat from simmer to boil. Replace a failed switch to restore smooth, consistent temperature control at the knob.

• Regulates the on/off cycling of a surface element based on the selected knob setting
• Can help resolve a burner not heating, stuck on high, or heat that won't adjust consistently
• Addresses intermittent heating or a burner that won't turn off
• Installs in the control panel behind the surface burner knob

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control panel; label or photograph wire positions on the old switch
• Move wires to the matching terminals on the new switch and secure the switch
• Reinstall the knob, restore power, and test burner operation

This dual infinite switch controls power to a dual radiant surface element, providing smooth, adjustable heat for the inner ring or both rings of the burner. Replace a worn switch to restore precise temperature control and consistent performance.

• Regulates voltage to the surface element for variable heat levels
• Selects inner-only or dual-ring operation as designed by the control
• Common symptoms of a failed switch: no heat, stuck on high, uneven or unresponsive temperature, only one ring heats
• Helps restore reliable low-to-high settings on the dual burner

• Disconnect electrical power at the breaker before servicing
• Remove the control/back panel and knob to access the switch
• Photograph wiring and transfer leads one at a time to matching terminals on the new switch
• Secure the switch, reassemble panels/knob, restore power, and test both single- and dual-ring settings

This is a replacement surface heating element for electric cooktops that restores high-heat performance and reliable stovetop cooking. The 3200W Hyper design provides strong heat output for everyday boiling and frying needs. What it does:

• Heats cookware on the stove when the burner control is turned on.
• Replaces a burned-out, cracked, or non-heating top burner element.
• Helps resolve issues such as no heat, uneven heating, or visible element damage.
• Works with compatible electric range surface terminals to restore burner function.

• Disconnect power to the range at the breaker before servicing.
• Allow the old element and cooktop to cool completely before handling.
• Handle the element by the base and reconnect only to matching terminals; ensure it seats securely.

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Surface Element is an OEM part for Whirlpool ranges. It is responsible for providing the heat necessary for cooking on the stovetop. Designed to fit seamlessly into the range, this element ensures even heating and efficient energy use, allowing for precise temperature control during cooking.

Causes of a bad surface element can include normal wear and tear, electrical faults, or damage from cookware. Over time, repeated heating and cooling cycles can cause the element to degrade, while physical impacts or spills can also lead to malfunction.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage or burn marks on the element
• Sparks or unusual noises when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 3000/1400W - Left front element

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly
