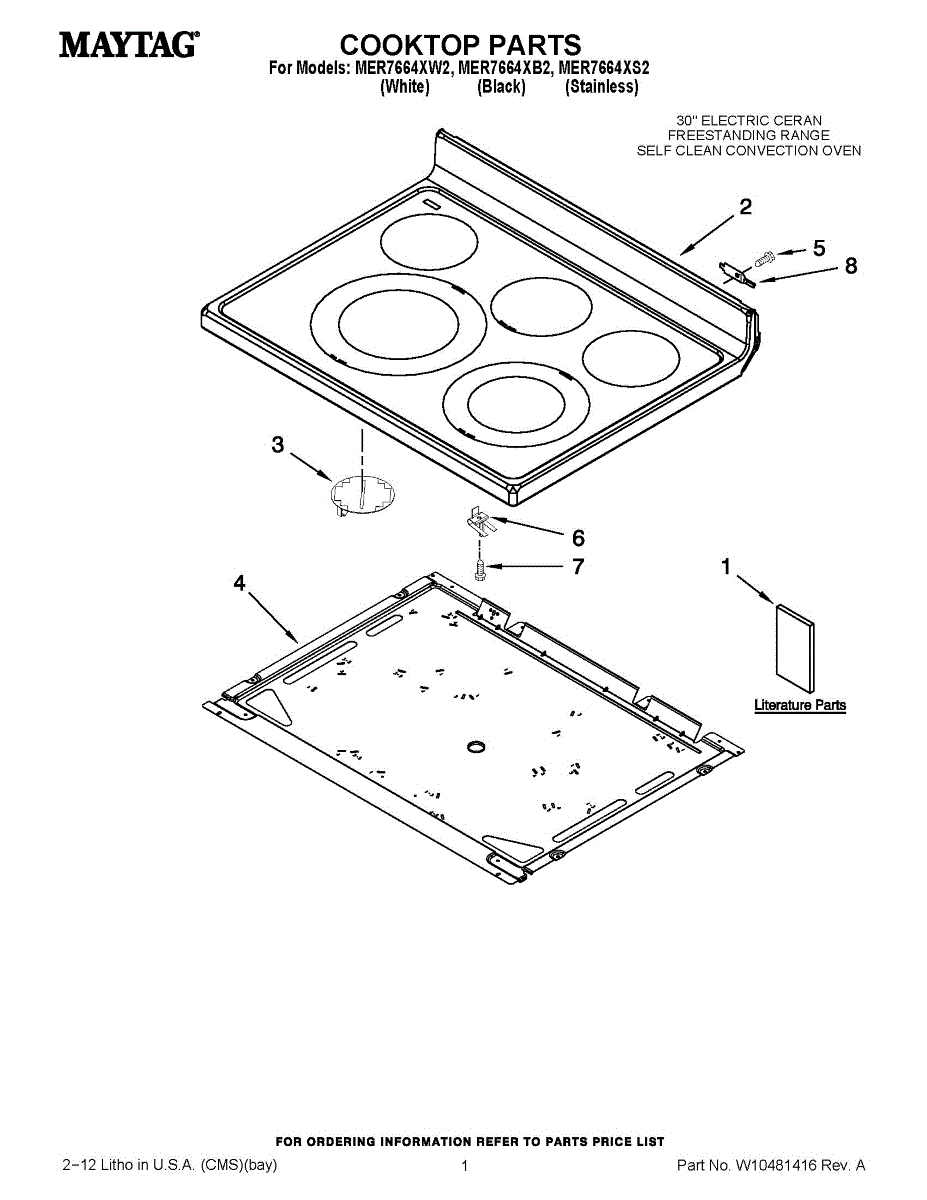

Parts for Maytag MER7664XB2: 01 - Cooktop Parts

This replacement surface heating element restores direct heat to a cooktop burner so pots and pans heat properly. It's a straightforward swap for a damaged or non-heating top burner coil. What it does:

• Heats cookware by providing the cooktop's surface heating element for the top burner
• Replaces elements that no longer glow, get intermittently hot, or fail to heat at all
• Restores even cooking when an old or damaged element causes uneven heating
• Works with controls and infinite switches that send power to the burner

• One surface heating (top burner) element

• Disconnect power to the range before attempting service to avoid shock hazard
• Allow the old element to cool completely before removal; handle the element by its base only
• Ensure the replacement is seated and connected to the terminal block securely before testing

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Fix a loose or wobbly burner element with this push spring. Restores proper tension to keep your heating element securely seated and maintains stable contact.

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas
