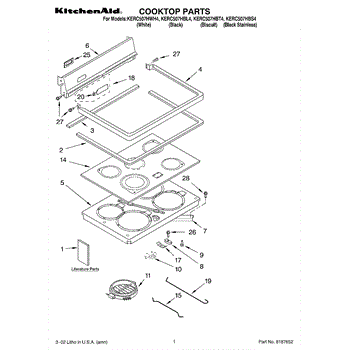

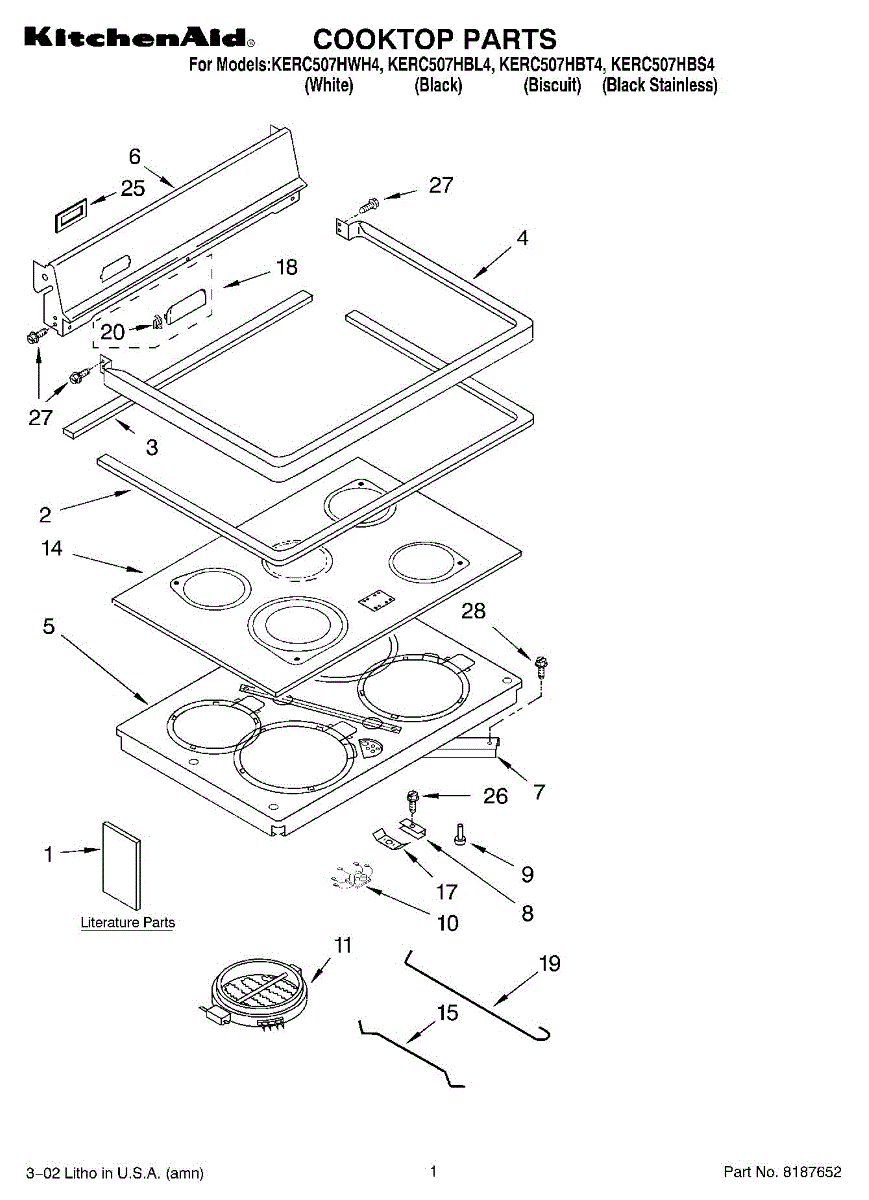

Parts for Kitchenaid KERC507HBT4: 01 - Cooktop, Literature Parts

Seals the gap between your range cooktop and countertop to prevent spills from entering the cabinet. Replace when worn or missing for a secure fit.

Rubber bumper. Color: Grey.

Replace a weak or failed warming zone that won't keep food at serving temperature. This surface element restores low, steady heat to your cooktop's warming zone.

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Burner won't heat or stays cold? This surface heating element restores consistent heat distribution. Most DIYers complete this repair in under 30 minutes.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

Color: White

Color: Black

Small, ceran element rod.

Large, ceran element rod.

Size: 10-16 x 1/2 inch.
