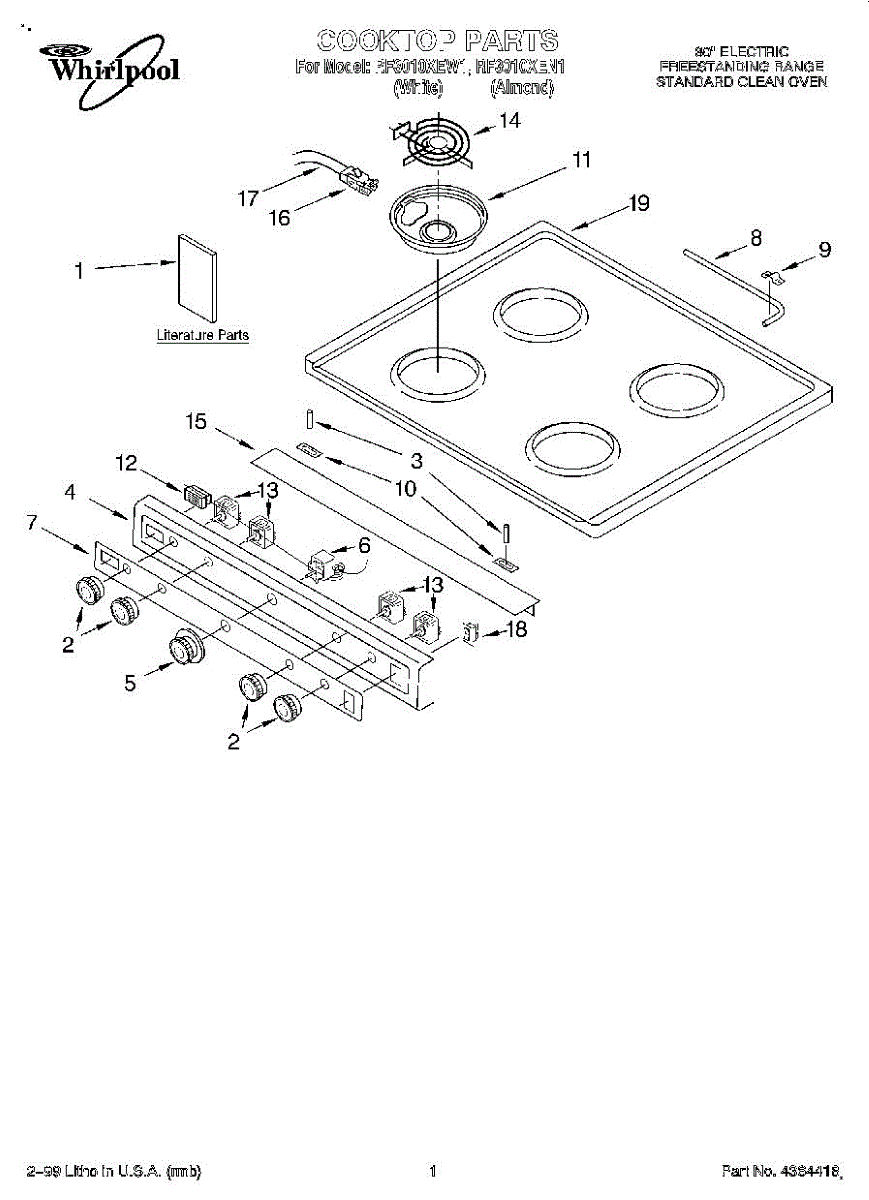

Parts for Whirlpool RF3010XEW1: 01 - Cooktop, Literature Parts

Size: 6-32 x 9/32 inch.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

This infinite switch controls the heat output of a cooktop's surface burner, letting the element move smoothly between low and high settings for consistent cooking. It replaces a worn or failed burner control to restore variable heat control. What it does:

• Regulates electrical current to a surface burner so heat can be adjusted across multiple settings
• Helps restore steady heating when a burner won't reach or hold the correct temperature
• Commonly replaces a switch that is unresponsive, has no power to the element, or causes erratic heat changes
• Works with mechanical knob controls to provide continuous adjustment rather than fixed steps

• One infinite switch

• Disconnect power to the range at the breaker before inspecting or replacing the switch
• Handle terminals and wiring carefully; connections match the original switch
• Surface and surrounding parts may be hot — allow the cooktop to cool fully before starting

Restore steady cooking performance with this surface element coil. The 6-inch, 1250-watt burner replaces a worn or open coil so your range heats properly for everyday simmering, sautéing, and boiling.

• Generates heat on a 6-inch cooking zone for boiling, sautéing, and simmering
• Fixes a burner that won't heat or only heats intermittently
• Addresses uneven heating or unusually slow warm-up
• Helps when the coil shows visible breaks, blistering, or burned spots

• Disconnect power at the breaker and let the cooktop cool completely
• Remove the old coil and inspect the receptacle/terminal block; replace if burnt or loose
• Align prongs and press the new coil fully into the receptacle; ensure the support bracket seats in the drip pan notch
• After installation, test the burner with a pan to ensure even heating

This factory replacement screw fastens appliance components securely. Use it to replace lost, stripped, or corroded hardware and restore a snug, rattle-free fit and proper alignment of panels and assemblies.

• Secures panels, brackets, and internal components to their mounting points
• Replaces missing or damaged fasteners to maintain correct alignment
• Helps eliminate vibration and rattling caused by loose hardware
• Restores the original fit with OEM-matched threads and dimensions

• Disconnect power and shut off water or gas supplies before servicing
• Use the correct driver bit that matches the screw head to avoid stripping
• Replace one fastener at a time to keep parts aligned
• Tighten snugly; do not overtighten to prevent stripped threads or cracked plastic

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
