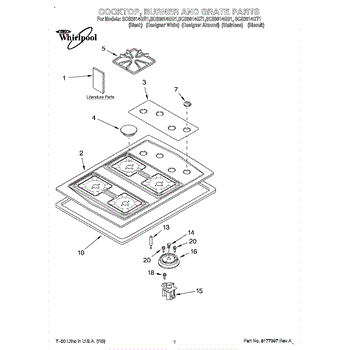

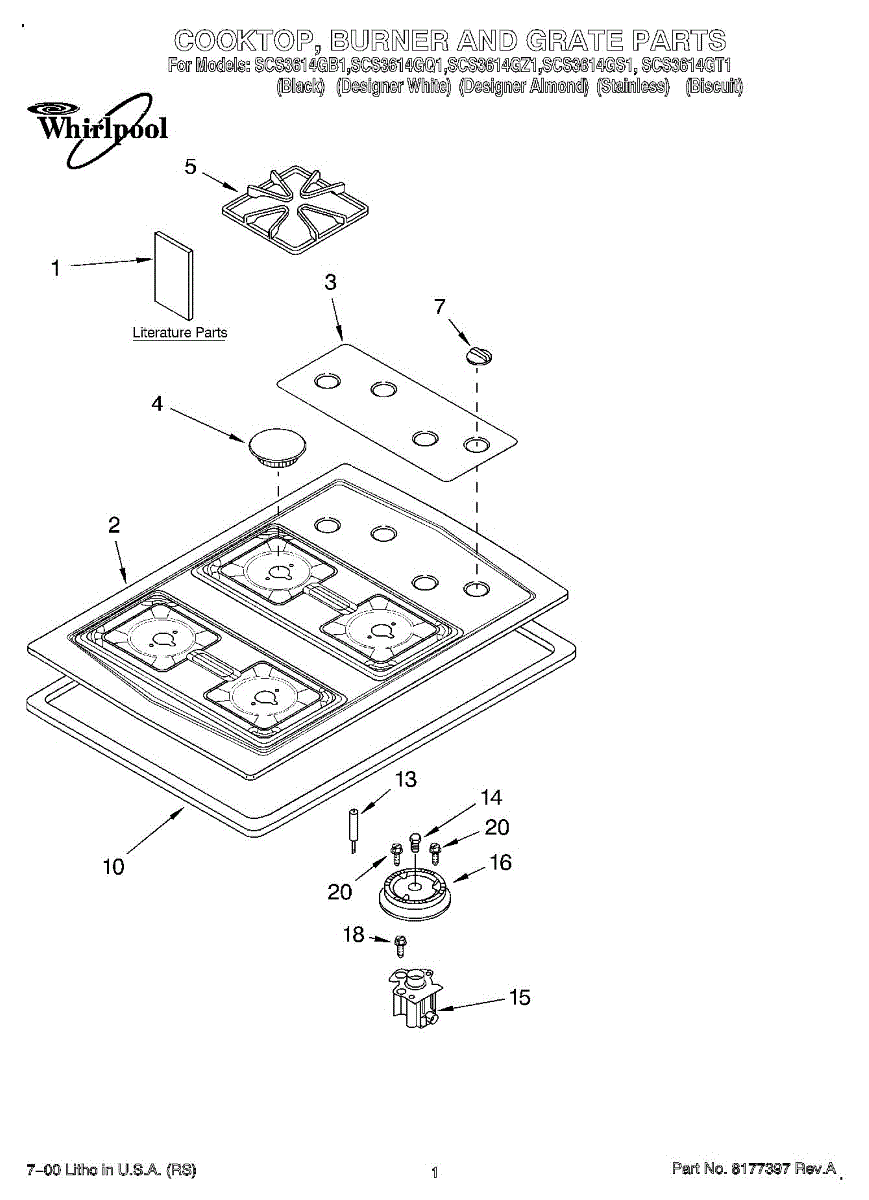

Parts for Whirlpool SCS3614GS1: 01 - Cooktop, Burner And Grate Parts

Color: Black. Other colors: For white use 3191284, for almond use 3191285.

Color: White. Other colors: For black use 3191283, for almond use 3191285.

Color: Almond. Other colors: For black use 3191283, for white use 3191284.

Color: Gray. Size: Small. For black order WP3191898. For the large cap order WP3191905.

The Range Burner Cap is an OEM replacement part designed for Whirlpool ranges. This burner cap fits medium-sized burners and evenly distributes the flame from the burner, providing stable cooking heat. It also acts as a protective cover, preventing debris from clogging the burner and ensuring efficient operation.

Causes of a bad burner cap can include regular wear and tear, damage from high temperatures, or accidental impact during cleaning or cooking.

Color: Gray

Symptoms of a faulty burner cap include:

• Uneven or inconsistent flames
• Lost or missing
• Visible cracks or warping on the cap

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Gray. Size: Large. Matching small cap: WP3191899. Color options: Black WP3191904.

Color: Black. This large cap measures about 3 inches in diameter. For gray order WP3191905. For the small cap order WP3191898.

Medium. Color: Black. Measures about 2-1/2 inches in diameter.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

Color: Black. For gray order WPW10447925.

The Grate Kit is an OEM part for Whirlpool gas ranges. The burner grates sit on top of the stove, providing a stable surface for pots and pans during cooking. These grates are designed to withstand high temperatures and support cookware securely. Note: Kit of 4 grates

Causes of a bad grate can include prolonged exposure to heat, accidental dropping of heavy cookware, or normal wear and tear from regular use.

Symptoms of a bad grate include:

• Chipped or cracked grates
• Uneven or unstable surface for cookware
• Difficulty balancing pots and pans during cooking
• Rust or discoloration on the grate surface

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: black. Measures about 1-1/2 inches in diameter.

Color: black. Measures about 1-1/2 inches in diameter.

Replacement electrode that creates the spark needed to light a gas range or cooktop burner, restoring reliable ignition and consistent burner operation for safe, predictable cooking. What it does

• Produces the spark at the burner to ignite gas when the control is turned on.
• Replaces a cracked, fouled, or non-sparking electrode that prevents burners from lighting.
• Can resolve weak, intermittent, or no-ignition symptoms and reduce continuous clicking.
• Works as the ignition element for the cooktop/range burner assembly.

• Disconnect power and shut off the gas supply before starting any service; allow the appliance to cool completely.
• Handle the ceramic tip and wiring gently—do not force or bend the electrode.
• Use basic hand tools to access and secure the electrode; confirm correct alignment and tight mounting.

Location: Left front.

Location: Right rear & left rear.

Locaction: Left front. 14,000 BTU.

Includes spark electrode.

Includes spark electrode.

Includes spark electrode.

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Size: Small

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: Large.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

Size: 15 inches long.

Size: 28 inches long.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
