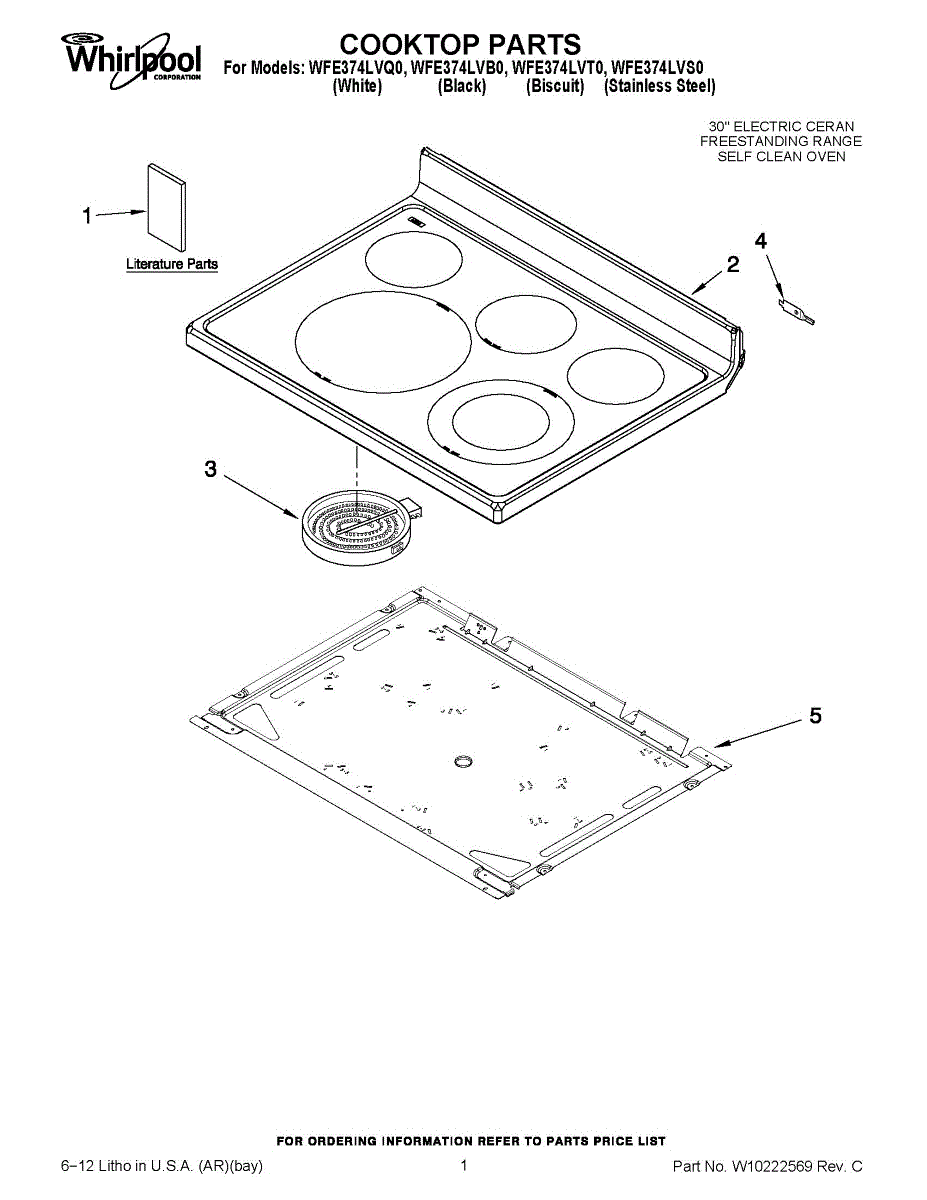

Parts for Whirlpool WFE374LVB0: 01 - Cooktop Parts

Fix a non-working warm zone on your electric range with this surface heating element. Restores low-temperature heating for keeping food warm. DIY repair.

Burner not heating or 'Hot Surface' light stays on? This electric cooktop surface element is likely the fix. DIY-friendly, most installs take 15 minutes.

The Surface Element is an OEM part for Whirlpool ranges. It is responsible for providing the heat necessary for cooking on the stovetop. Designed to fit seamlessly into the range, this element ensures even heating and efficient energy use, allowing for precise temperature control during cooking.

Causes of a bad surface element can include normal wear and tear, electrical faults, or damage from cookware. Over time, repeated heating and cooling cycles can cause the element to degrade, while physical impacts or spills can also lead to malfunction.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage or burn marks on the element
• Sparks or unusual noises when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 3000/1400W - Left front element

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

Replace your range's bottom pan if it's rusted, warped, or damaged. This pan installs beneath the oven cavity to protect the base and collect debris.
