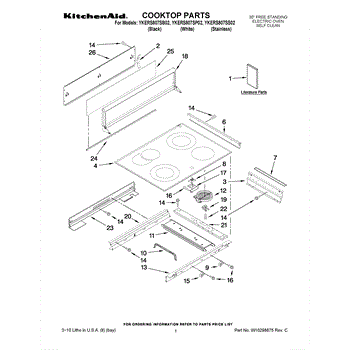

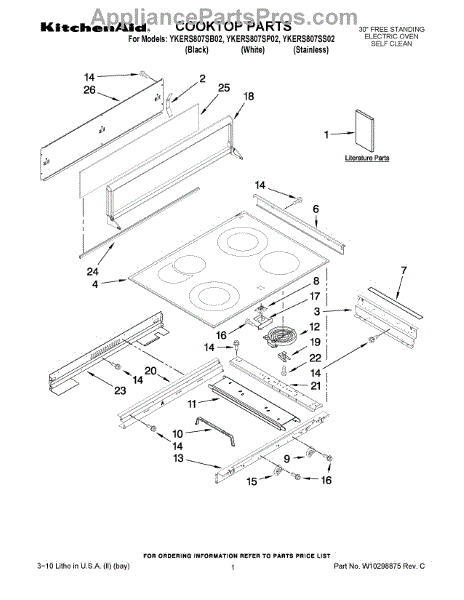

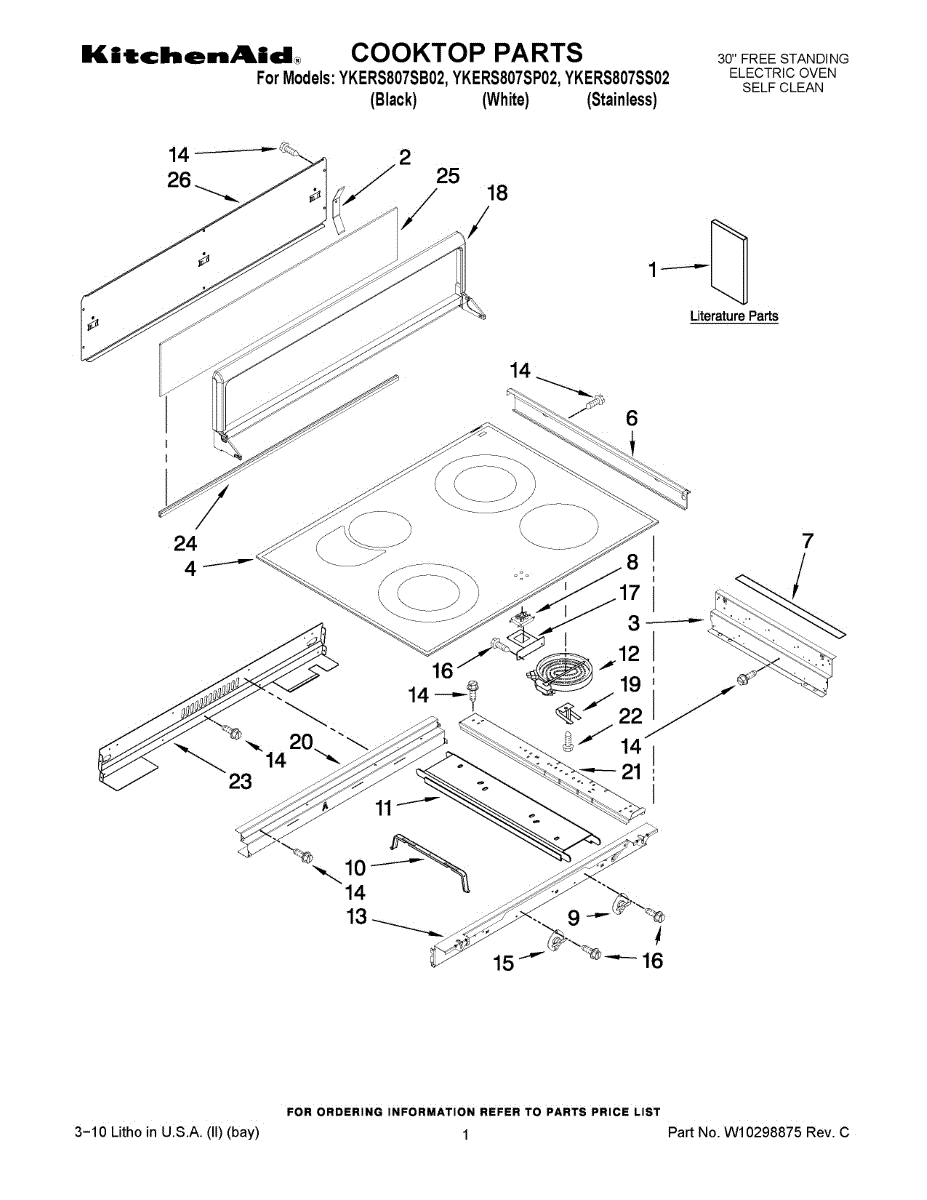

Parts for Whirlpool YKERS807SS02: 01 - Cooktop Parts

This part has been discontinued and is no longer available

Secures your oven gasket in place for a tight seal and consistent cooking. Replace if gasket is loose or heat escapes. Confirm fit with your model number.

Hot surface

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

Burner won't heat or stays cold? This surface heating element restores consistent heat distribution. Most DIYers complete this repair in under 30 minutes.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: White

Color: Black

Replacement tension spring for cooktop assemblies. Restores proper tension for moving components. Order when original is stretched, broken, or missing.

Size: 6-32 x 3/8 inch.

This is a black gasket that seals the gap between the range backsplash and the control panel or countertop area. It prevents moisture, grease, and food debris from getting behind the appliance. Replace this gasket if it is cracked, warped, or missing, which can allow spills to seep into areas that are difficult to clean or could damage internal components.
