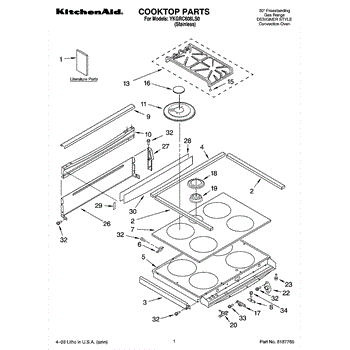

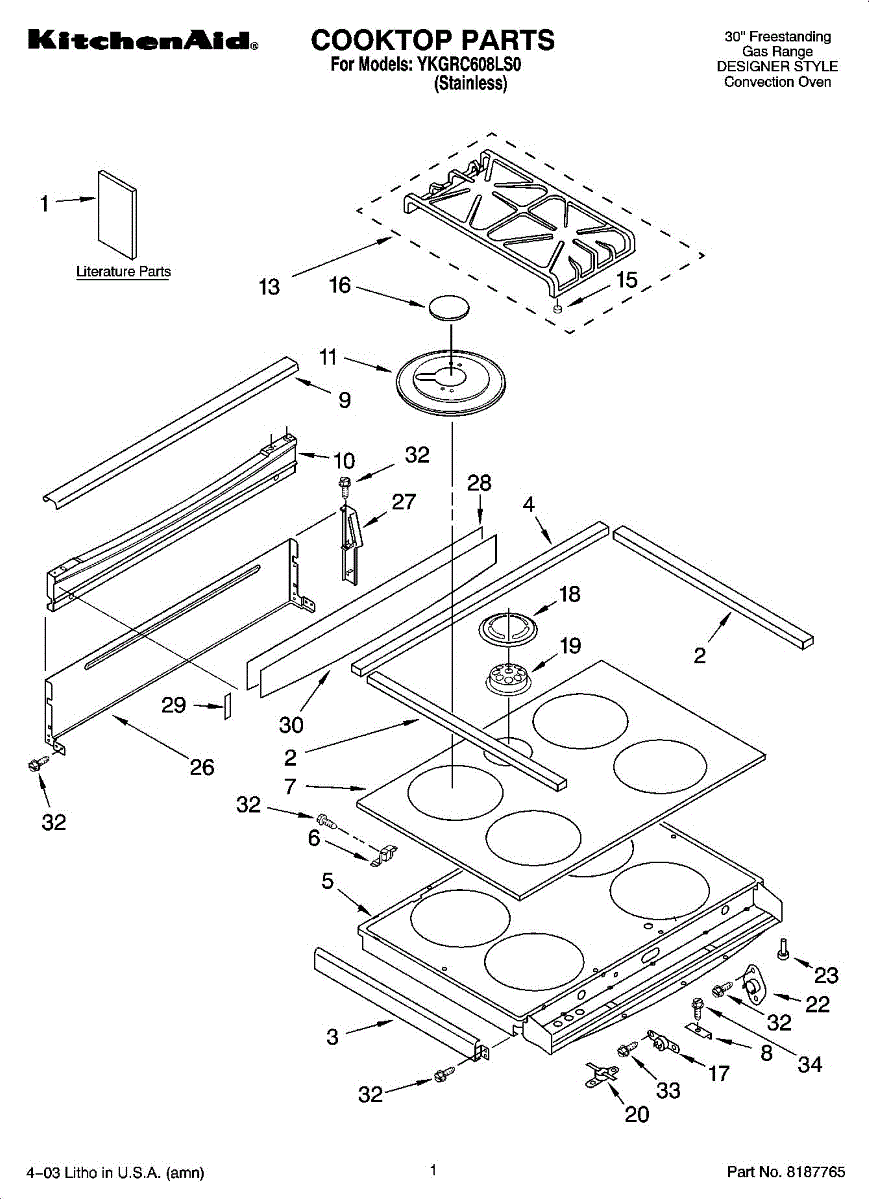

Parts for Whirlpool YKGRC608LS0: 01 - Cooktop Parts

Seals the gap between your range cooktop and countertop to prevent spills from entering the cabinet. Replace when worn or missing for a secure fit.

Color: Black.

Color: Black.

Color: Black. Other colors: For opaque white use [AP300846], for biscuit use 9753606CT.

Color: Black. Other colors: For biscuit use 9753320, for white use 9751327.

Color: Black.

Color: Black. Location: Right rear. 12K.

Color: Black. Location: Left front. 14K.

Color: Black.

Replacement foot pad kit for range grates. Installs underneath grate legs to cushion and stabilize. Replace when worn, cracked, broken, or missing.

Color: Black. Size: Large. 14,000 BTU.

Color: Black. This large cap measures about 3 inches in diameter. For gray order WP3191905. For the small cap order WP3191898.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

Color: Black.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

Rubber bumper. Color: Grey.

Color: Black. This is the right side endcap. For left side use 9781884FB.

Color: Black. This is the left side endcap. For right side use 9781885FB.

Color: Black. Other colors: For biscuit use 9753910CC, for white use WP9753910CW.

Clear glass backsplash panel for ranges. Replaces cracked, broken, or missing glass on control panel area. Designed for stainless steel models.

Door vent seal.

Mounting screw for securing components in compactors, cooktops, dishwashers, and ranges. Replace if screw is stripped, missing, or damaged.
