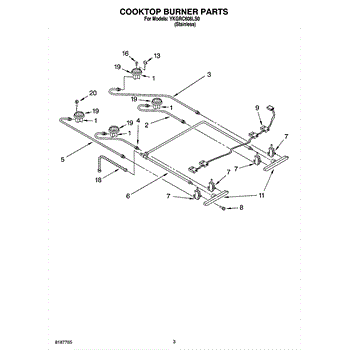

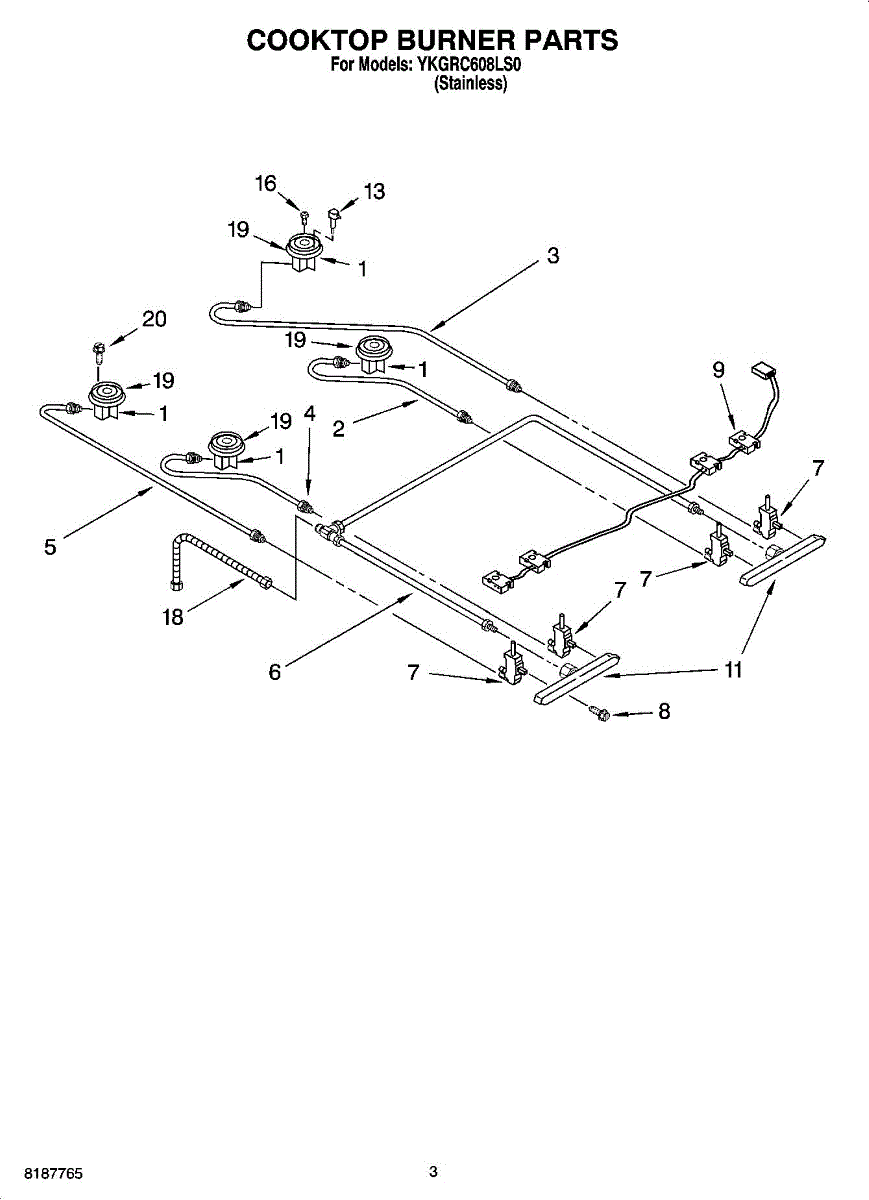

Parts for Whirlpool YKGRC608LS0: 02 - Cooktop Burner Parts

Includes ignitor and orifice. Size: Small. To order ignitor separately use WP9782116.

This orifice holder assembly secures and positions the gas orifice for a G4 burner, ensuring consistent gas flow to the burner for stable ignition and cooking. Designed to replace a worn or damaged holder and restore proper burner operation. What it does:

• Holds the burner orifice in the correct position so gas flows steadily to the burner head
• Helps maintain even flame distribution and reliable ignition
• Can resolve symptoms like weak or uneven flames, intermittent ignition, or burner misalignment
• Works as the mounting interface between the orifice and burner components

• Turn off gas supply and power to the appliance before beginning any service
• Handle components carefully; confirm proper seating and alignment of orifice and burner before testing
• After installation, check for gas leaks and proper ignition at low and high flame settings

This orifice holder secures the gas orifice in the burner assembly so the appliance meters fuel safely and reliably. It restores proper burner alignment and helps ensure consistent flame delivery for safe cooking performance. What it does:

• Holds the gas orifice in the correct position within the burner assembly
• Helps maintain a steady, properly directed flame for even heating
• Can reduce burner misalignment issues and intermittent flame problems
• Works with the valve/orifice assembly to support normal gas flow at the burner

• One orifice holder

• Designed for use with the original burner/orifice assembly; follow OEM diagram for placement
• Turn off gas supply and electricity before servicing; follow all safety precautions
• Use basic hand tools; handle orifice components carefully to avoid damage

Location: Right front.

Location: Right rear.

Location: Left front.

Location: Left rear.

Size: Small. Burner valve with red stem. 6,000 BTU.

Size: Large. Burner valve with black stem. 12,000 BTU.

Burner valve with plain stem. 14,000 BTU.

This spark switch and harness assembly replaces a worn or damaged ignition switch and its wiring to restore reliable sparking for gas burner ignition. It provides the switch contacts and connectorized wiring needed for the cooktop ignition circuit. What it does

• Sends the ignition spark signal when a burner control is turned, allowing the burner to light.
• Replaces a faulty switch or frayed harness that can prevent sparking or intermittent ignition.
• Helps eliminate symptoms such as no spark at the burner, weak or inconsistent ignition, or control knob ignition failure.
• Matches OEM connector and terminal layout for direct replacement where specified.

• Disconnect electrical power and shut off gas supply before starting repair; follow all safety precautions.
• Handle connectors and terminals carefully to avoid bending pins or damaging insulation.
• Basic hand tools are typically required; refer to your model's service instructions for panel removal steps.

The Spark Electrode is an OEM part for Whirlpool ranges. It is responsible for generating the spark that ignites the gas in the burners, allowing for efficient and reliable lighting of the stove. The spark electrode is located near the burner and produces a high-voltage spark to ignite the gas.

Causes of a bad spark electrode can include wear and tear over time, buildup of food debris or grease that can interfere with the spark, and damage from cleaning or handling. Electrical issues can also cause the electrode to fail.

Symptoms of a bad Spark Electrode include:

• The burner not igniting
• Weak or no spark
• Clicking sound without ignition
• The burner lighting inconsistently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Burner orifice for small base. 6,000 BTU.

Burner orifice for large base. 12 BTU.

Location: Left front. 14,000 BTU.

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Size: Small

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: Large.

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.
