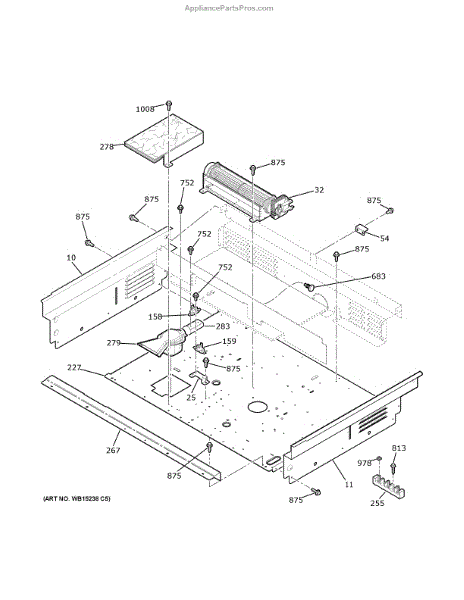

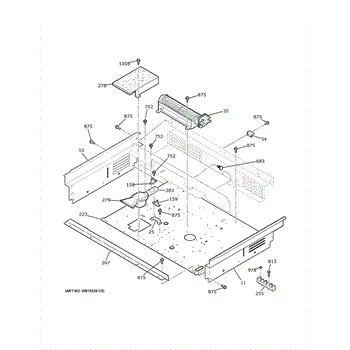

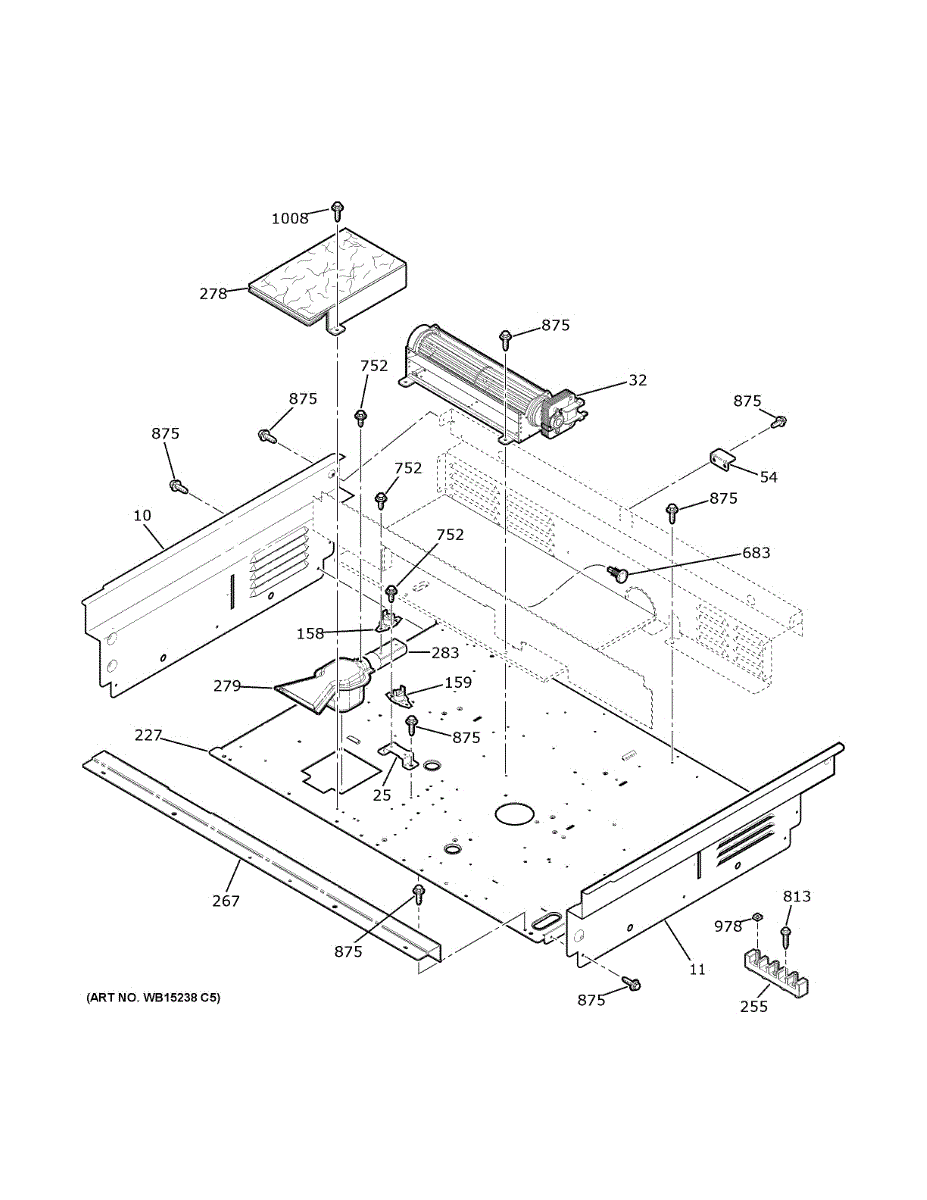

Parts for Ge JD630DT2BB: Cooling Fan Parts

This blower assembly circulates air through the appliance to support drying and venting, restoring proper airflow for consistent performance. It replaces a worn or damaged fan wheel and housing to reduce overheating and poor drying. What it does:

• Moves air through the appliance to aid drying and ventilation
• Restores airflow lost from cracked, warped, or broken blower wheel
• Helps eliminate overheating, long-dry times, or reduced airflow
• Works with the motor and ducting to maintain proper exhaust flow

• One blower assembly

• Disconnect power before servicing to avoid shock or injury
• Inspect motor shaft and mounting before installing; replace any damaged hardware
• Ensure blower is oriented and secured per manufacturer alignment to prevent noise or imbalance
• Verify clear, unrestricted ducting after installation for proper performance

This surface element limiter switch monitors burner temperature and opens the circuit if it overheats. It helps regulate element cycling for consistent cooking performance and, on many models, feeds the hot-surface indicator light.

• Monitors the surface element's temperature and interrupts power if overheating is detected
• Helps regulate element cycling to maintain safe operating temperatures
• Interfaces with the hot-surface indicator light on many models
• Common symptoms of a failed limiter: surface element won't heat, cycles off too soon, uneven heating, or hot-surface light stuck on or off

• Disconnect power at the breaker before servicing
• Access and mounting vary by model; typically installed at the surface element beneath the cooktop
• Transfer wires one at a time to the matching terminals; ensure snug connections
• Reinstall so the sensor face/clip contacts the element or bracket as originally positioned to ensure proper temperature sensing

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged
