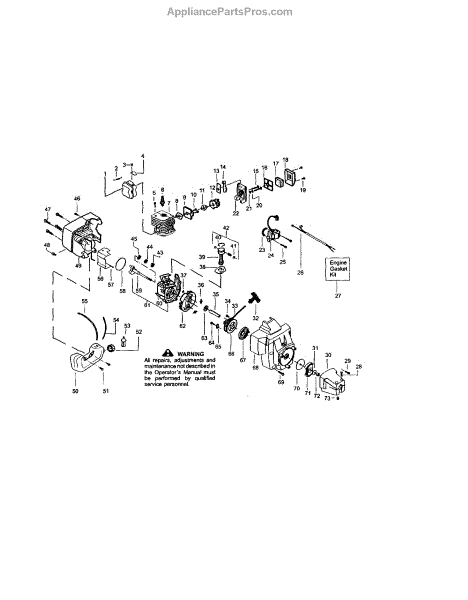

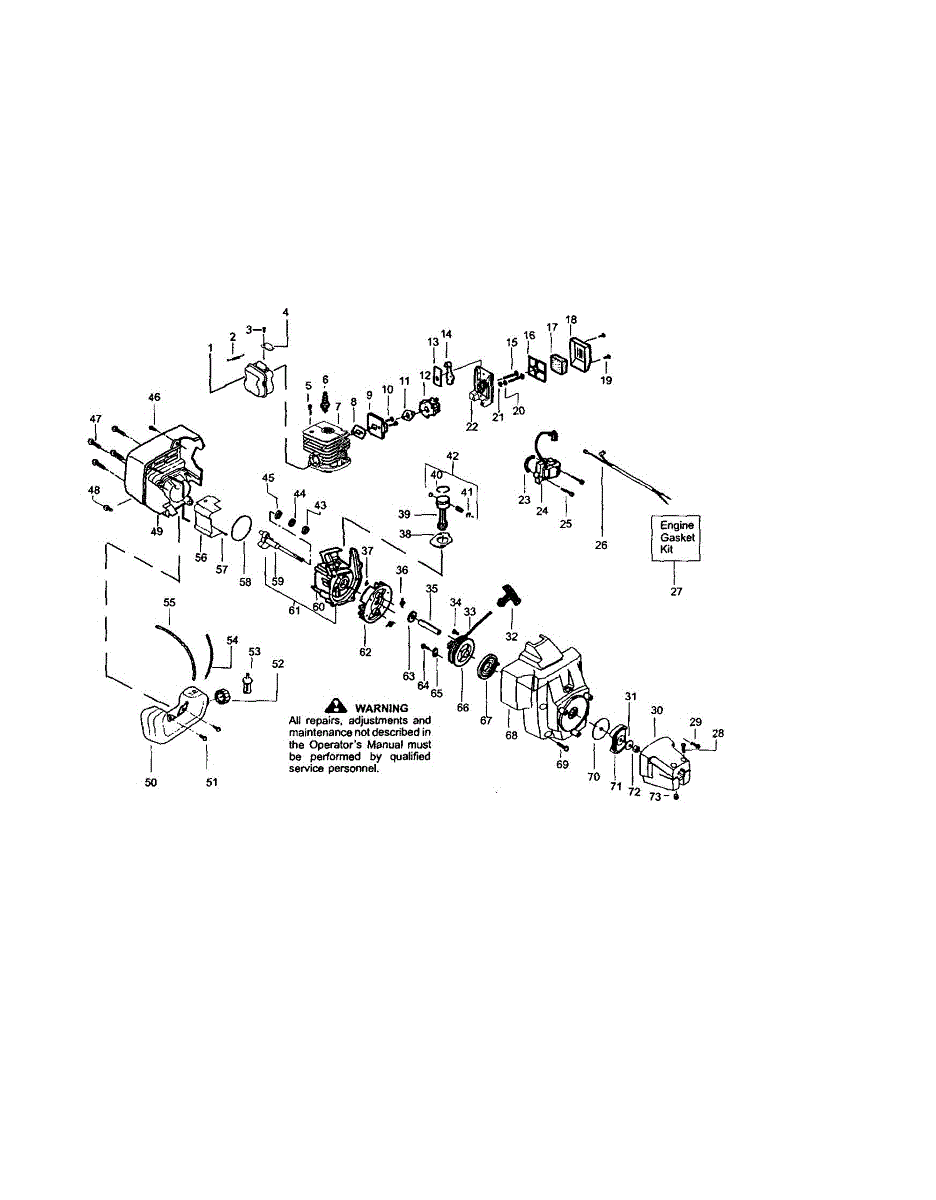

Parts for Craftsman 358745191: Cylinder / Crankcase Parts

This muffler spring is used on a variety of lawn and garden equipment, such as blowers and trimmers. It is made of durable metal and is tasked with ensuring the muffler is held in place while cutting down on vibration when using machinery. Over time, the muffler spring can become damaged or even break. When this occurs, the muffler will no longer be held in a stable position. It can also create additional vibration and be harder to use the lawn equipment.Inspecting the muffler spring can give insight into whether it is broken or damaged and if it will need to be replaced. Remove the shroud that covers up the muffler and spring to get a good look at it. If it's dirty, it may need to be cleaned. A muffler spring with damage should be replaced. Disassemble the unit to gain access to the spring so the new part can be placed.This muffler spring is a genuine OEM replacement part sourced directly from the manufacturer. It is sold as an individual component. The part can be used with string trimmers, edgers, leaf blowers, and hedge trimmers manufactured by Poulan, Craftsman, Husqvarna, and Weed Eater. This part is sold individually.

This OEMspark arrestor kit includes all the parts needed to replace the spark arrestor. The spark arrestor is a device that prevents the emission of hot exhaust, hot particles, and hot debris (that could be flammable) from being expelled from an internal combustion engine.The spark arrestor contains a screen that may become clogged through normal use. Common signs that the spark arrestor screen may be clogged are a lack of power during use, poor acceleration, and engine misfires. Carbon may build up on the screen, which causes these problems. The operator may be tempted to try cleaning the screen, but it is not recommended; the failed part needs to be replaced.This part is a genuine Husqvarna part and is an OEM part sourced directly from the manufacturer and it is sold individually. It is used on other Husqvarna produced hedge trimmers, weed whackers, lawnmowers, chainsaws, snow throwers, power cutters, and leaf blowers manufactured by Craftsman, Poulan, Poulan Pro, Weedeater, AYP, Jonsered, McCulloch, and RedMax.

This gasket kit features replacement gaskets for use in a range of gas-powered handheld lawn and garden machines. The kit includes a range of O-rings, seals, and gaskets used as a means to provide tight seals between elements of the engine to prevent leaks from air, fuel, oil, and so forth. Even durable gaskets such as those found in engines will start to wear down over time. They can start to crack and break, and sometimes they will shrink. When this happens, they no longer provide a tight seal and will need to be replaced. It is recommended that the gaskets and seals are replaced whenever the owner is servicing their small engine. This will ensure a proper seal when the engine is reassembled. This gasket kit has genuine OEM parts to ensure a proper fit and a tight seal. The kit is sold individually and works with many models of string trimmer and edger. Compatible brands include Craftsman, Husqvarna, Weed Eater, and Poulan.

An ignition module works in conjunction with the flywheel to create an electric current. It sends the voltage to the spark plug at a precise time to ignite the fuel and air mixture in the cylinder. An ignition module does not have moving components, but exposure to heat can cause damage over time. There are several warning signs that the ignition module has failed. The most common ignition module related problem is engine sputtering. If the damage is severe, it may cause total engine start failure. This is an original Husqvarna ignition module replacement. This part is compatible with string trimmers, pole pruners, hedge trimmers, and leaf blowers from Craftsman, Poulan Pro, Weed Eater, and Poulan. It is sold individually. Other components are not included in this ignition module replacement.

This genuine Husqvarna rope kit can be used as a replacement part for the small engine of string trimmers. A rope kit works alongside the starter handle to facilitate the recoil starting mechanism in a string trimmer. This is the mechanism by which the string trimmer is turned on; the rope is looped around a pulley and the rope is pulled and coiled off of the pulley in order to power the engine.A rope might have to be replaced by this rope kit if it shows visible signs of wear and tear that affects its ability to start the engine. If a rope looks like it is fraying or has worn out over time from exposure or general long-term usage, the rope should be removed and replaced with this genuine OEM replacement part before using the string trimmer again. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer. It is sold individually. This rope kit is compatible with the following brands: Husqvarna, Poulan, and Weed Eater.

A piston ring is a component located between a piston and a cylinder and helps the engine operate correctly. This component maintains gas compression between the cylinder wall and piston, makes lubricating oil to prevent scuffing, transfers heat from the crown of the piston to the cylinder, and prevents the piston from hitting the cylinder wall. There are several signs that a piston ring needs to be replaced. Excessive smoke may come out of the engine, oil may be used more rapidly, and your equipment might have a decreased performance without the power it used to have. If the engine is still in good shape, but the rings have lost their tension, replacing the piston ring is the best solution. Inspecting the cylinder for wear is also important since damaged piston rings can lead to cylinder wear. This piston ring is a genuine OEM product directly from the manufacturer. It comes as an individual part. It can be used on hedge trimmer, leaf blowers, and trimmers from Husqvarna, Weed Eater, and Poulan. Several tools, including a screwdriver and wrenches, might be required to install the replacement part.

This is a genuine outer bearing replacement for use on select models of outdoor lawn and garden equipment. The outer bearing is installed on the crankshaft and helps create a flexible joint for the various components to move against. This bearing is made of durable metal material, but over time it can become worn and damaged. It may also come loose or get lost in the process of other repairs. In any case, a faulty bearing will need an immediate and original replacement. Wear gloves and allow the engine to cool completely before beginning any repairs. Be sure to take the crankshaft components apart carefully to access the bearing so that they can be reassembled properly. Bearings should also be lubricated when installed.This is an OEM part that is manufactured to exact standards. It is made by Craftsman and can be used in machines from Weed Eater, Poulan, and Craftsman. This bearing can be used in compatible blowers, edgers, trimmers, pruners, and hedge trimmers. It is sold as an individual unit and there is no additional hardware included.

This replacement part is a crankshaft seal. This is a genuine replacement part made by Husqvarna. This part is commonly found in line trimmers or edgers. This seal is found towards the front of the engine and is responsible for sealing the area so that there are no leaks during use. A new crankshaft seal might be needed if the user notices there are leaks coming from the engine. This can be due to the rubber on the seal being stripped down and no longer able to function properly. Wear work gloves when completing this repair, as this part is typically close to the engine and could cause injury. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This is a fuel tank assembly that will safely house the fuel needed in a gasoline-powered weed whacker or trimmer. It is essential to ensure that this OEM part works with the specific make and model of trimmer. If needed, it takes only a screwdriver, pliers, and wrench to do the replacement. It starts by removing the bracket off the engine that connects to the tank. Lines will have to be loosened to remove the original assembly. The new assembly slips into place, and all of the mounting hardware must be tightened to prevent fuel leaks. This ships as a full assembly. As an OEM part, it is made for use in Craftsman, Poulan, Weed Eater, and several other makes of trimmer. It includes the tank as well as the fuel lines and the filter (which must be replaced whenever the tank is replaced or when fuel is leaking). It is made of rubber and plastic and noted as an easy repair.

This retainer is a genuine Husqvarna part, sold individually. This retainer can be used as a replacement part in a string trimmer. The purpose of the retainer in a string trimmer is to affix the fuel tank to the fuel line so that the fuel for the appliance can be directed through the proper passageway and be delivered into the tank.The retainer in a string trimmer might need to be replaced if it is damaged to the point that it loosens from its spot or cannot maintain its placement. If this occurs, the fuel might not be able to be effectively delivered to the fuel tank, in which case the appliance might not function as usual. If the retainer is damaged or compromised, it should be removed and replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part, sourced directly from the manufacturer. It is sold individually. This retainer is compatible with the following outdoor appliance brands: Husqvarna, Weed Eater, Craftsman, and Poulan.

The Fuel Pick Up Assembly is an OEM part for Husqvarna outdoor power equipment, including chainsaws, trimmers, and blowers. This assembly is responsible for drawing fuel from the tank to the carburetor, ensuring the engine receives a steady supply of fuel for optimal performance.

Over time, the fuel pick up assembly can become clogged or damaged due to debris in the fuel, exposure to ethanol-blended gasoline, or regular wear and tear. If the fuel pick up assembly is compromised, it can lead to poor engine performance or difficulty starting the equipment.

Symptoms of a bad fuel pick up assembly include:

• Engine not starting or hard to start
• Engine stalling or running inconsistently
• Reduced power or performance
•  Visible damage or clogging in the fuel line

This OEM Husqvarna part ensures proper fuel delivery and compatibility with your outdoor power equipment.
