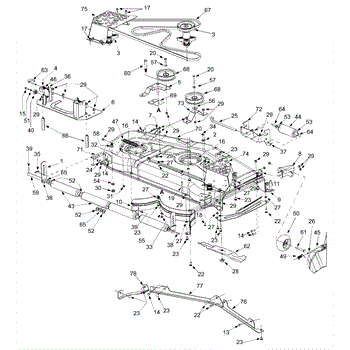

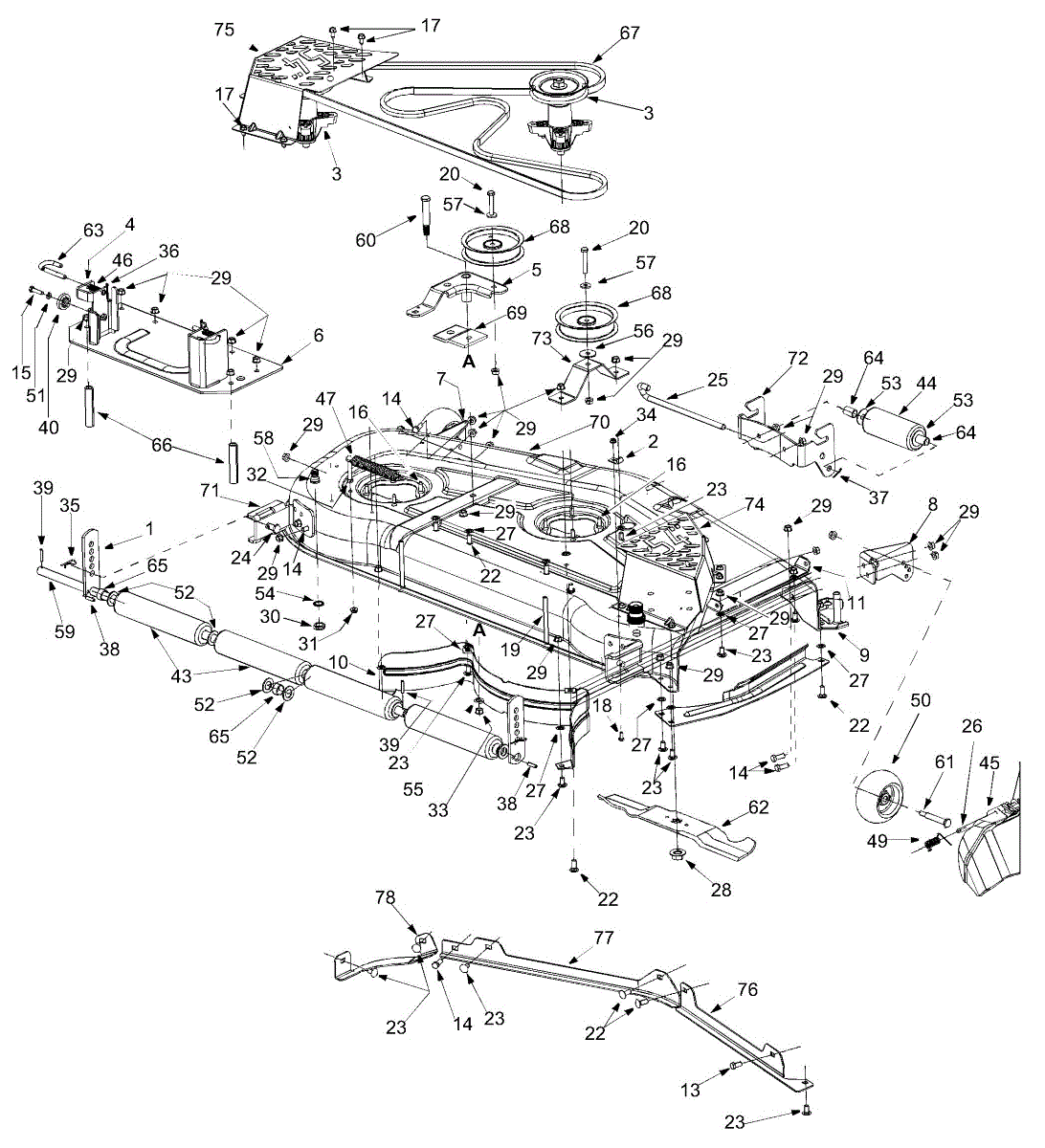

Parts for Huskee / Husky 14AR808K131 / 2003: Deck Assembly 54-Inch Parts

Spindle assembly for lawn tractor mower decks. Mounts to the deck and holds the blade pulley. Replace when cracked, bent, or worn bearings cause wobble.

Left-hand deck bracket assembly for lawn tractors and riding mowers. Mounts and supports the mower deck. Replace if bent, cracked, or broken.

Idler pulley guides and tensions the blade drive belt on lawn tractors. Replace if worn, cracked, or causing belt slippage. Verify fit with your model.

Chute deflector stop for lawn tractor grass catchers. Secures the discharge chute in position. Replace if cracked, broken, or missing for proper fit.

Inner rear baffle that directs grass clippings from under the mower deck to the discharge chute. Replace if cracked, bent, or damaged by debris impact.

Hex screw for lawn mowers and outdoor power equipment. Secures components and panels. Replace if stripped, rusted, or missing for proper assembly.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

Replace a broken, stripped, or missing hex bolt on your lawn mower or outdoor power equipment. Standard hardware for securing components.

Self-tapping screw for lawn mowers and garden equipment. Secures metal, wood, and plastic parts. Replace if stripped, missing, or corroded.

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

Versatile bolt for lawn tractors and mowers. Secures various components throughout the machine. Replace when damaged, stripped, or missing.

Carriage bolt for riding mowers and lawn tractors. Secures deck components and structural parts. Replace if bolt is stripped, broken, or missing.

Metal clevis pin secures parts on lawn tractors and riding mowers. Replace if bent, worn, or missing to restore proper attachment and connection.

Deck roller pin serves as the axle for the front mower deck roller. Replace if bent, worn, or causing uneven deck movement. Verify fit with your model.

Replace a broken, worn, or missing hinge pin on your lawn tractor or riding mower. This small metal pin secures moving parts together during operation.

Replace a missing, damaged, or worn push nut on your lawn tractor or riding mower. This fastener securely holds parts in place during operation.

Replaces a stripped, damaged, or missing 5/8" hex flange nut on your lawn mower or snow thrower. Secures blades and other components with integrated washer.

Hex lock nut secures bolted joints on outdoor lawn equipment. Replace if threads are stripped, nut is missing, or won't hold proper tension.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

This is a genuine 5/16 hex nut, a standard piece of hardware used to affix various components securely. This MTD nut is used in multiple applications and has several placement options depending on the model of the engine. Nuts can become stripped or worn over time. In some cases, the screws they are attached to may become stripped, which might require a replacement of both. A wrench is required to complete the replacement. This hex nut is designed to work with several brands that feature MTD engines, including RYOBI, Yard Machines, Yard-Man, MTD, Troy-Bilt, Husky, Bolens, and Cub Cadet. There are hundreds of machines that use this nut, including tractors, lawnmowers, blowers, cultivators, and snowblowers. This nut is sold individually; purchase additional parts as necessary.

Replacement hex nut for lawn mowers, snowblowers, and outdoor power equipment. Used as a fastening component throughout the machine. Replace if missing.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

Click pins are used in various lawn equipment machines to hold the wheels on. For larger riding lawn mowers, click pins are only used on the smaller front wheels. The click pin penetrates through the axle spindle to hold the tire in place. The part can get lost, damaged, or wear out with regular use. It's also possible to misplace the click pin when changing a tire because it has to be removed first before working on the wheel. A missing, damaged, or worn click pin must be replaced.Click pins are very easy to replace with only a pair of pliers. Wear gloves when making the repair. Start by pulling out the old click pin from its location with the pliers. Insert the new click pin back into the hole located in the spindle.This click pin is a genuine OEM replacement part. It is made with durable, high-quality metal. It is supplied by the manufacturer. It is compatible with both MTD and Murray brands. The equipment the click pin can be used with includes lawn tractors, lawn machines, and other lawn equipment. It is sold as an individual unit.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

Deck height adjustment gear for lawn tractors and riding mowers. Replaces broken or worn gears that control cutting deck position and leveling.

Nozzle adapter for lawn tractors and riding mowers. Connects hoses or tubes in the fuel or deck wash system. Replace if cracked, stripped, or missing.

Mower deck roller for lawn tractors and garden tractors. Supports deck movement and reduces friction. Replace if worn, cracked, or damaged bearings.

Front deck roller mounts to the underside of your mower deck to maintain proper cutting height. Replace if damaged, cracked, or missing for level cutting.

Deflector chute for lawn tractors and riding mowers. Mounts to the mower deck to direct grass clippings. Replace if cracked, punctured, or broken.

Compression spring for lawn mowers and outdoor power equipment. Replaces broken, worn, or missing springs. Essential hardware for proper operation.

Extension spring for riding mowers and lawn tractors. Replaces worn, broken, or missing springs in various linkage and control systems. Direct fit part.

Deck won't stay up or is hard to raise? This lift assist spring restores smooth mower deck operation. Quick DIY fix for most lawn tractors.

This torsion spring is a genuine MTD part. It is a replacement part for lawn tractors, garden tractors, pro-turf riders, and lawn mowers.On these machines, the torsion spring exerts torque. They create tension by countering the force created by parts they are connected to on either end. This is an important function for the engine.This torsion spring is a genuine OEM part sourced directly from the manufacturer. It is sold individually. It is designed to be compatible with machines made by Husky, Cub Cadet, MTD, Troy-Bilt, Yard Man, and White Outdoor. It also replaces several obsolete parts, numbers: 01000388, 732-3070 and 932-3070.

Deck wheel kit for lawn mowers and tractors. Replaces cracked, broken, or worn deck wheels. Includes mounting hardware for easy installation.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Lock washer prevents fasteners from loosening due to vibration in lawn mowers, snowblowers, and outdoor power equipment. Simple replacement part.

Small metal washer that secures parts on lawn tractors and riding mowers. Replace if worn, cracked, or missing to properly fasten components together.

This is a replacement isomount washer that works with a range of lawn and garden equipment. The flat metal washer can be used to attach to the idler arm bracket in certain machines. Washers are beneficial for ensuring there is a tight, proper connection between various pieces in a machine. They can also help to protect the surface of the connected parts.Washers are made to last, but they can still wear down over time. The metal could start to corrode, and the washer might break. It could also become bent. there is also the risk of losing a washer when working on other parts of the machine. They should be replaced when needed. Replacement is simple and will often require a wrench.The replacement washer can be used with models of lawn and garden tools such as snow blowers, lawnmowers, and lawn tractors from MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky. It is a genuine OEM replacement part from the manufacturer. It is sold individually. Owners might want to buy several to have available.

Deck wash nozzle for lawn mowers and tractors. Connects to your garden hose for easy underside deck cleaning. Replace if cracked, broken, or missing.

Roller shaft for lawn tractors and garden equipment. Replaces worn, bent, or damaged shafts in roller assemblies. Essential for deck or attachment operation.

Shield mounting screw for lawn tractors and garden tractors. Replaces damaged, stripped, or missing screws that secure protective shields and covers.

Shoulder bolt for riding mowers and lawn tractors. Used as an axle for wheels and deck components. Replace if bent, worn, or stripped from regular use.

Deck release pin secures the mower deck to the tractor frame. Replace if bent, broken, or missing to properly attach and support your cutting deck assembly.

Hardware spacer for lawn mowers. Installs on shafts to create proper gaps between connections. Replace if cracked, damaged, or missing for correct fit.

Flat idler pulley guides and maintains proper belt tension on lawn tractors. Replace if belt slips, squeals, or shows wear. Verify fit with your model.

Right-hand spindle cover for lawn tractors and riding mowers. Protects the blade spindle assembly from debris. Replace if cracked, broken, or missing.

Left-hand spindle cover for garden tractor mower decks. Protects the spindle assembly from debris and damage. Replace if cracked, broken, or missing.

This replacement part is a deck skirt. This is a genuine replacement part made by MTD. This deck skirt is often attached to the back of certain lawn mowers to prevent the wheels and other parts from becoming clogged with mulch and other debris. A new deck skirt might be needed if the current one is damaged or missing. If the deck skirt is no longer attached it is recommended that it be replaced as soon as possible. The deck skirt is able to prevent grass clippings and small debris from clogging the wheels and other areas under the lawn mower. Be sure the engine is completely powered down before replacing this part. This part is sold individually and is sourced directly from the manufacturer for long-lasting use. This part is a genuine OEM replacement part to ensure proper fit.

Left-hand deck skirt extension for lawn and garden tractors. Replaces cracked, broken, or missing skirt panels that protect the mower deck edge.
